The system Vietnamese contractors call "star lock" or "star scaffold" — giàn giáo nêm / khóa nêm.
Wedge lock scaffolding is a modular access system in which horizontal ledgers and diagonal braces lock into pre-welded rosettes on the vertical standard using a hammer-driven wedge. It is the system many Vietnamese contractors call the “star lock” or “star scaffold” because of the star-shaped node plate on the vertical. The same system is widely specified in Australia, the Middle East and Southeast Asia.
Compared with cuplock (which needs a spanner on every node) and ringlock (which uses a separate wedge pin per connection), wedge lock is favoured for speed of erection — a full bay can be locked with just a hammer — and for rigidity, making it a common choice for formwork support and façade access on Vietnamese high-rise and industrial projects.
Factory footage of ringlock and wedge lock load capacity testing at our Tianjin plant — EN 12810 certified batch testing before export.
Load-tested per EN 12810 / EN 12811 — Watch on YouTube · Get a Quote on WhatsApp
Hammer-locked connections — no spanners, no loose pins. A 4-man crew erects 150-200 m² per day.
Bay dimensions and load tables matched to TCVN 6055 / TCVN 6056 practice.
EN ISO 1461 hot-dip galvanizing, 55-85 µm, resists Vietnam’s humidity and coastal salt.
| Component | Standard Size | Material |
|---|---|---|

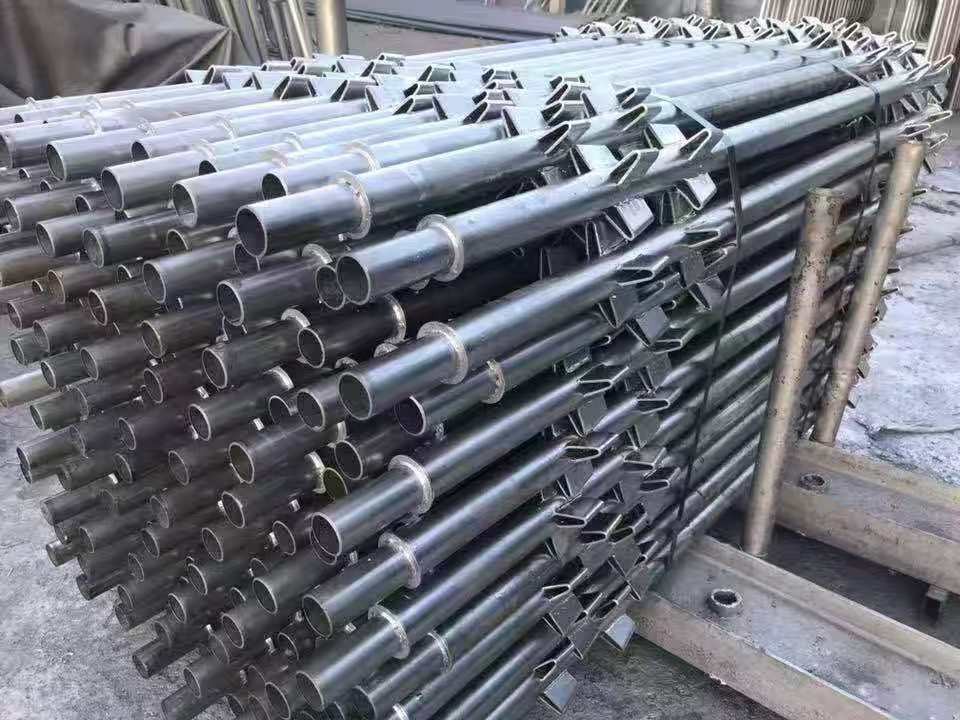

| Vertical standard | 48.3mm OD × 3.2mm, 0.5-3.0m | S355 (Q355) steel |
| Rosette (node) spacing | 500mm (std), 300mm (heavy-duty) | Forged plate |
| Ledger | 48.3mm OD, 0.6-2.5m | S355 wedge blade ends |
| Diagonal brace | Adjustable, 1.5-2.5m bay | S355 flat blade ends |
| Adjustable base jack | φ38/34mm, 300-600mm | Q235 spindle, HDG nut |
| Coating | 55-85 µm zinc | EN ISO 1461 |
| Working load | up to 6.0 kN/m² | EN 12810 tested |

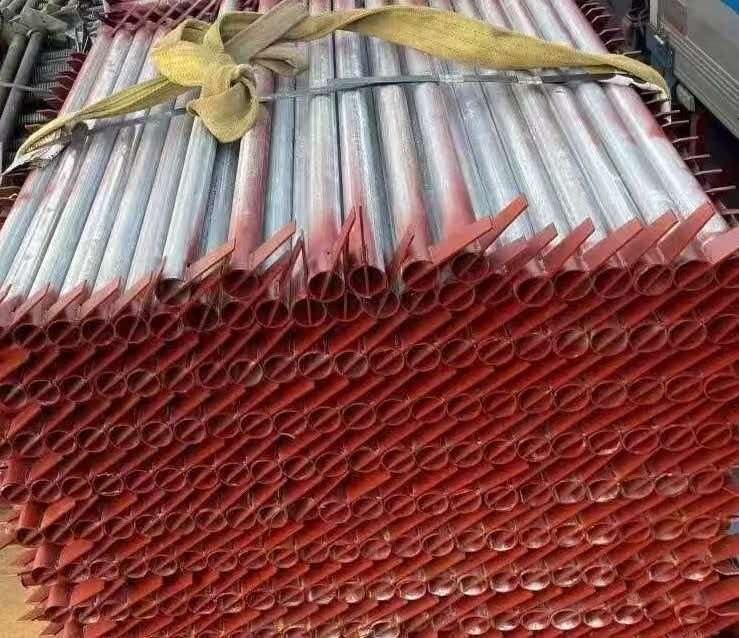

Sino East Steel Group ships wedge lock scaffolding to Vietnam regularly — to Ho Chi Minh City (Cat Lai port) and Hai Phong mainly, CIF/CFR terms available. Transit from Tianjin (Xingang) is typically 10-14 days to HCMC, 8-12 days to Hai Phong. Full container loads (FCL 20GP / 40HQ) and LCL consolidation arranged with full export documentation.

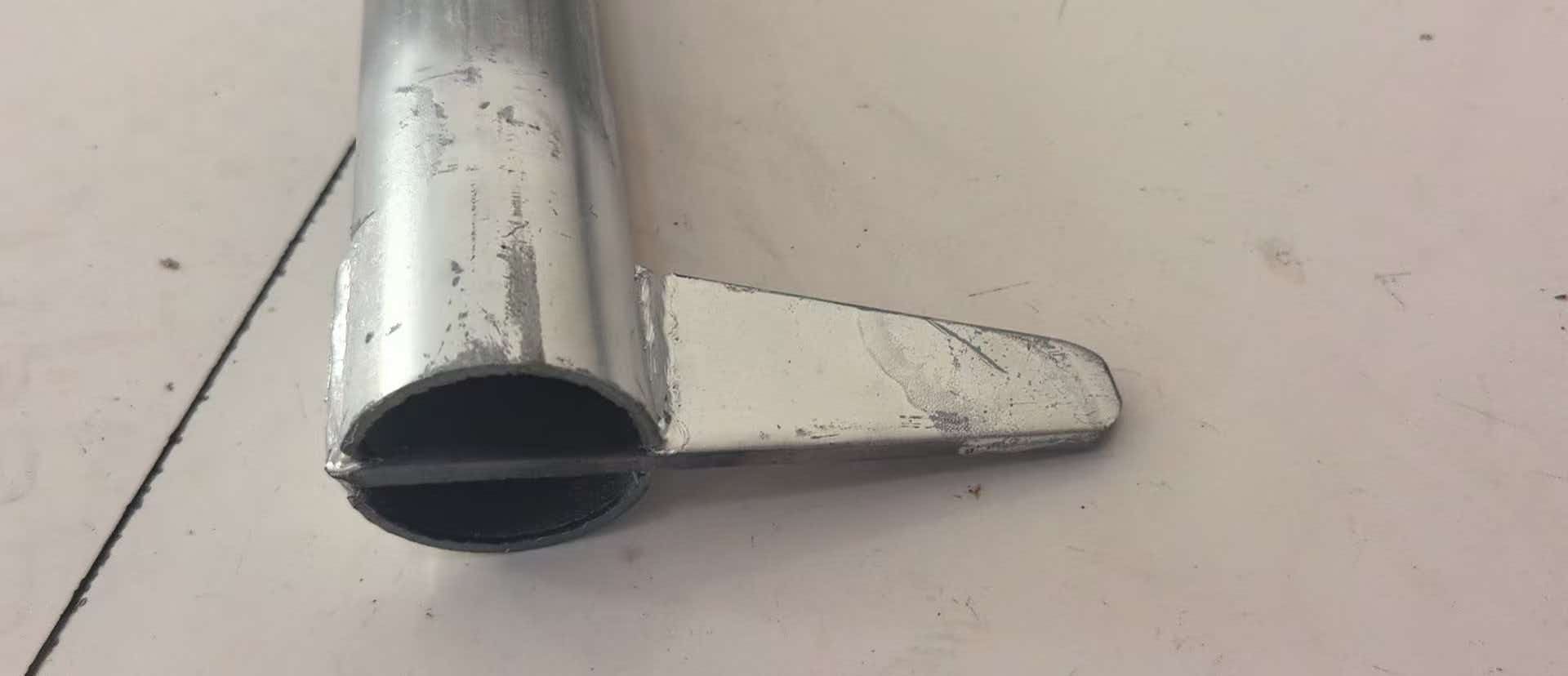

No. Wedge lock uses a wedge forged on the ledger end that locks into a rosette slot; ringlock uses a separate wedge pin. The parts are not interchangeable.
"Wedge scaffolding" in Vietnamese — the standard local name for wedge lock systems. "Khóa nêm" adds "lock".
Yes — used across Vietnam under TCVN 6055/6056 practice. EN 12810 certified load tables available on request.
Factory-direct pricing from 1 × 40HQ (≈26 tons); LCL for samples. Production 20-30 days, shipping 10-14 days to HCMC.
Send your bay sizes, quantity and destination port — Ho Chi Minh City, Hai Phong, Da Nang or elsewhere. Free component-mix calculation included.
Get Quote on WhatsAppTell us your bay sizes, quantity, destination port (HCMC / Hai Phong / others) — a sales engineer replies within 24 hours.
