High-Quality Adjustable Steel Props for Construction

Sino East Steel Group is a leading steel prop manufacturer and supplier based in Tianjin, China. We specialize in producing adjustable steel props, also known as acrow props or shoring props, used to provide temporary vertical support to ceilings, walls, slabs, beams and columns during construction and concrete formwork operations.

Our steel props are fabricated from high-quality Q235 or Q345 carbon steel. Each prop consists of a threaded inner tube, outer tube, adjustable collar, welded top plate and bottom plate, allowing fast height adjustment and reliable load-bearing performance. Surface finishes include hot-dip galvanizing, pre-galvanized and powder-coated paint options to meet different project environments and corrosion-resistance requirements.

With a 65,000 m² production facility and in-house testing laboratory, we control every stage from raw material inspection to final packaging. We supply steel props to construction companies, rental fleets, scaffolding wholesalers and formwork contractors across Asia, Europe, the Middle East, Africa and the Americas.

🔒

CE EN1090 Certified

European structural standards

⚙️

ISO 3834 Welding

Fusion welding quality

🛡️

3-Month Warranty

Full product coverage

🚢

Door-to-Door Delivery

Global logistics network

Product Gallery

Steel Props – Product Photos

Browse our steel prop product range. All photos are from our own factory and warehouse. Click any image to enlarge.

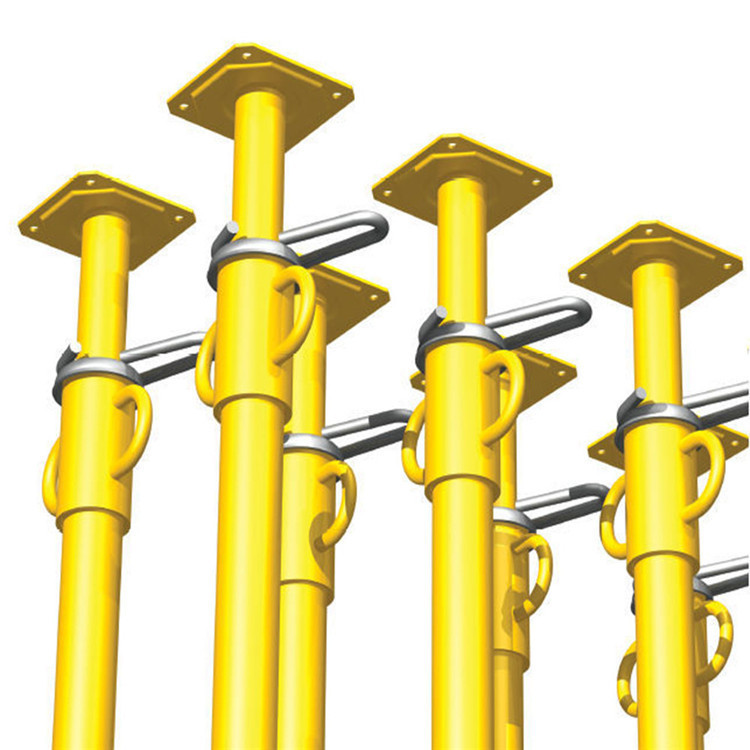

Adjustable Steel Prop

U-head, painted finish

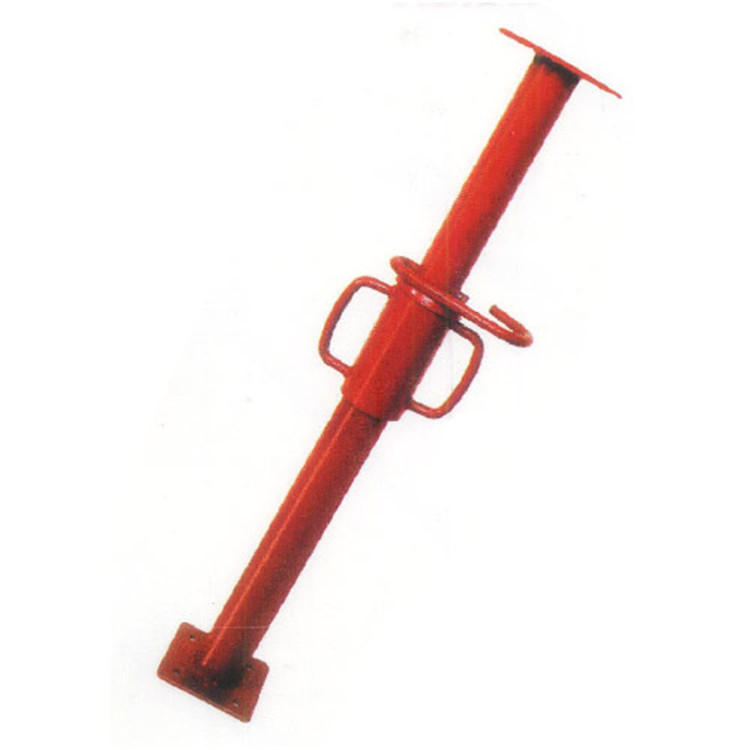

Heavy Duty Acrow Prop

For high-load formwork

Scaffolding Steel Prop

Flat head plate

Slab Shoring Prop

Extended adjustment range

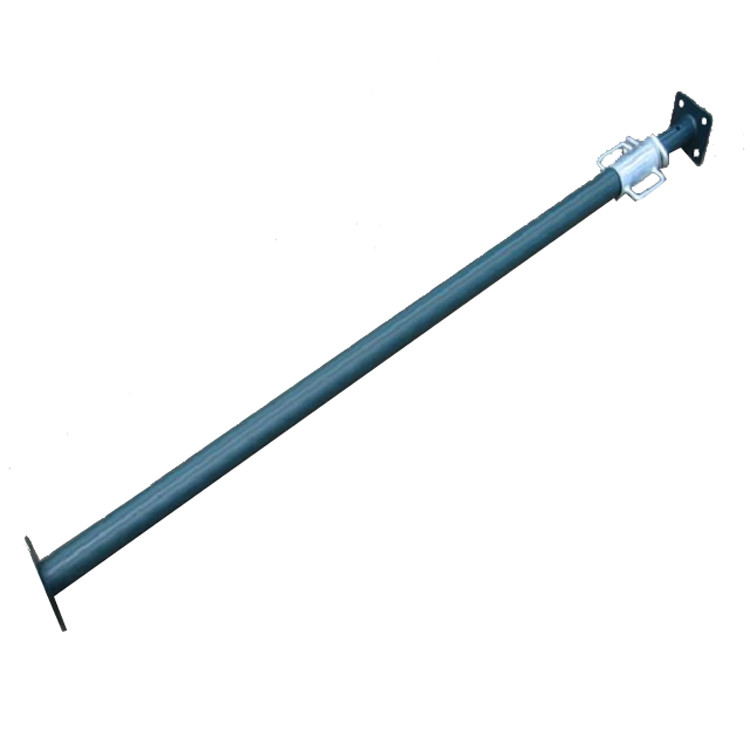

Galvanized Acrow Props

Corrosion resistant

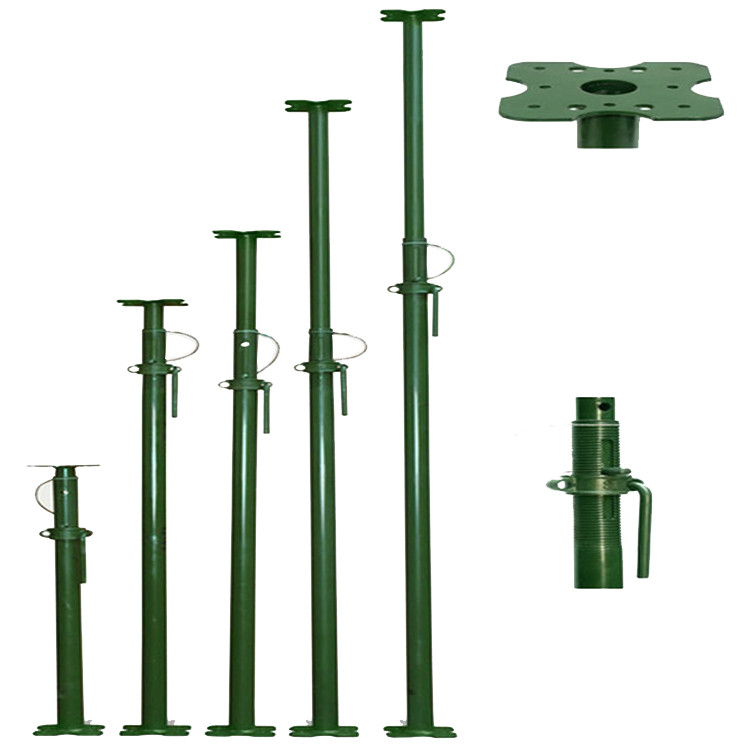

Painted Acrow Props

Custom color coating

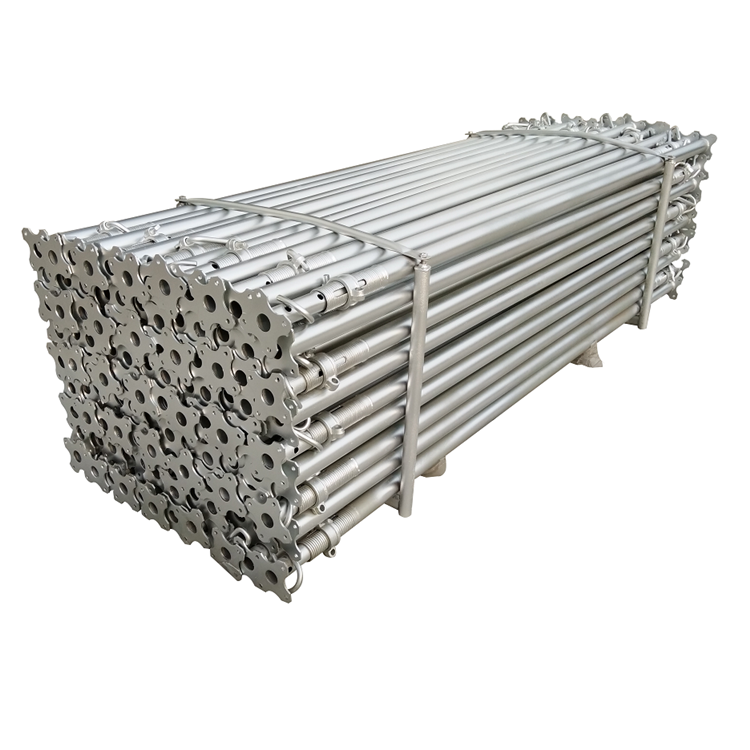

Steel Jack Posts

Bulk packed

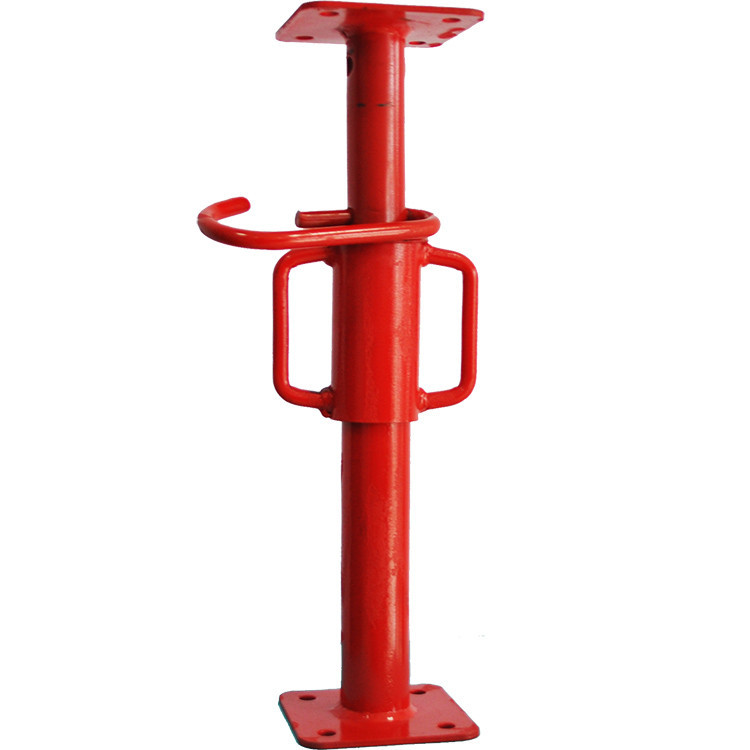

Light Duty Steel Prop

Residential formwork

Scaffold Prop

Adjustable height

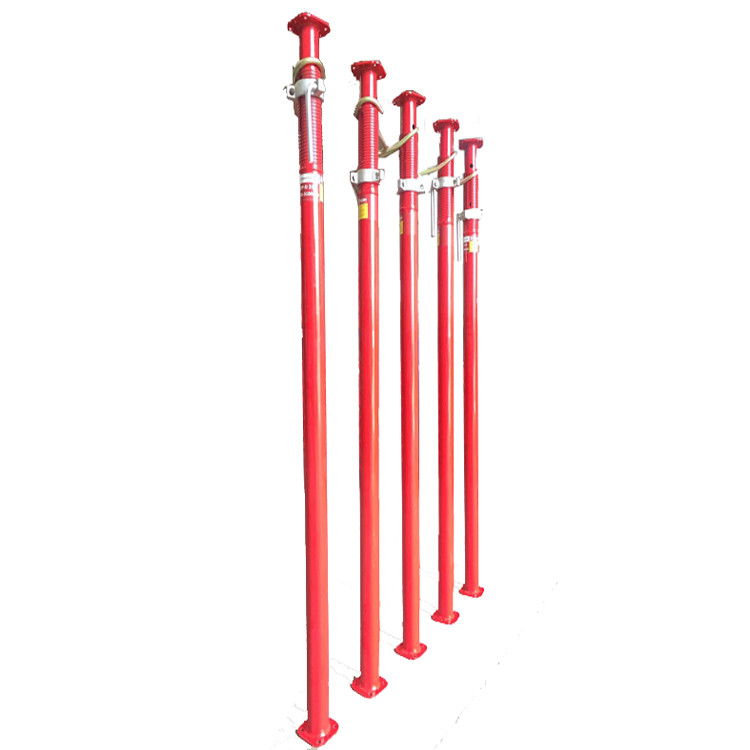

Scaffold Prop Type 1

Standard duty

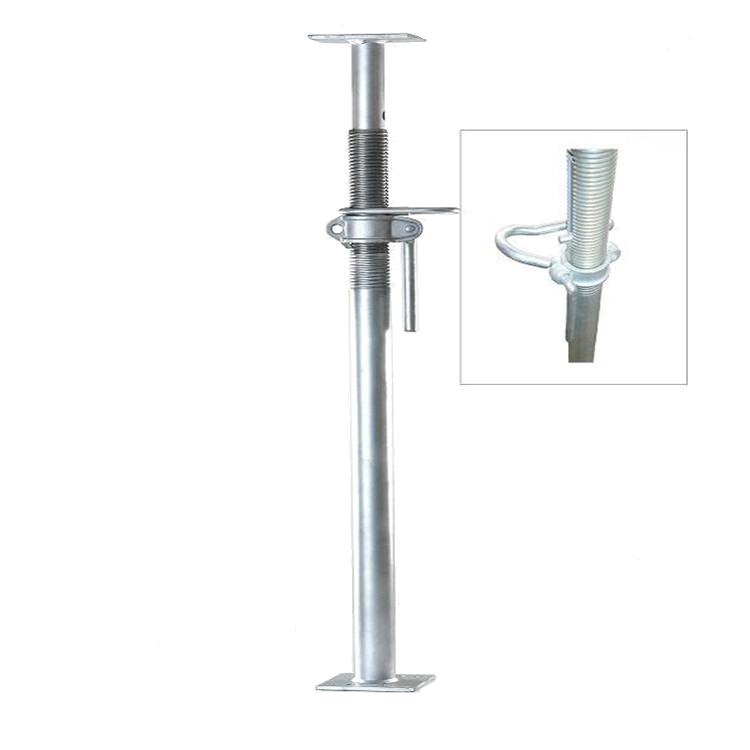

Scaffold Prop Type 3

Heavy duty thread

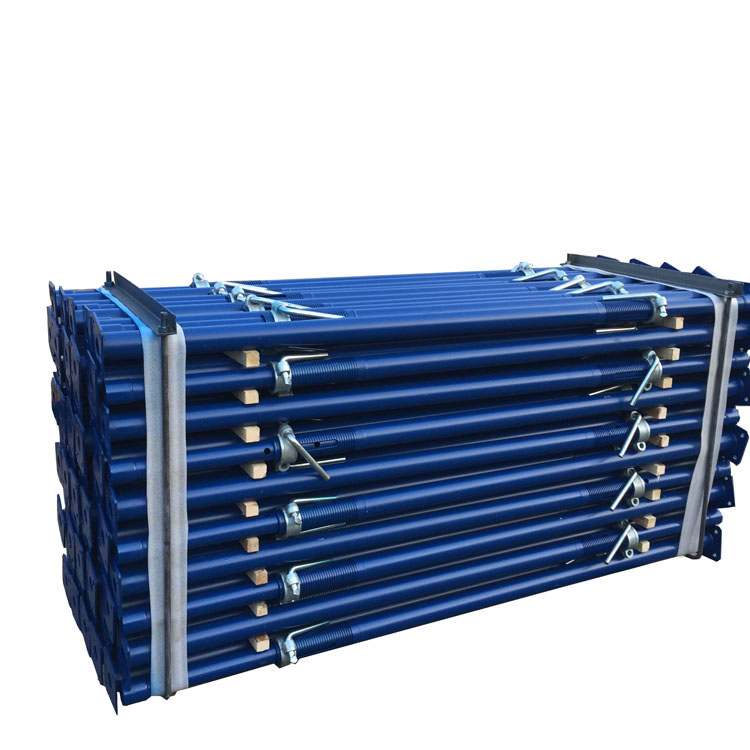

Scaffolding Steel Prop Type 3

High load capacity

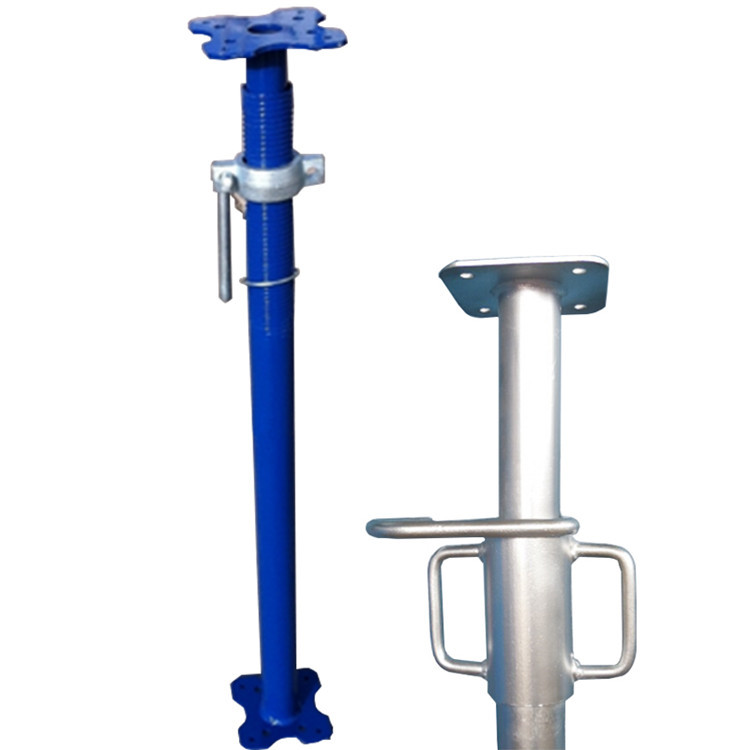

Galvanized Steel Prop

Long service life

Heavy Duty Steel Prop – Standard Range
Material	Q235 / Q345 carbon steel
Outer tube diameter	48.3 mm (48mm) or 60.0 mm
Inner tube diameter	40.0 mm (for 48mm props) or 48.3 mm (for 60mm props)
Wall thickness	1.8 mm, 2.0 mm, 2.2 mm, 2.5 mm, 3.0 mm
Adjustment range	1.6–2.9 m, 2.0–3.5 m, 2.2–4.0 m, 3.0–5.0 m, 3.5–6.0 m
Surface finish	Hot-dip galvanized / pre-galvanized / painted
Top plate	U-head 120×120 mm, flat plate 120×120 mm (custom sizes available)
Bottom plate	Flat plate 120×120 mm or 150×150 mm
Safe working load	Up to 45 kN (varies by size and extension)
Standards	EN 1065, BS 4074, EN 1090, ISO 3834
Packaging	Steel strapped bundles, packed by sea or container

🇹🇭 ค้ำยันเหล็กปรับระดับสำหรับประเทศไทย (Adjustable Steel Props / ค้ำยันเหล็ก)

Direct factory container supply to Laem Chabang & Bangkok Port. Form E 0% Tariff certified, heavy-duty Q235B/Q345B steel, tested to EN 1065 / BS 4074 standards.

💬 Chat on LINE (ID: 8618622088833) 📱 WhatsApp Quote

Adjustable Steel Props & Acrow Props Master Material List (ค้ำยันเหล็ก)

Sino East Steel Group manufactures certified heavy-duty Acrow Props, Middle-East Light-Duty Props, and European Heavy-Duty DIN EN 1065 Class D/E Props. Designed with cold-rolled rolled threads, cast iron handle nuts, and high-tensile G-pins for slab shoring, wall formwork bracing, and temporary construction support.

1. Master Acrow & Adjustable Steel Prop Specification Breakdown

สเปกเสาค้ำยัน (Prop Model)	ระยะปรับระดับ (Adjustment Range)	ขนาดท่อใน / ท่อนอก (Inner / Outer Tube OD × T)	แผ่นฐานบน-ล่าง (Top / Base Plate)	น้ำหนักสุทธิ (Unit Weight)	รหัสสินค้า (Part Code)
Acrow Prop Size 0 (เสาค้ำยันเบอร์ 0)	1.05 m – 1.83 m (3.4 ft – 6.0 ft)	Inner: Ø48.3 × 2.0/2.5 mm \| Outer: Ø60.3 × 2.0/2.5 mm	120 × 120 × 5.0 mm Flat / Flower Plate	11.20 – 12.80 kg (24.7 – 28.2 lbs)	APS-SZ0
Acrow Prop Size 1 (เสาค้ำยันเบอร์ 1)	1.60 m – 2.80 m (5.2 ft – 9.2 ft)	Inner: Ø48.3 × 2.0/2.5 mm \| Outer: Ø60.3 × 2.0/2.5 mm	120 × 120 × 5.0 mm with 4 bolt holes	14.50 – 16.50 kg (32.0 – 36.4 lbs)	APS-SZ1
Acrow Prop Size 2 (เสาค้ำยันเบอร์ 2 - ยอดนิยม)	1.98 m – 3.35 m (6.5 ft – 11.0 ft)	Inner: Ø48.3 × 2.0/2.5 mm \| Outer: Ø60.3 × 2.0/2.5 mm	120 × 120 × 5.0 mm / 150 × 150 × 6.0 mm	16.80 – 18.90 kg (37.0 – 41.7 lbs)	APS-SZ2
Acrow Prop Size 3 (เสาค้ำยันเบอร์ 3)	2.59 m – 3.96 m (8.5 ft – 13.0 ft)	Inner: Ø48.3 × 2.0/2.5 mm \| Outer: Ø60.3 × 2.0/2.5 mm	120 × 120 × 5.0 mm with heavy pin lock	19.20 – 21.80 kg (42.3 – 48.1 lbs)	APS-SZ3
Acrow Prop Size 4 (เสาค้ำยันเบอร์ 4 - เสาสูง)	3.20 m – 4.88 m (10.5 ft – 16.0 ft)	Inner: Ø48.3 × 2.5/3.0 mm \| Outer: Ø60.3 × 2.5/3.0 mm	150 × 150 × 6.0 mm Heavy-Duty Plate	23.50 – 26.20 kg (51.8 – 57.8 lbs)	APS-SZ4
Heavy-Duty Euro Prop (DIN EN 1065 Class D)	2.00 m – 3.50 m / 2.50 m – 4.00 m	Inner: Ø63.5 × 3.2 mm \| Outer: Ø76.0 × 3.2 mm	150 × 150 × 8.0 mm (Reinforced U-Head option)	26.50 – 34.00 kg (58.4 – 74.9 lbs)	EPD-2035 / EPD-2540

2. Safe Working Load (SWL) vs Extension Length Table (ความสามารถในการรับน้ำหนัก)

Calculated in accordance with BS 4074 and EN 1065 with a structural safety factor of 2.0:

รุ่นเสาค้ำยัน (Prop Model)	ระยะยึดต่ำสุด (Closed Length)	น้ำหนักปลอดภัยช่วงปิด (SWL at Min Length)	ระยะยึดสูงสุด (Extended Length)	น้ำหนักปลอดภัยช่วงกางสุด (SWL at Max Length)
Acrow Prop Size 0 (APS-SZ0)	1.05 m	35.0 kN (3.57 Tons)	1.83 m	30.0 kN (3.06 Tons)
Acrow Prop Size 1 (APS-SZ1)	1.60 m	32.0 kN (3.26 Tons)	2.80 m	22.0 kN (2.24 Tons)
Acrow Prop Size 2 (APS-SZ2)	1.98 m	30.0 kN (3.06 Tons)	3.35 m	18.5 kN (1.89 Tons)
Acrow Prop Size 3 (APS-SZ3)	2.59 m	26.0 kN (2.65 Tons)	3.96 m	14.5 kN (1.48 Tons)
Acrow Prop Size 4 (APS-SZ4)	3.20 m	20.0 kN (2.04 Tons)	4.88 m	10.5 kN (1.07 Tons)
Euro Prop Class D35 (EPD-2035)	2.00 m	45.0 kN (4.59 Tons)	3.50 m	30.0 kN (3.06 Tons)

Export Shipping & Palletizing to Laem Chabang & Bangkok Ports

All steel props are bundled into export steel stillages (50 pcs per bundle) wrapped in UV-resistant film with heavy-duty steel strapping.

ชุดอุปกรณ์เสาค้ำยัน (Prop Package)	ขนาดบรรจุต่อแพ็ก (Pallet Packaging)	จำนวนในตู้ 20GP (20GP Capacity)	จำนวนในตู้ 40HQ (40HQ Capacity)	น้ำหนักรวมสุทธิ (Net Weight)
Standard Size 2 Props (1.98–3.35m)	50 pcs per steel stillage pallet	1,200 – 1,400 Pieces	1,800 – 2,200 Pieces	Approx. 24.0 – 25.5 Metric Tons
Mixed Formwork Package (Props + Tripods + Forkhead)	Pre-palletized customized sets	800 Props + 400 Tripods + 400 Heads	1,500 Props + 800 Tripods + 800 Heads	Approx. 23.5 – 26.0 Metric Tons

📜 Form E ลดภาษี 0% สู่ท่าเรือแหลมฉบัง

บริการจัดทำเอกสาร Form E แท้จากกระทรวงพาณิชย์จีน ช่วยให้ผู้รับเหมาในกรุงเทพฯ และเขต EEC นำเข้าค้ำยันเหล็กโดยไม่ต้องเสียภาษีนำเข้า 0% (Save 10-15% cost).

🛡️ เกลียวรีดเย็นความแข็งแรงสูง (Rolled Threads)

เกลียวปลอกปรับระดับผ่านกรรมวิธีรีดเย็น (Cold-Rolled) ให้ความทนทานต่อแรงบิดและการกระแทกสูงกว่าเกลียวตัดทั่วไป ไม่รูด ไม่ติดขัด หมุนปรับระดับได้ลื่นไหล.

⚡ สลัก G-Pin ชุบสังกะสีหนาพิเศษ

สลักนิรภัย High-Tensile Steel ขนาด Ø14 mm / Ø16 mm พร้อมห่วงคล้องป้องกันการสูญหาย รองรับการใช้งานหมุนเวียนในไซต์งานก่อสร้างได้มากกว่า 5–10 ปี.

Product Range

Types of Steel Props We Manufacture

Choose the right steel prop type for your load, height and project environment requirements.

🏗️

Heavy Duty Steel Props

Designed for high-load concrete slab and beam support. Larger outer tube diameter and thicker wall provide maximum load capacity.

OD 60.0 mm / 48.3 mm options
Wall thickness 2.5–3.0 mm
Height range up to 6.0 m
Ideal for bridge and high-rise formwork

⚖️

Medium Duty Steel Props

The most versatile prop for general building and commercial construction. Balanced capacity, weight and cost.

OD 48.3 mm standard
Wall thickness 2.0–2.5 mm
Height range 1.6–4.0 m
Popular for slab and wall formwork

🪶

Light Duty Steel Props

Lightweight and economical for residential, repair and low-height applications. Easy to handle and transport.

OD 48.3 mm / 40.0 mm
Wall thickness 1.8–2.0 mm
Height range 1.2–3.0 m
Best for small-scale projects

🔩

Acrow Props

Australian and British standard acrow props with threaded inner tube and fine-pitch adjustment collar for precise height setting.

AS/NZS 3610 compatible
Fast height adjustment
Available galvanized or painted
Common sizes No.0 to No.4

🛡️

Galvanized Steel Props

Hot-dip galvanized inside and outside for maximum corrosion protection. Suitable for outdoor, humid and marine environments.

Zinc coating ≥ 60 μm
Long service life
Low maintenance cost
Ideal for rental fleets

🎨

Painted Steel Props

Cost-effective painted finish in standard red, yellow, blue or custom colors. Good for indoor and short-term projects.

Anti-rust primer + top coat
Custom color matching
Competitive pricing
Fast production turnaround

FAQ

Frequently Asked Questions About Steel Props

What is the difference between a steel prop and an acrow prop?

"Steel prop" is a general term for adjustable vertical support tubes. "Acrow prop" usually refers to props following British or Australian design standards with a threaded inner tube and fine adjustment collar. We manufacture both types and can match the standard required by your project.

What is the maximum load capacity of your steel props?

Load capacity depends on the prop size, wall thickness and extension height. Our heavy-duty 60mm props can reach up to 45 kN at minimum extension, while standard 48mm medium-duty props typically provide 20–35 kN. Contact us for a detailed load table for your chosen size.

Can you produce custom steel prop sizes?

Yes. We can customize tube diameter, wall thickness, adjustment range, top plate shape, bottom plate size, thread pitch, color and packaging. Send us your drawings or specifications and we will provide a quote and production schedule.

What surface finish do you recommend?

Hot-dip galvanizing is recommended for outdoor use, rental fleets and long-term projects because it provides the best corrosion resistance. Painted props are a cost-effective choice for indoor or short-term applications. Pre-galvanized props offer a balance between price and durability.

What is your minimum order quantity and delivery time?

Standard sizes are available from one 20-foot container. Production time is usually 15–25 days after order confirmation, depending on quantity and finish. We ship from Tianjin port to destinations worldwide by sea, rail or air according to your schedule.

Do your steel props meet international standards?

Yes. Our props are manufactured according to EN 1065, BS 4074, EN 1090 and ISO 3834 welding quality requirements. We can provide test reports, mill certificates and third-party inspection certificates on request.

Steel Prop Specifications

Specification	Detail
Available sizes	1.5 m – 5.0 m closed height, in 48×3.2 / 60×3.5 / 76×3.5 mm tube series
Adjustment range	Inner tube extends 400 – 800 mm per size
Load capacity	Light duty 10 – 30 kN; heavy duty 30 – 80 kN per prop (per size and extension)
Ends	Flat base plate, U-head fork, or both (double-ended)
Material	Q235/Q345 steel, hot-dip galvanized EN ISO 1461 or painted
Standards	EN / BS compliant, ISO 9001:2015 factory
Applications	Formwork support, slab shoring, beam propping, load bearing during concreting

Steel Props FAQ

What is a steel prop (acrow prop)?

A steel prop is an adjustable telescopic column used to support formwork, beams and slabs during concrete construction. The inner tube slides inside the outer tube and is locked with a pin and collar, giving fast, precise height adjustment from roughly half to full extended length.

What is the difference between light duty and heavy duty props?

Light duty props (typically 48 mm and 60 mm tube) support 10-30 kN and suit residential and low-rise slab work. Heavy duty props (76 mm tube and above) support 30-80 kN and are used for heavy beam and bridge falsework. Choose the size from your structural load calculation — our engineers can help with selection.

How long does a galvanized steel prop last?

Hot-dip galvanized props (EN ISO 1461, 55+ microns) last 15-25 years inland and 10-15 years in coastal environments. The threaded collar is the main wear point — keep it clean and lubricated, and it will outlast the rest of the prop.

Do steel props work with cuplock and ringlock shoring?

Yes — props are commonly used alongside cuplock/ringlock shoring towers for edge support and local load concentration, and with formwork tables and beams. We supply matching base plates and U-heads for system integration.

What is the lead time for steel props?

Standard steel prop orders ship within 15-25 days from stock sizes, with 7-10 days available for fast-track orders. We provide a container loading plan with every quotation.

Why Choose Sino East Steel Group

Sino East Steel Group (Tianjin, China) is a CE EN1090 & ISO 3834-2 certified steel props manufacturer with a 65,000 m² factory, exporting 200,000+ tons per year to 50+ countries. Every order ships with mill test certificates and batch traceability. For a quotation with your sizes, quantities and destination port, email [email protected] or WhatsApp +86 186 2208 8833.
