What is H Frame Scaffolding used for?

H Frame Scaffolding is widely used in masonry work, bricklaying, plastering, painting, and general construction access. It provides stable work platforms and can also be configured as shoring towers for concrete slab support.

What are the standard sizes of H Frame Scaffolding?

Standard heights range from 480mm to 2000mm, with 914mm, 1219mm, 1524mm, 1700mm and 1930mm being the most popular. Widths include 762mm, 914mm, 1219mm, 1200mm and 1500mm. Tube diameters range from OD42.7mm (light duty) to OD89mm (heavy duty shoring).

What surface finishes are available for H Frame Scaffolding?

We offer pre-galvanized, hot dip galvanized, painted, and powder coated finishes. Hot dip galvanized provides the best long-term corrosion protection for outdoor and coastal environments.

What standards does H Frame Scaffolding meet?

Our H Frame Scaffolding is manufactured to EN 1090-1, ISO 3834-2, EN 12810 and EN 12811 standards. We also produce frames compliant with country-specific regulations for markets including USA (OSHA), Europe, Southeast Asia, and the Middle East.

What components are included in an H Frame Scaffolding system?

A complete H Frame system includes: main frames (ladder/walk-through/shoring), cross braces (scissor type), joint pins/spigots, adjustable screw jacks, guardrail posts, guard rails, metal catwalk decks, and access ladders or stairs.

H Frame Scaffolding Manufacturer

Product Overview

Three Types of H Frame Scaffolding Systems

SINO EAST manufactures H Frame scaffolding in three configurations to cover every construction need — from lightweight masonry work to heavy-duty concrete shoring towers.

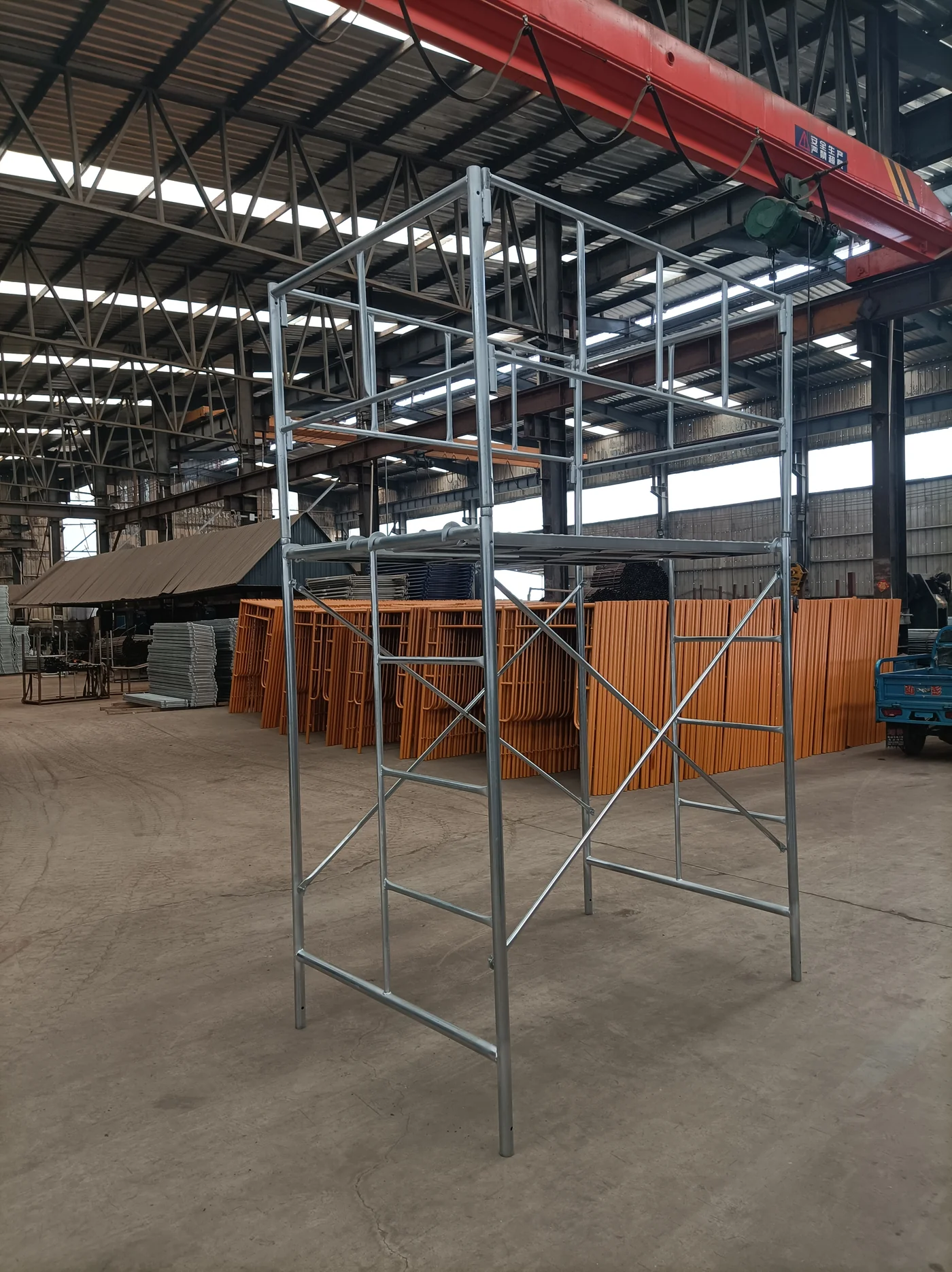

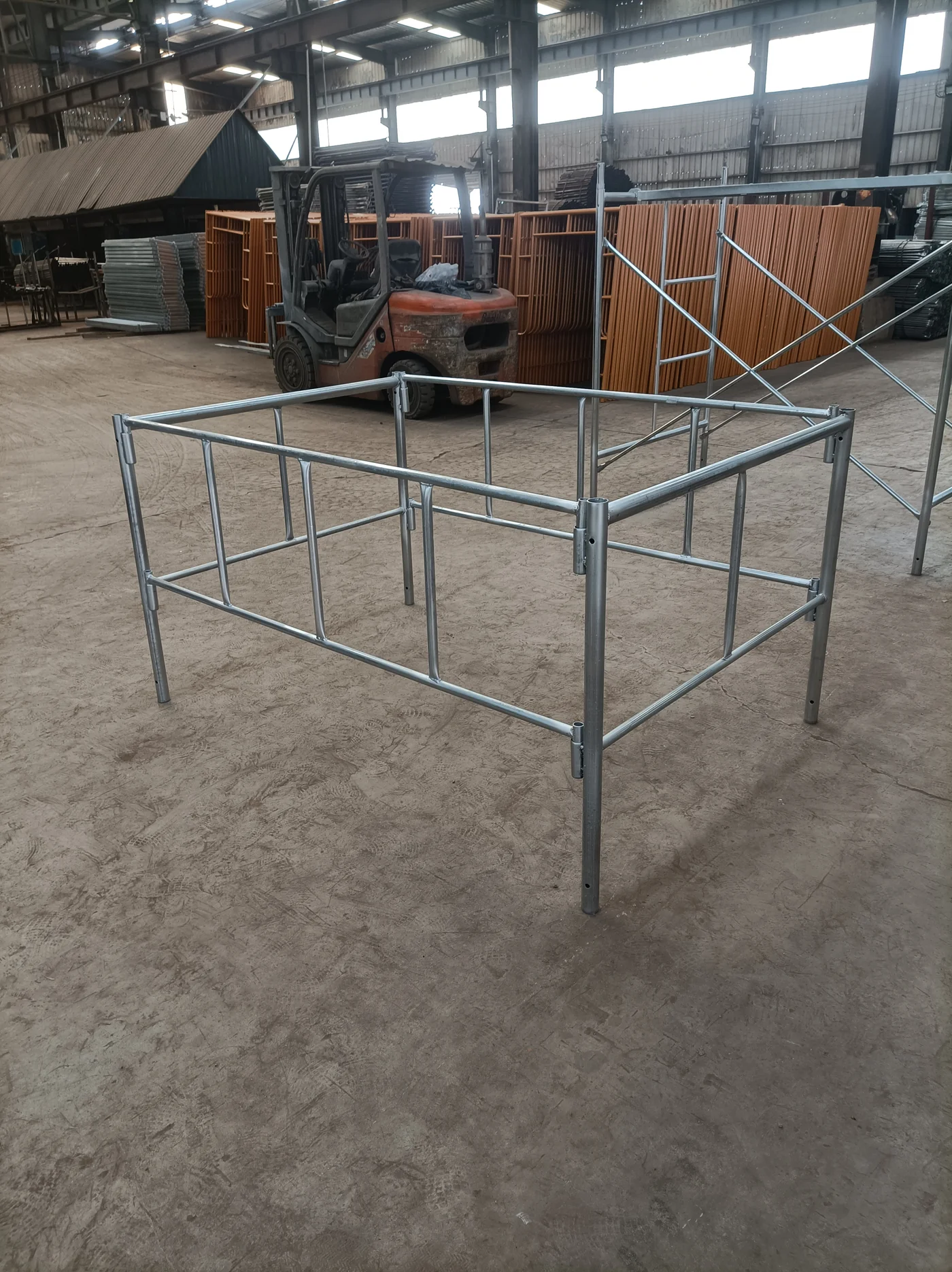

Ladder Frame (Mason Frame)

Built-in rungs provide safe climbing access for bricklayers and plasterers. The most popular H Frame type for masonry, rendering and general finishing work.

OD42.7mm / OD48.3mm914–1700mm H762–1219mm W

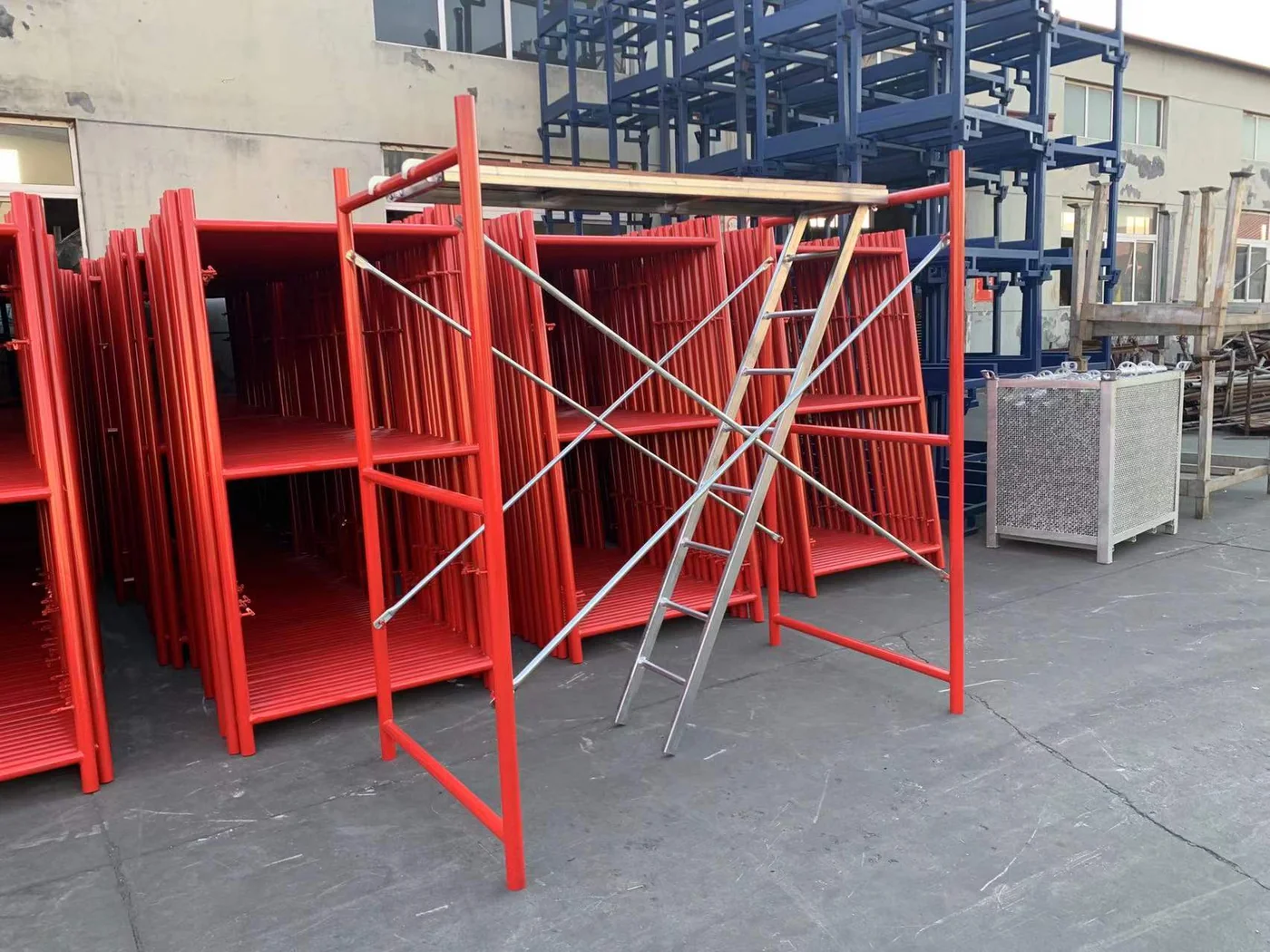

Walk-Through Frame

Open centre design allows workers and materials to pass through freely. Ideal for high-traffic areas, building facades and long wall runs where mobility matters.

OD42.7mm / OD48.3mm1219–2000mm H1219mm W

Shoring H Frame

Heavy-duty frames designed for concrete slab formwork support. High load capacity with OD48–OD89mm tube. Used in bridge, tunnel and high-rise building construction.

OD48–OD89mm2.0–4.0mm WT762–1500mm W

Product Gallery

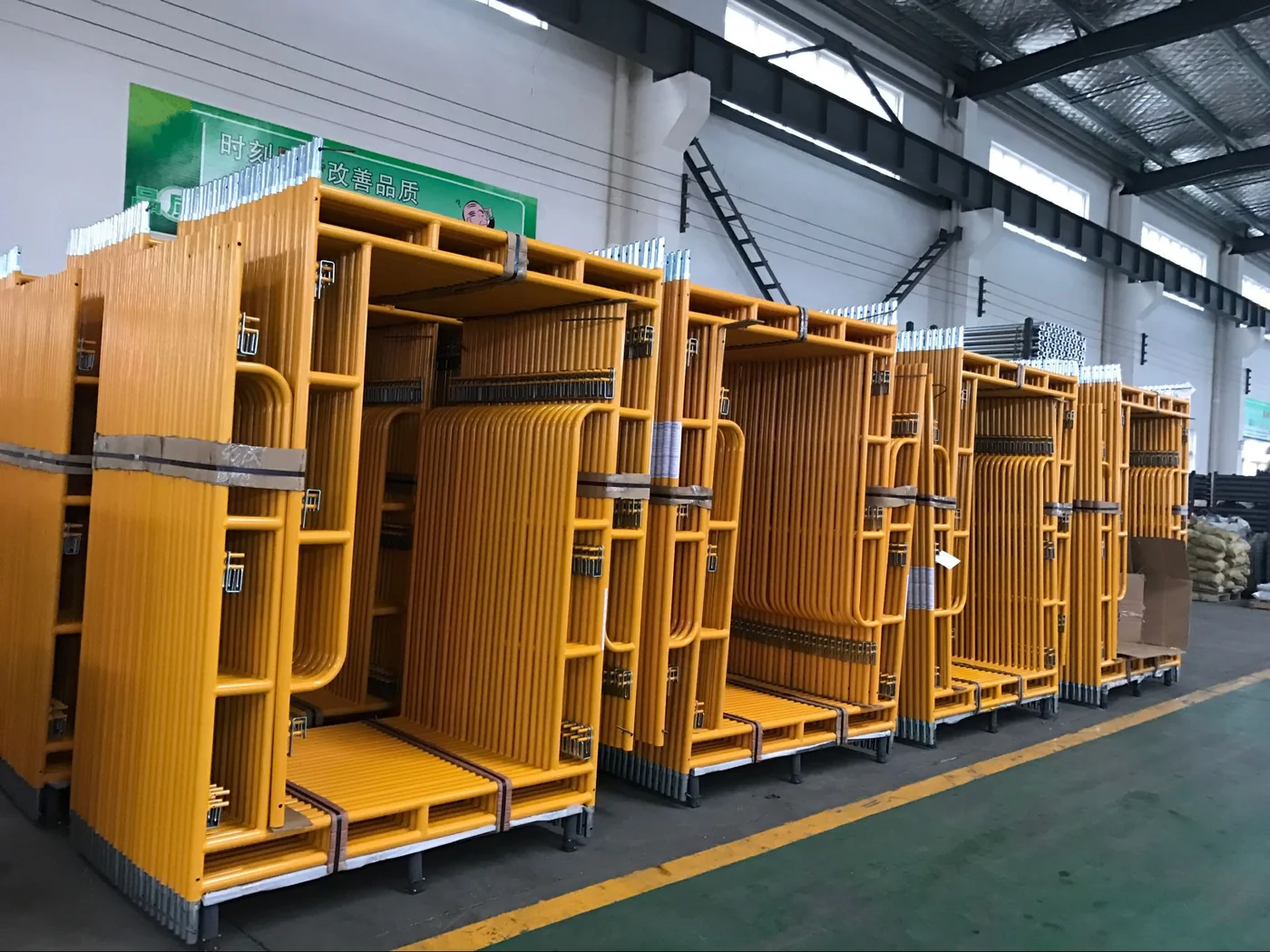

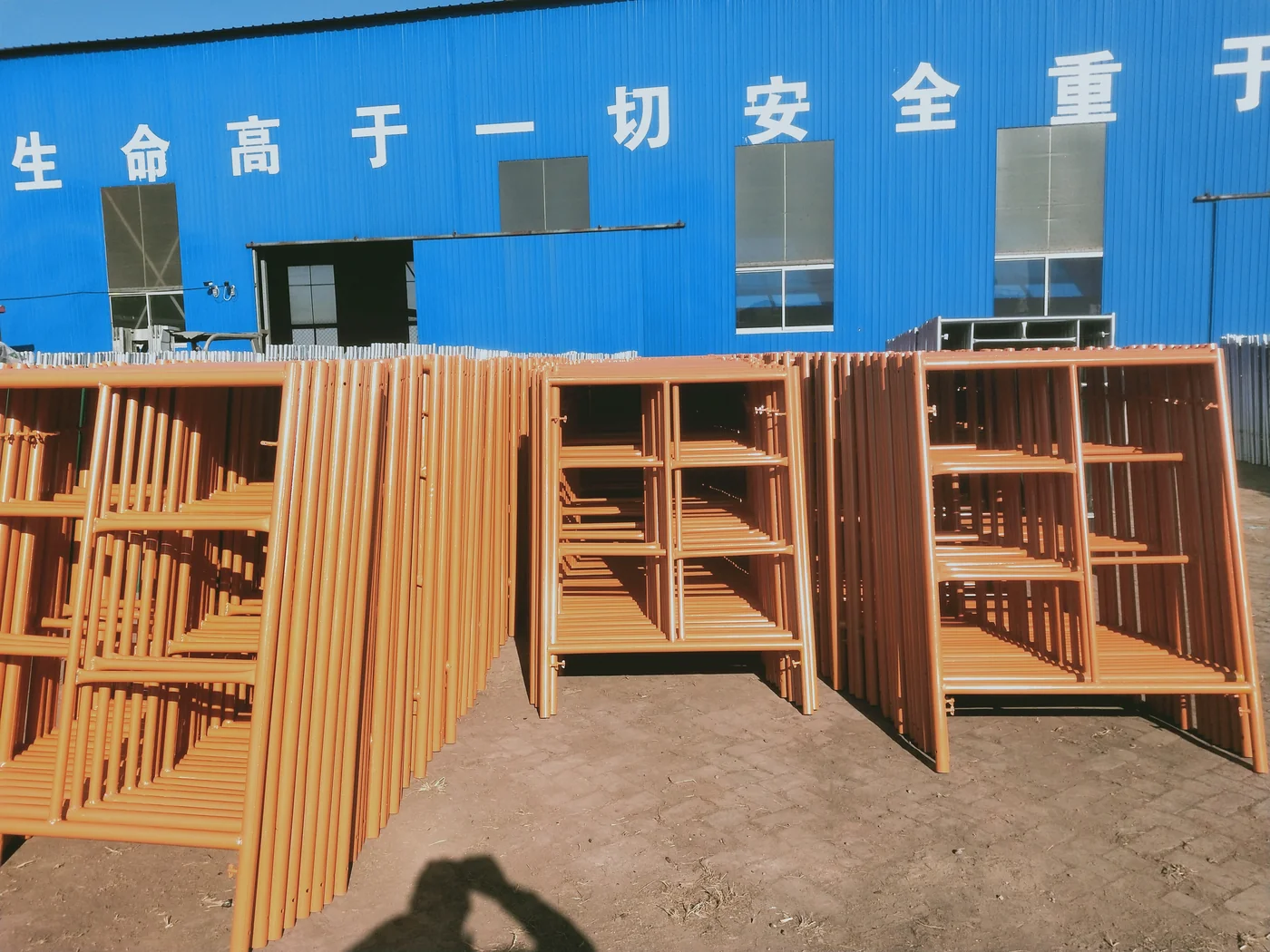

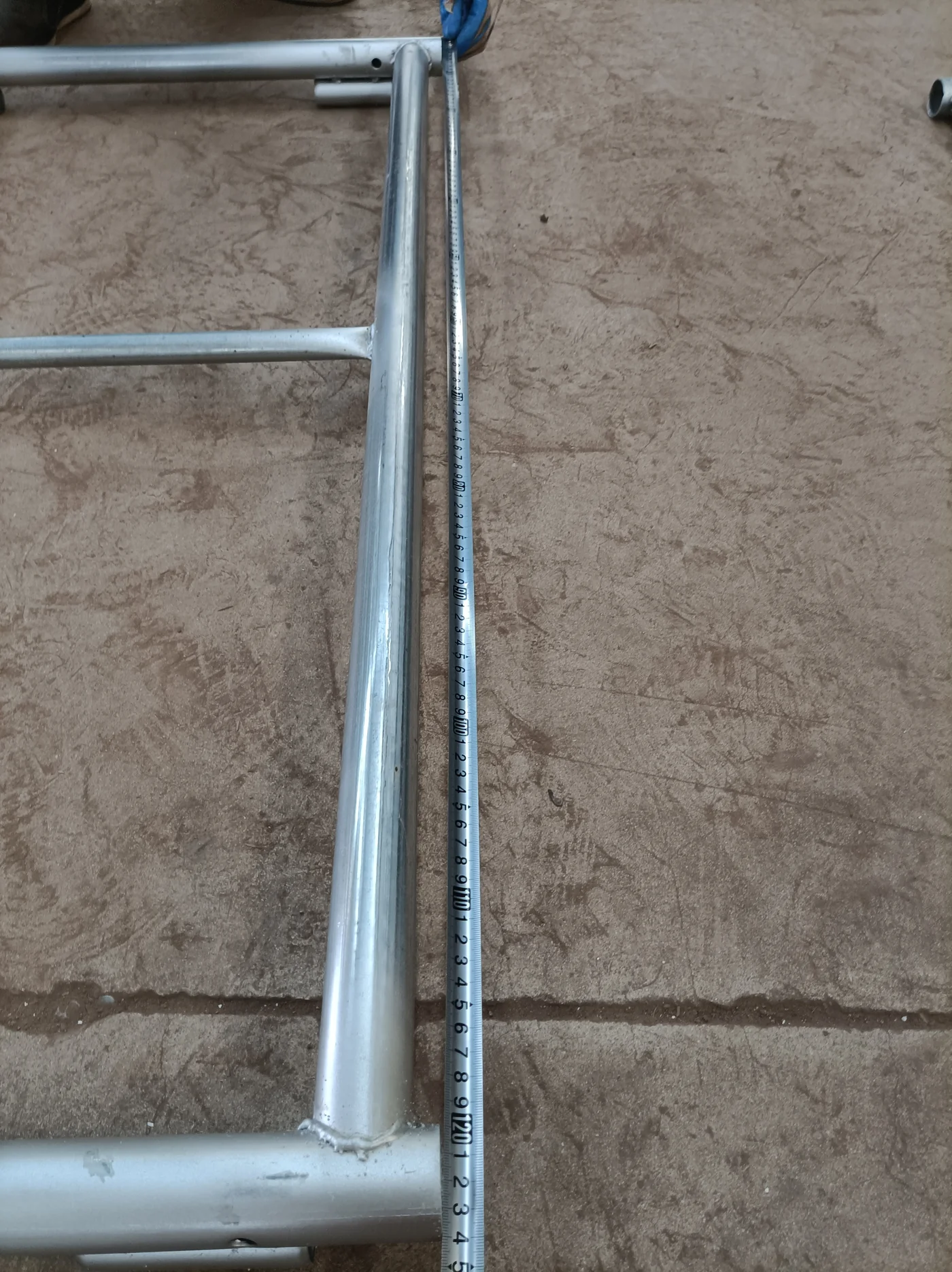

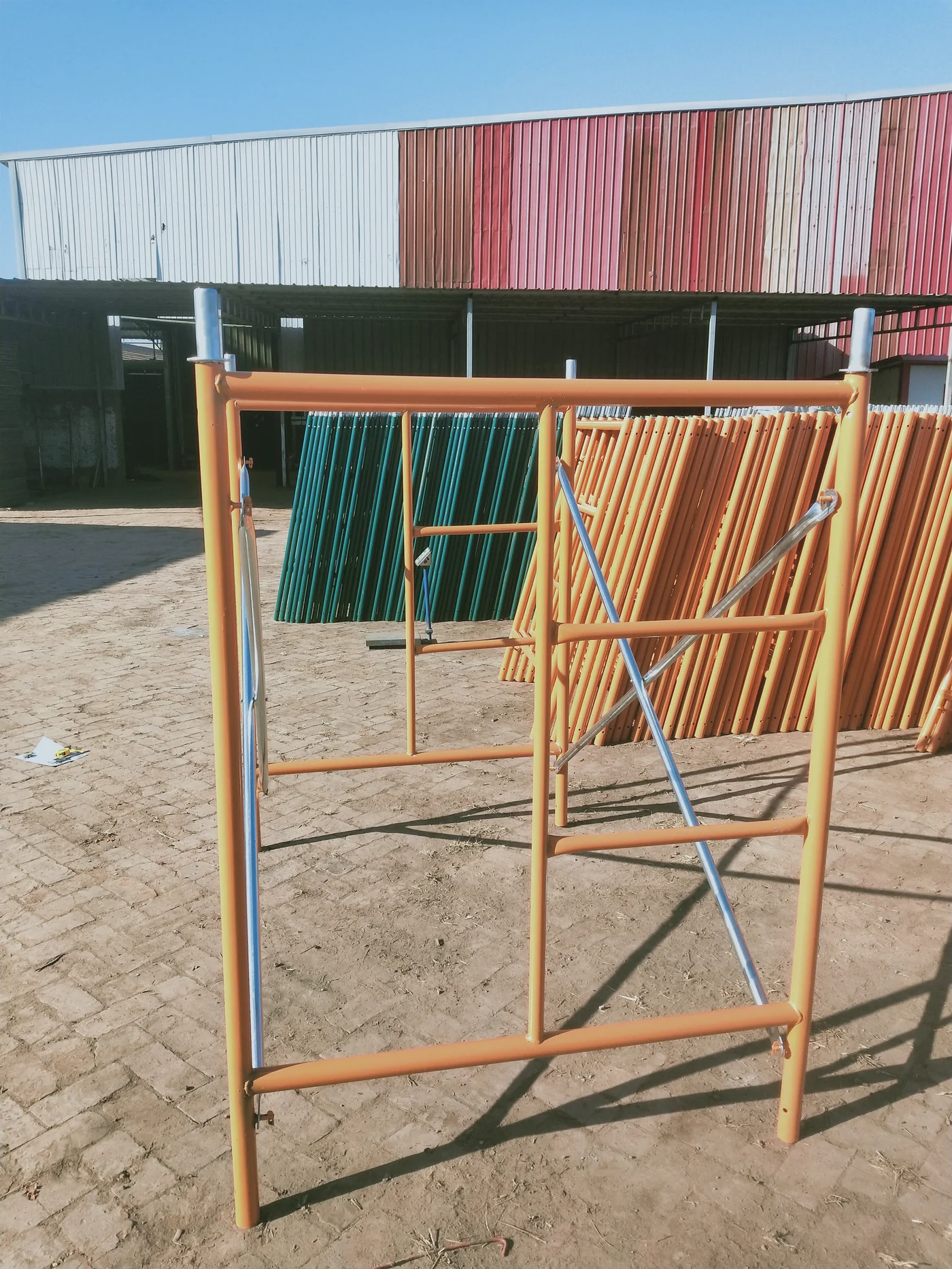

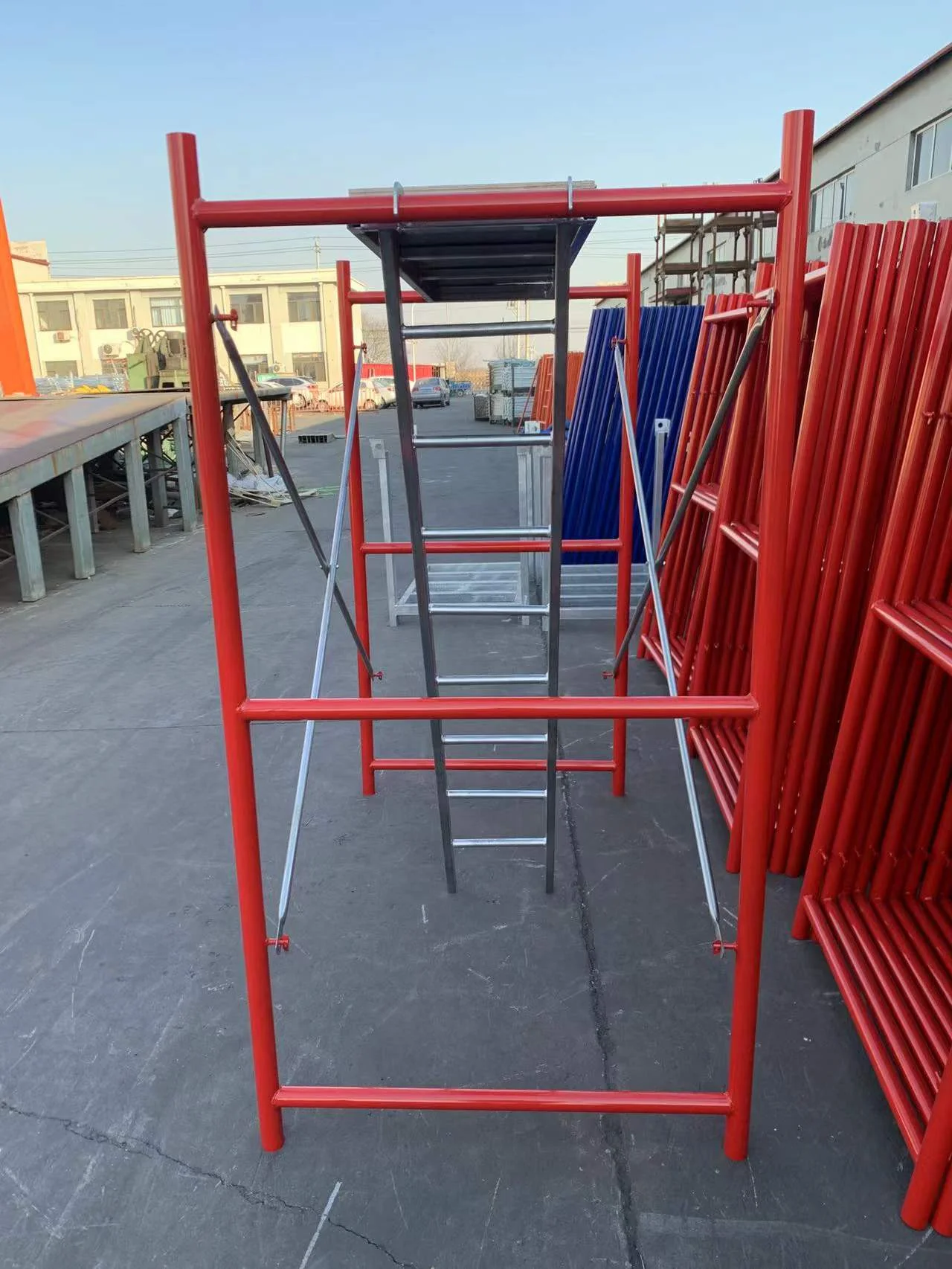

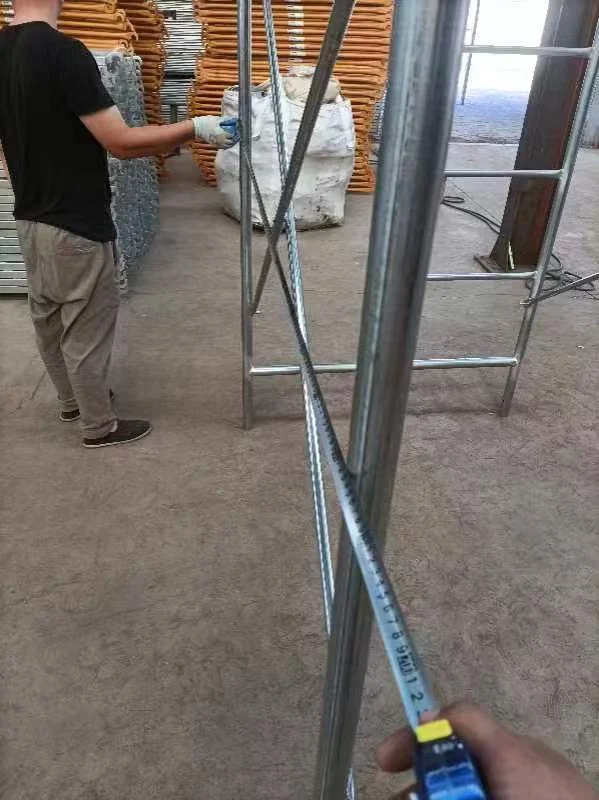

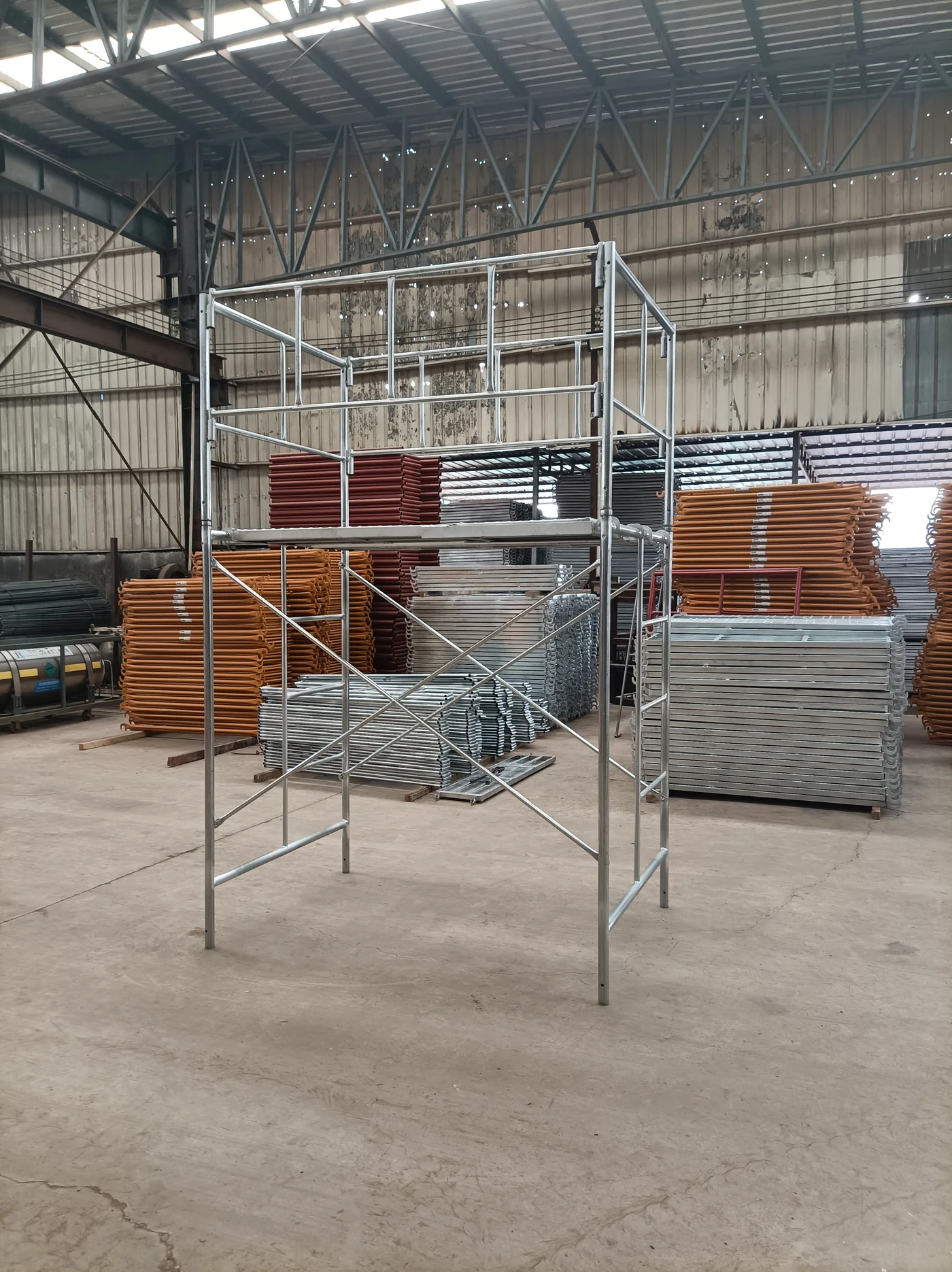

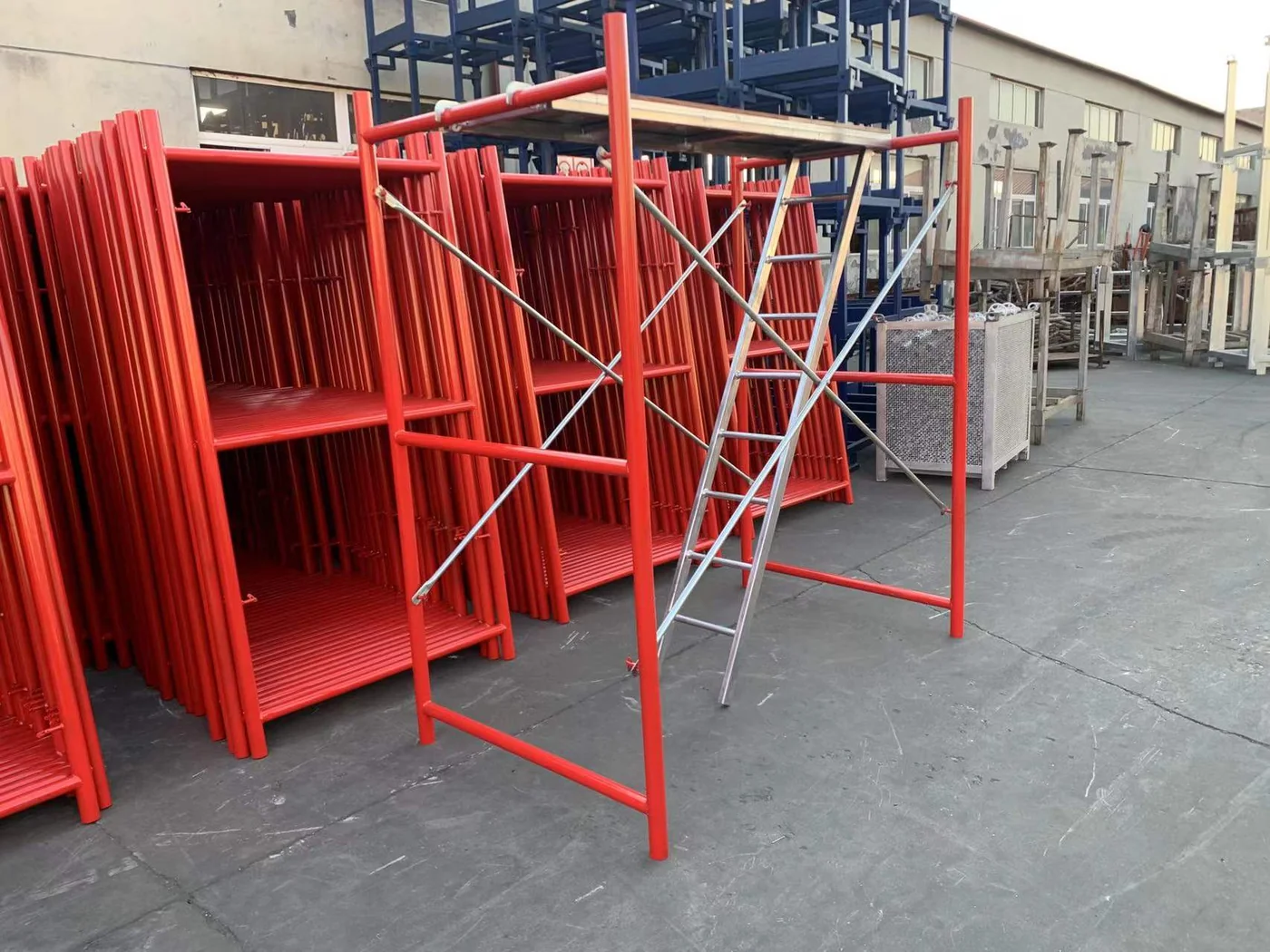

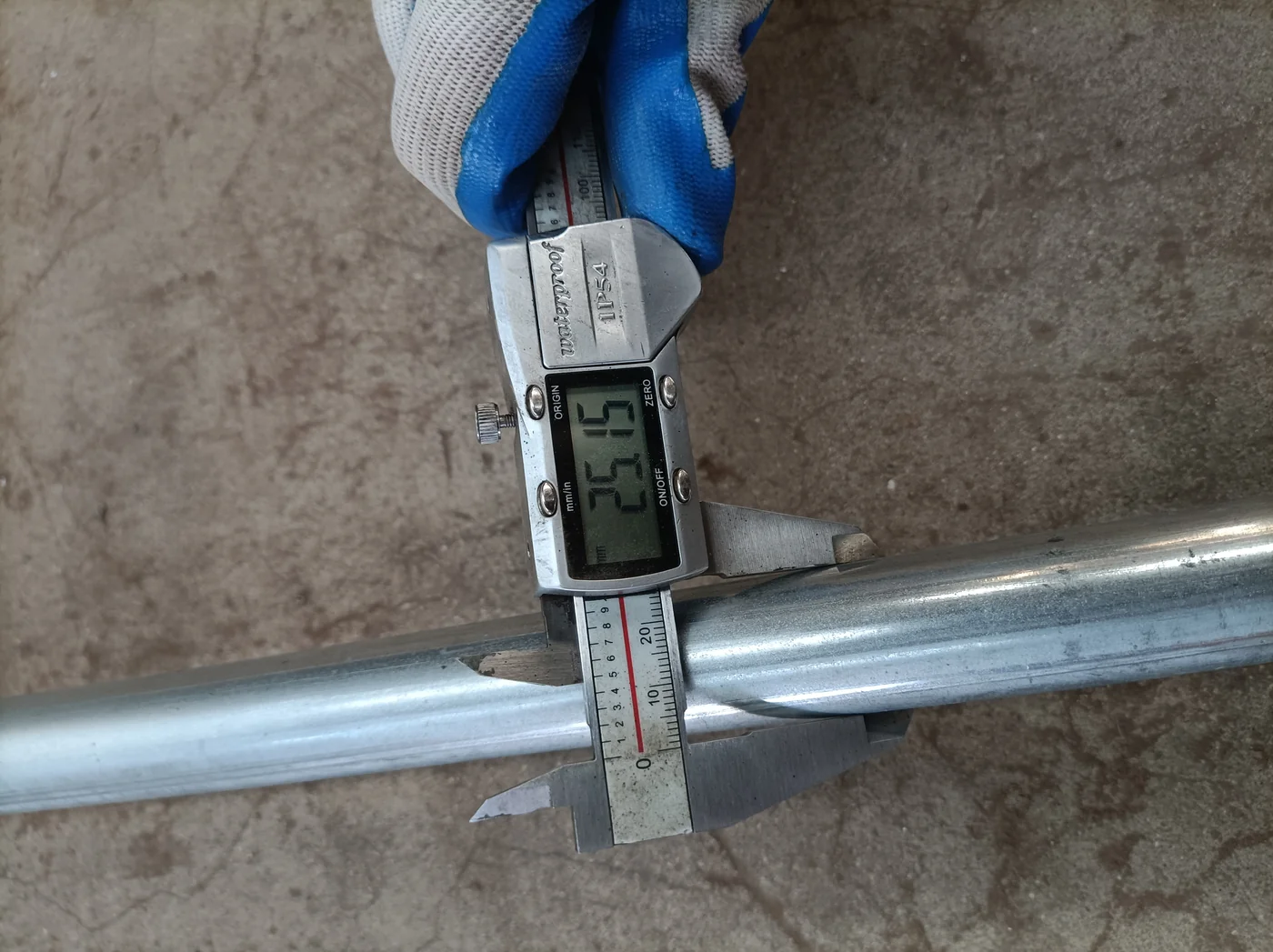

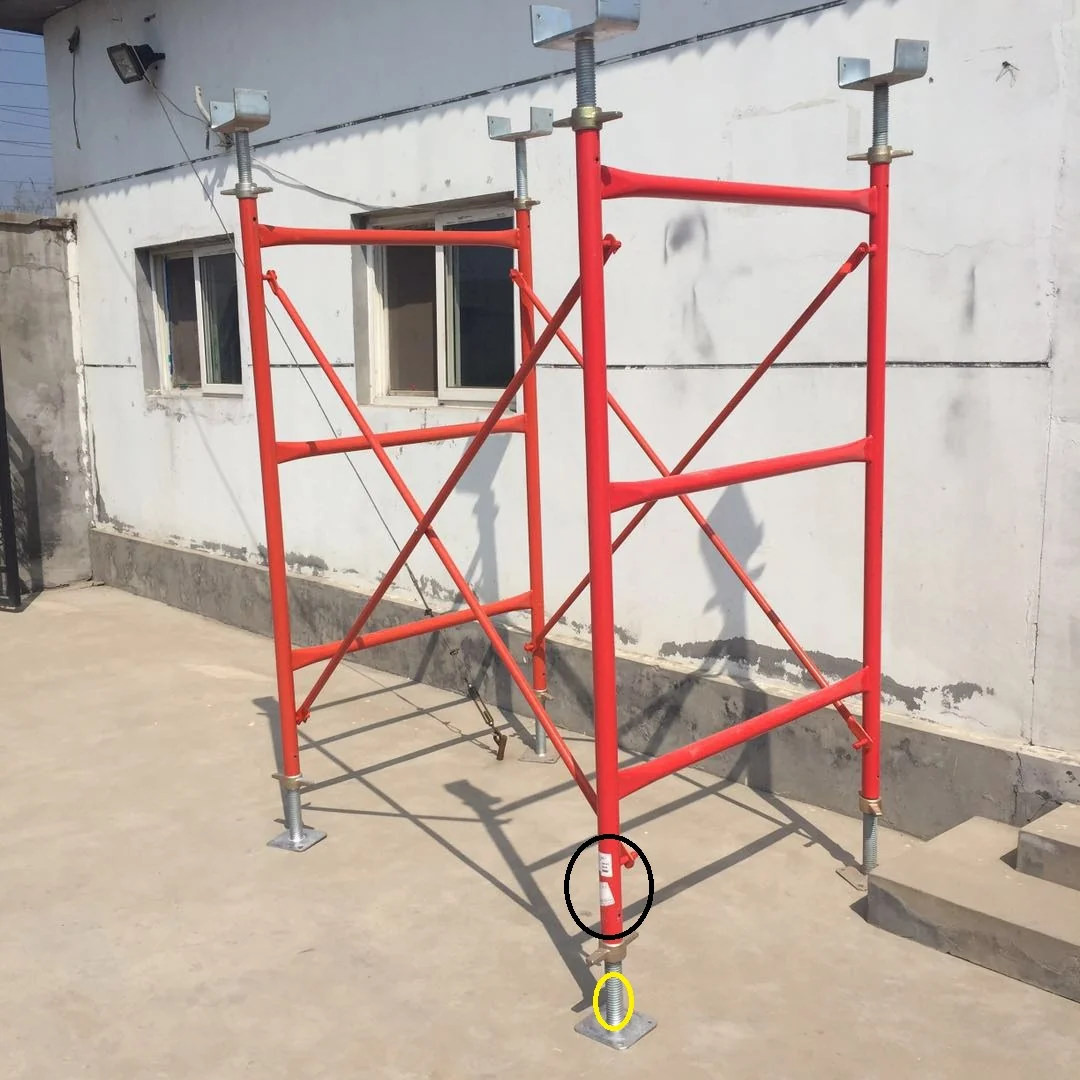

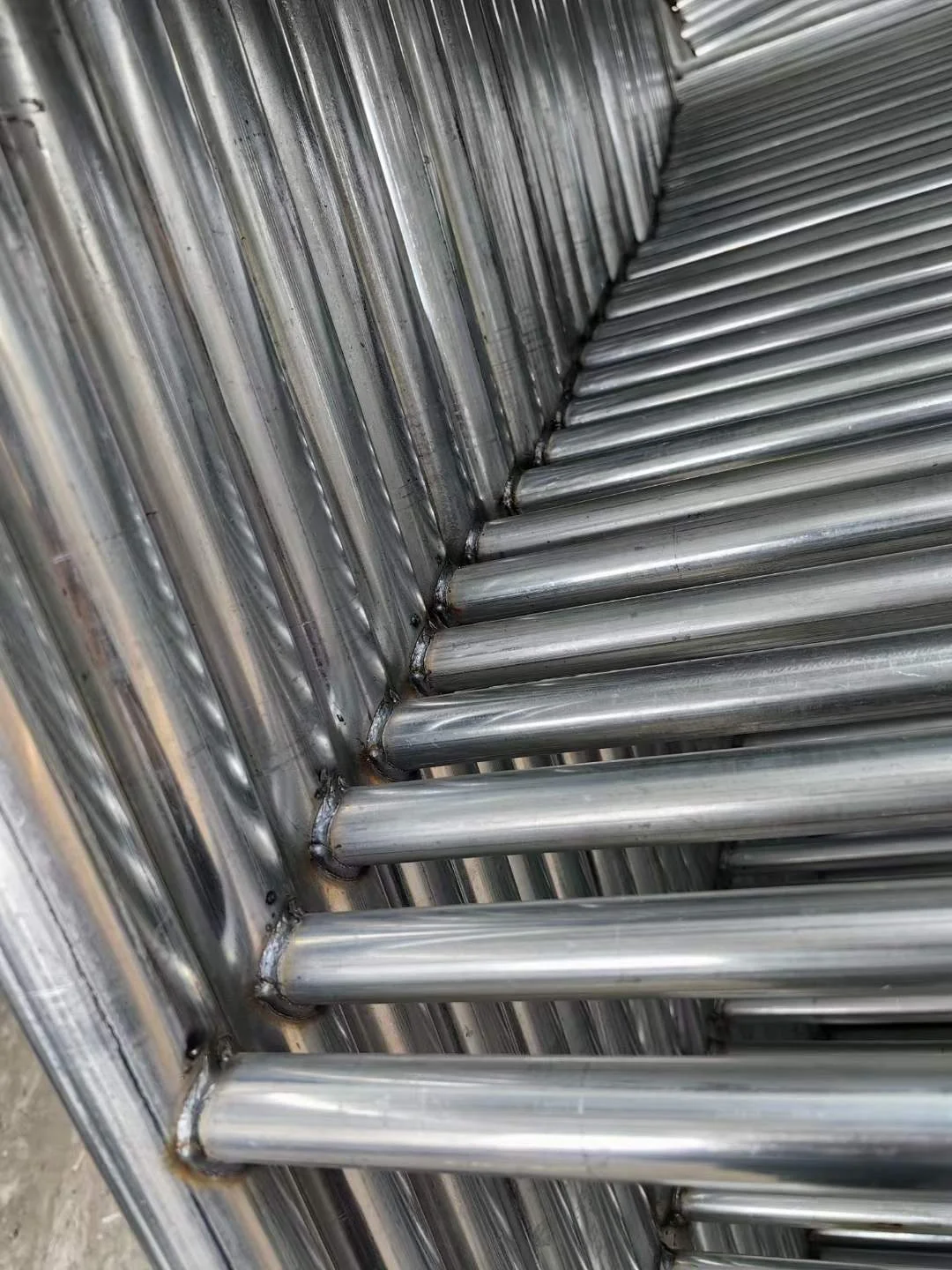

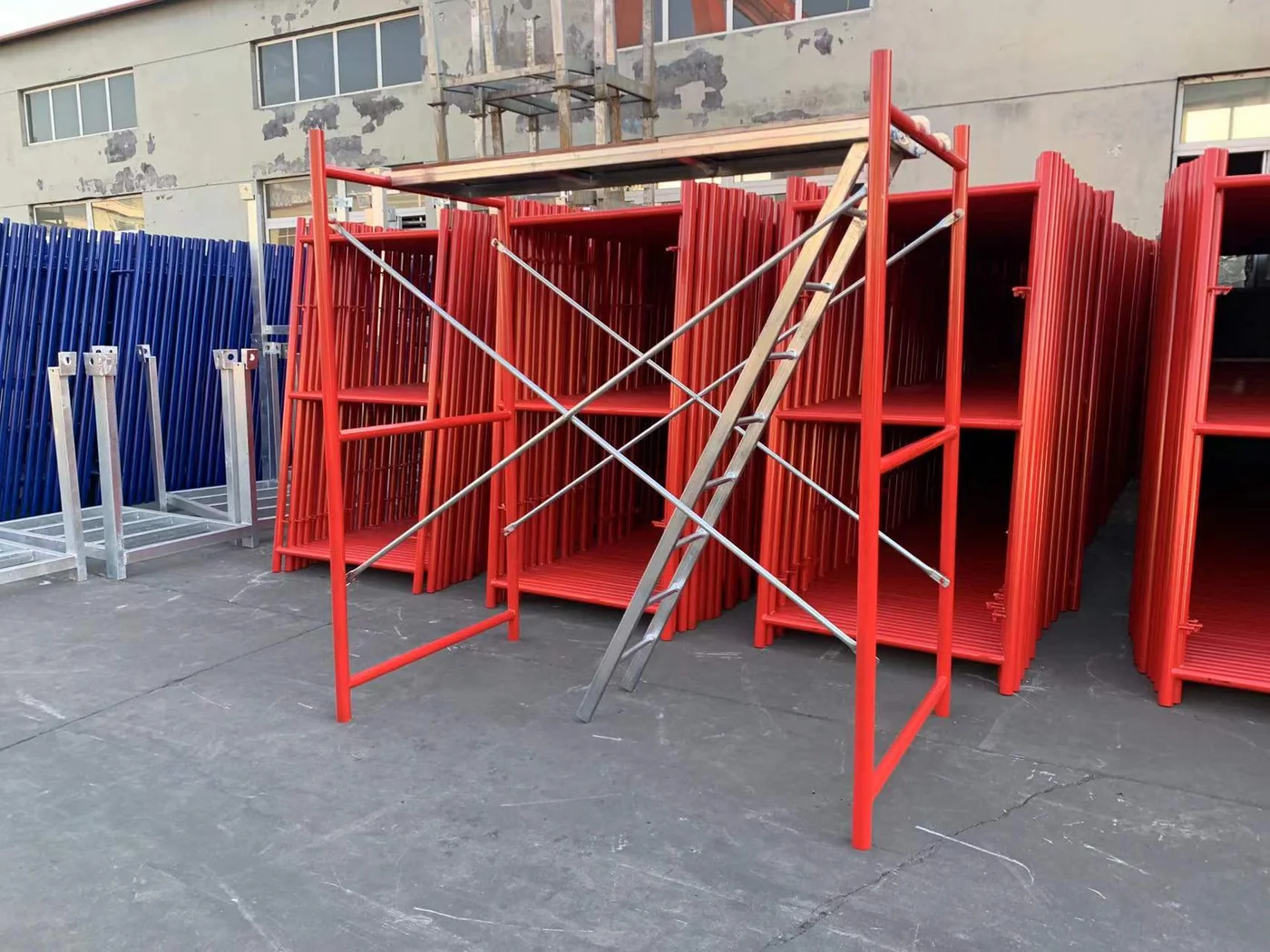

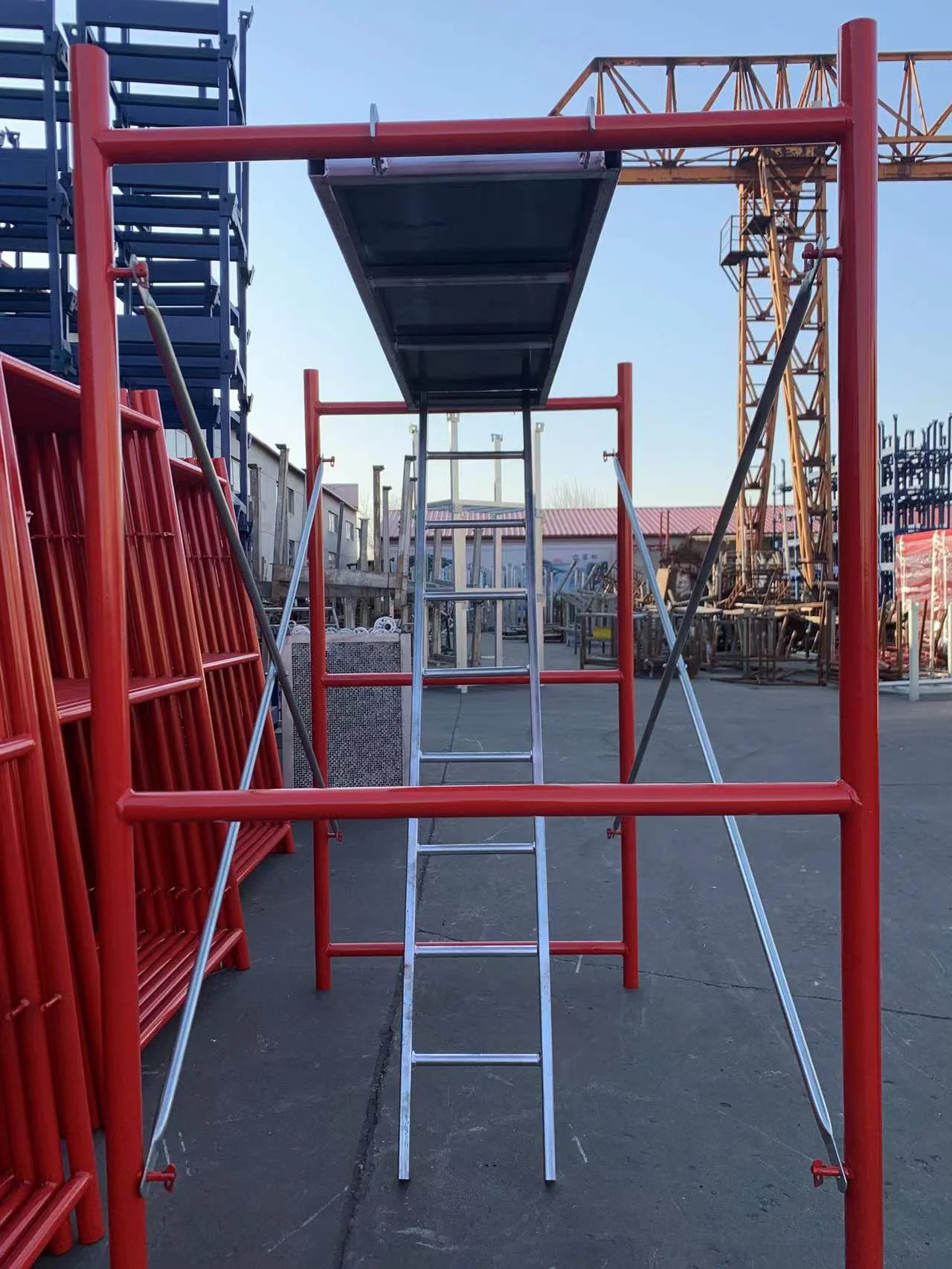

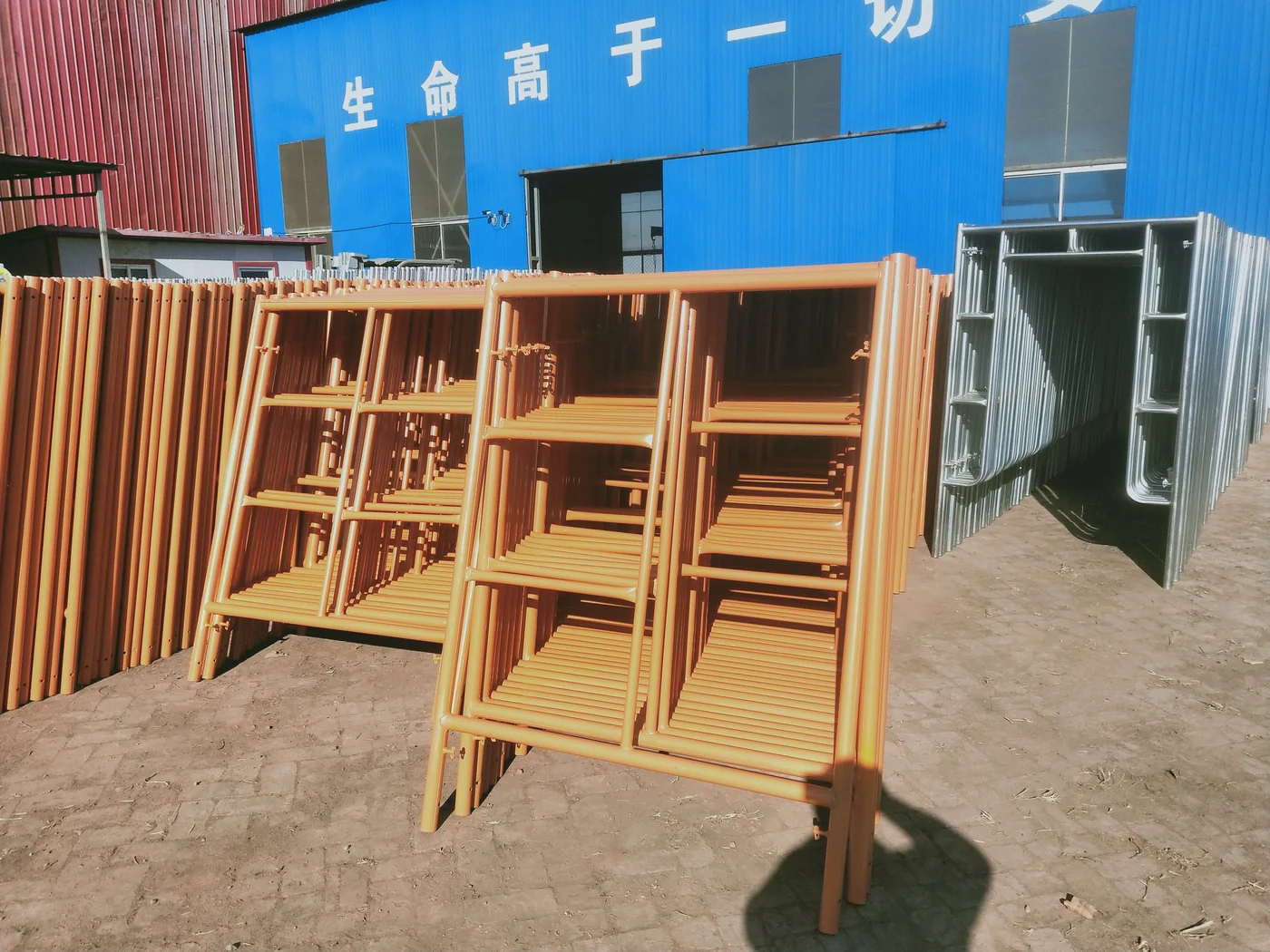

H Frame Scaffolding In Production & On Site

Real factory and project photos of our H Frame scaffolding products. Quality you can see before you order.

Technical Specifications

H Frame Scaffolding Dimensions & Load Data

Complete specification tables for ladder frames, walk-through frames and shoring H frames. All dimensions can be customized to your project requirements.

Code	Description	Width (W)	Height (H)	Tube OD	Wall Thk	Surface
SE-HFL-001	Ladder Frame — 762mm	762mm	1219mm	OD42.7mm	2.0mm	Pre-Galv / HDG
SE-HFL-002	Ladder Frame — 762mm	762mm	1700mm	OD42.7mm	2.0mm	Pre-Galv / HDG
SE-HFL-003	Ladder Frame — 914mm	914mm	1219mm	OD42.7mm	2.0mm	Pre-Galv / HDG
SE-HFL-004	Ladder Frame — 914mm	914mm	1524mm	OD42.7mm	2.0mm	Pre-Galv / HDG
SE-HFL-005	Ladder Frame — 914mm	914mm	1700mm	OD42.7mm	2.0mm	Pre-Galv / HDG
SE-HFL-006	Ladder Frame — 914mm	914mm	1930mm	OD42.7mm	2.2mm	Pre-Galv / HDG
SE-HFL-007	Ladder Frame — 1219mm	1219mm	914mm	OD42.7mm	2.0mm	Pre-Galv / HDG
SE-HFL-008	Ladder Frame — 1219mm	1219mm	1219mm	OD42.7mm	2.0mm	Pre-Galv / HDG
SE-HFL-009	Ladder Frame — 1219mm	1219mm	1524mm	OD42.7mm	2.0mm	Pre-Galv / HDG
SE-HFL-010	Ladder Frame — 1219mm	1219mm	1700mm	OD42.7mm	2.2mm	Pre-Galv / HDG / Painted
SE-HFL-011	Ladder Frame — 1219mm	1219mm	1930mm	OD48.3mm	2.3mm	Pre-Galv / HDG / Painted
SE-HFL-012	Ladder Frame — 1219mm	1219mm	2000mm	OD48.3mm	2.5mm	Pre-Galv / HDG / Painted
SE-HFL-013	Ladder Frame — 1219mm	1219mm	480mm	OD42.7mm	2.0mm	Pre-Galv / HDG
SE-HFL-014	Ladder Frame — 1200mm	1200mm	1700mm	OD42.7mm	2.0mm	Pre-Galv / HDG / Painted
SE-HFL-015	Ladder Frame — 1500mm	1500mm	1700mm	OD48.3mm	2.5mm	Pre-Galv / HDG / Painted

Custom heights, widths, tube diameters and finishes available on request. Lock pin spacing: 1219mm, 1524mm or 914mm.

Code	Description	Width (W)	Height (H)	Tube OD	Wall Thk	Surface
SE-HFW-001	Walk-Through Frame	1219mm	1219mm	OD42.7mm	2.0mm	Pre-Galv / HDG
SE-HFW-002	Walk-Through Frame	1219mm	1524mm	OD42.7mm	2.2mm	Pre-Galv / HDG
SE-HFW-003	Walk-Through Frame	1219mm	1700mm	OD42.7mm	2.2mm	Pre-Galv / HDG / Painted
SE-HFW-004	Walk-Through Frame	1219mm	1930mm	OD48.3mm	2.5mm	HDG / Painted
SE-HFW-005	Walk-Through Frame	1219mm	2000mm	OD48.3mm	2.5mm	HDG / Painted
SE-HFW-006	Walk-Through Frame	914mm	1700mm	OD42.7mm	2.0mm	Pre-Galv / HDG
SE-HFW-007	Walk-Through Frame — Arch Type	990mm	2000mm	OD42.7mm	2.0mm	Pre-Galv / HDG
SE-HFW-008	Walk-Through Frame — Italian	990mm	2000mm	OD42.7mm	2.2mm	HDG / Painted
SE-HFW-009	Walk-Through Frame — Italian	990mm	2000mm	OD48.3mm	2.5mm	HDG / Painted
SE-HFW-010	Walk-Through Frame — USA Type	1219mm	1930mm	OD48.3mm	2.5mm	HDG / Painted

Walk-through frames feature an open centre for easy material and worker passage. Available in standard, arch and Italian configurations.

Code	Description	Width (W)	Height (H)	Tube OD	Wall Thk	Surface
SE-HFS-001	Shoring H Frame — Light	1219mm	1219mm	OD48.3mm	2.5mm	HDG
SE-HFS-002	Shoring H Frame — Light	1219mm	1524mm	OD48.3mm	2.5mm	HDG
SE-HFS-003	Shoring H Frame — Light	1219mm	1700mm	OD48.3mm	2.5mm	HDG
SE-HFS-004	Shoring H Frame — Medium	1219mm	1219mm	OD57.0mm	2.5mm	HDG
SE-HFS-005	Shoring H Frame — Medium	1219mm	1524mm	OD57.0mm	2.5mm	HDG
SE-HFS-006	Shoring H Frame — Medium	1219mm	1700mm	OD57.0mm	3.0mm	HDG
SE-HFS-007	Shoring H Frame — Heavy	1219mm	1700mm	OD60.3mm	3.2mm	HDG
SE-HFS-008	Shoring H Frame — Heavy	1219mm	1930mm	OD60.3mm	3.2mm	HDG
SE-HFS-009	Shoring H Frame — Heavy	1200mm	1700mm	OD60.3mm	3.2mm	HDG
SE-HFS-010	Shoring H Frame — X-Heavy	1219mm	1700mm	OD76.1mm	3.6mm	HDG
SE-HFS-011	Shoring H Frame — X-Heavy	1219mm	1700mm	OD89.0mm	4.0mm	HDG
SE-HFS-012	Shoring H Frame — X-Heavy	1500mm	1700mm	OD89.0mm	4.0mm	HDG

Shoring H Frames are designed for concrete slab formwork support. Load capacity increases with tube diameter and wall thickness. Custom sizes available.

Code	Frame Distance (mm)	Lock Span H (mm)	Brace Length LG (mm)	Tube OD	Type
SE-HCB-001	1829	1219	2198	OD21.3mm	Tubular
SE-HCB-002	1829	914	2045	OD21.3mm	Tubular
SE-HCB-003	1829	610	1928	OD21.3mm	Tubular
SE-HCB-004	1829	280	1850	OD21.3mm	Tubular
SE-HCB-005	1219	1219	1724	OD21.3mm	Tubular
SE-HCB-006	1219	610	1363	OD21.3mm	Tubular
SE-HCB-007	1219	280	1251	OD21.3mm	Tubular
SE-HCB-008	2100	1219	2428	OD21.3mm	Tubular
SE-HCB-009	1829	1219	2198	25x25x3mm	Angle Steel
SE-HCB-010	1219	1219	1724	25x25x3mm	Angle Steel

Cross braces connect H Frames to form stable scaffold units. Both tubular (OD21.3mm, OD27mm) and angle steel types available. Sizes depend on lock pin spacing and frame horizontal distance.

Code	Component	Specification	Material	Surface
SE-HJP-001	Joint Pin / Spigot	OD34mm x 200mm	Q235 Steel	HDG
SE-HJP-002	Joint Pin / Spigot	OD38mm x 200mm	Q235 Steel	HDG
SE-HJP-003	Joint Pin / Spigot	OD42mm x 200mm	Q235 Steel	HDG
SE-HSJ-001	Screw Jack Base	OD32mm x 500mm, Solid	Q235 / Q345	HDG
SE-HSJ-002	Screw Jack Base	OD38mm x 600mm, Hollow	Q235 / Q345	HDG
SE-HGR-001	Guardrail Post	OD42.7mm x 1050mm	Q235 Steel	Pre-Galv / HDG
SE-HGR-002	Guardrail Tube	OD42.7mm x 2438mm	Q235 Steel	Pre-Galv / HDG
SE-HDK-001	Metal Deck / Catwalk	500mm x 1829mm	Q235 Steel	HDG
SE-HDK-002	Metal Deck / Catwalk	500mm x 2438mm	Q235 Steel	HDG
SE-HCW-001	Caster Wheel	150mm dia, 250kg load	PU / Nylon	HDG Bracket
SE-HCW-002	Caster Wheel	200mm dia, 400kg load	PU / Nylon	HDG Bracket

All components listed are standard stock sizes. Custom sizes, higher load capacities and branded versions available for OEM orders.

System Components

Complete H Frame Scaffolding System Parts

Every component engineered for compatibility and safety. SINO EAST supplies the full system from one factory — one order, one shipment.

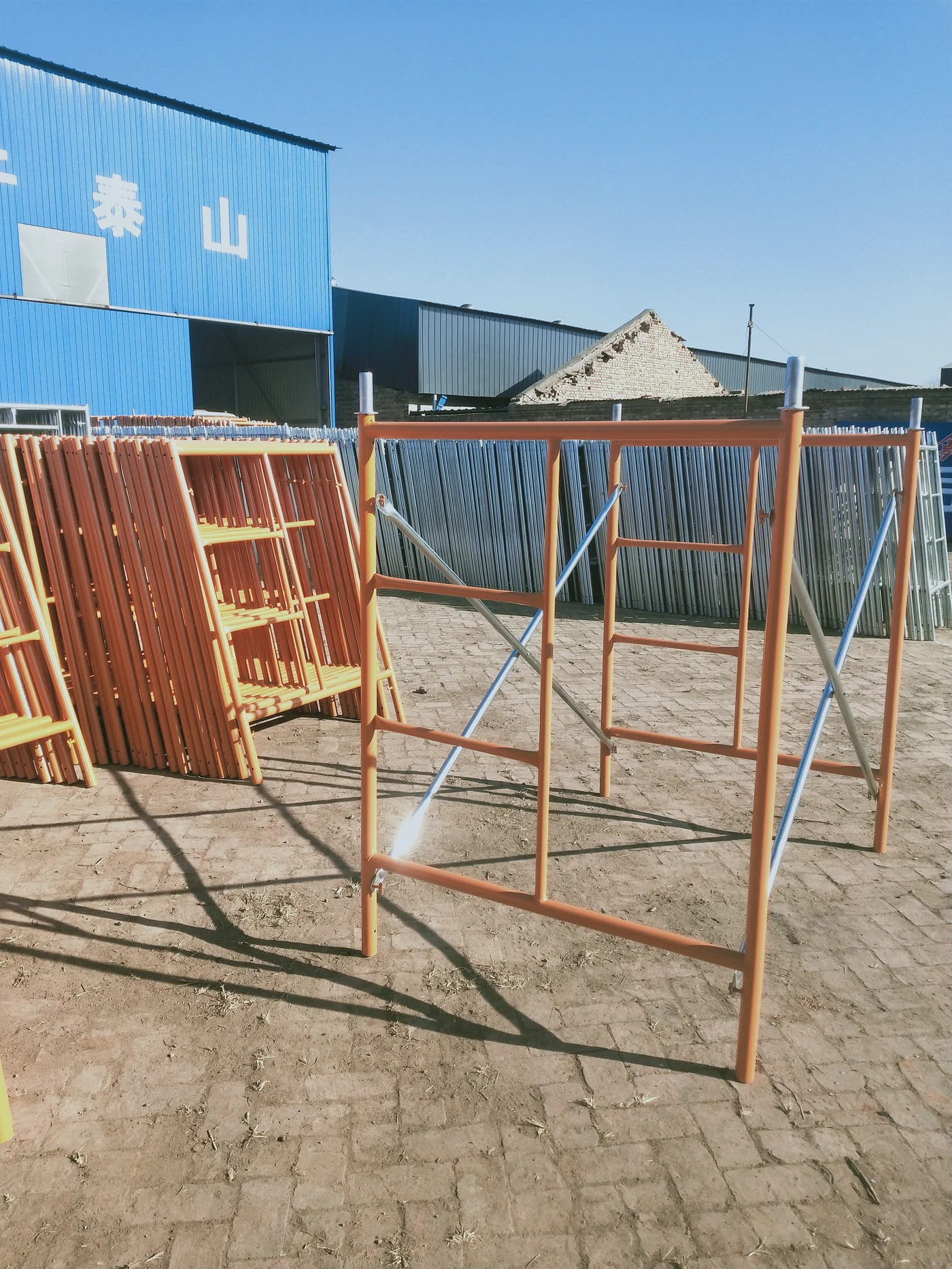

A-Frame Assembly

Complete H Frame unit with integrated cross brace. Factory-welded connections ensure consistent quality and fast on-site assembly.

Lock Pin Mechanism

Precision-formed lock pins in flick, fast or snap-on styles. Secure cross brace connection with positive locking for safety compliance.

Joint Pins & Spigots

High-strength steel spigot pins for vertical frame stacking. Tapered design for easy insertion, spring clip retention.

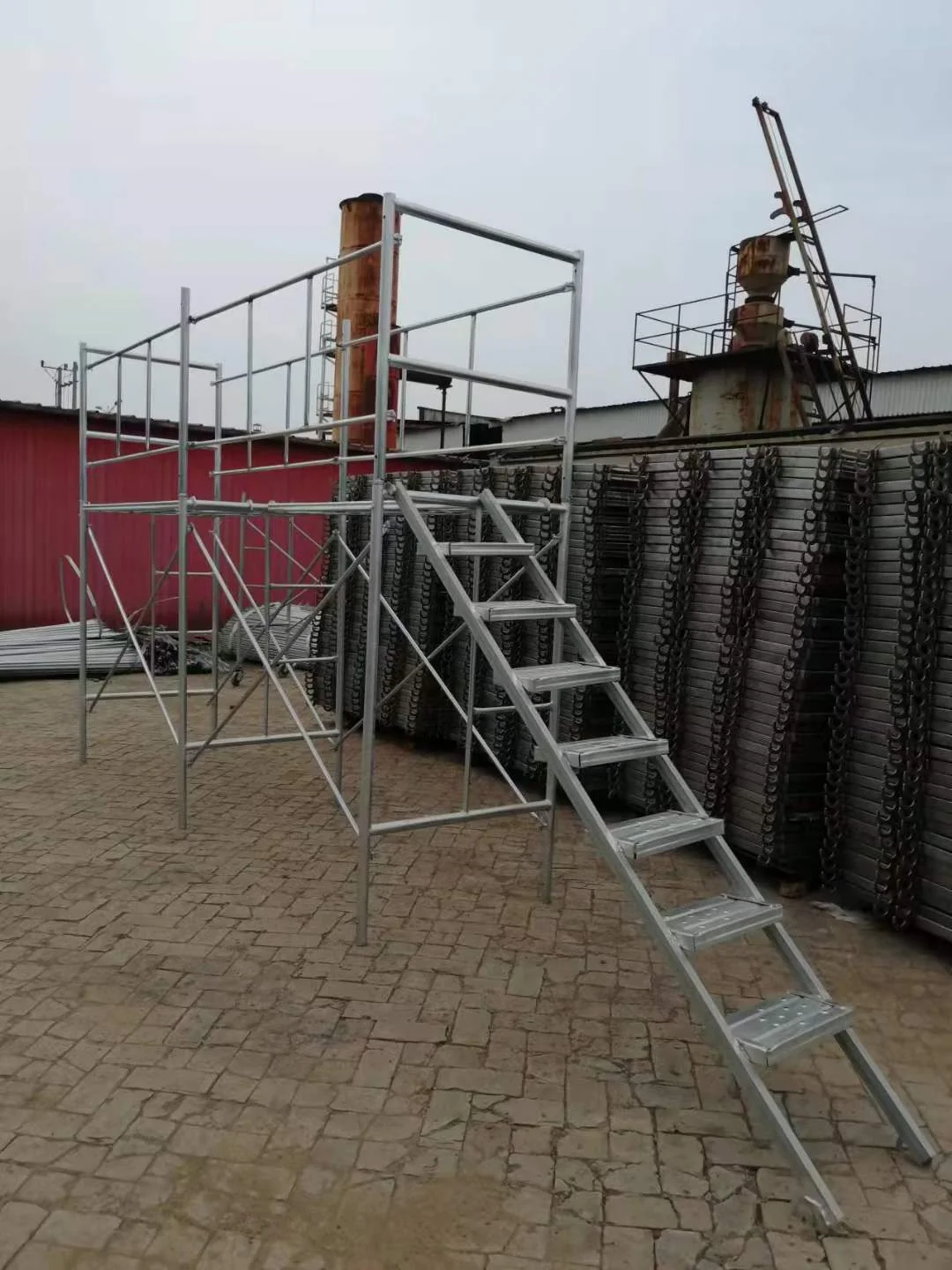

Guardrail System

Complete edge protection with guardrail posts and horizontal rails. Compliant with work-at-height safety regulations.

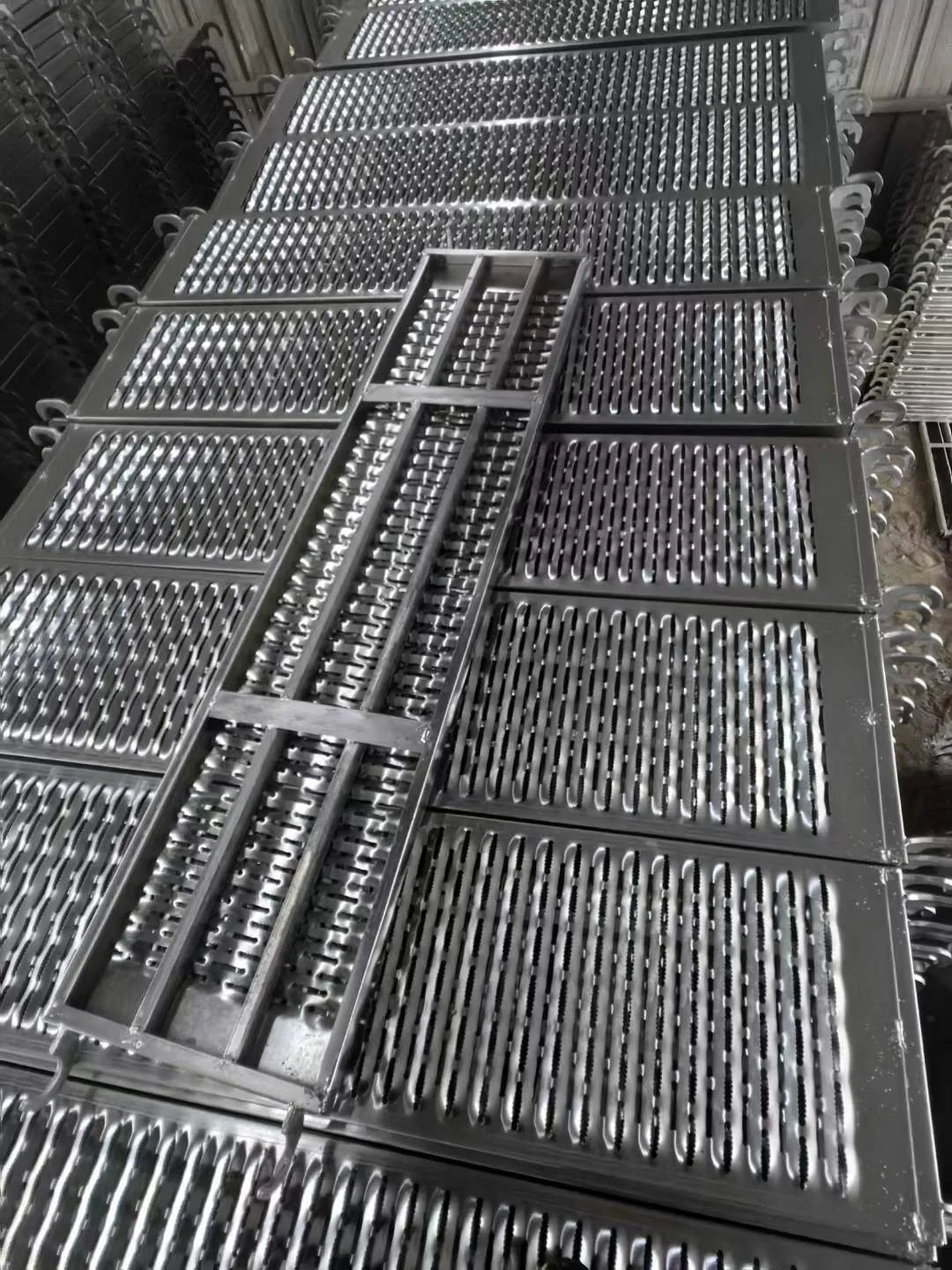

Metal Catwalk Decks

Anti-slip steel deck platforms with end hooks for quick installation. Load-tested for safe working loads on H Frame bays.

Access Ladders & Stairs

Aluminium and steel access solutions for multi-level H Frame towers. Integrated with safety cage and handrail options.

Surface Finish

Four Finish Options for Every Environment

Choose the right surface treatment for your project conditions and budget. From indoor temporary use to permanent outdoor installations in coastal environments.

Finish Type	Process	Corrosion Resistance	Appearance	Best For
Pre-Galvanized	Zinc coating applied to tube before welding	Moderate	Bright silver	Indoor, short-term projects, dry climates
Hot Dip Galvanized	Full frame dipped in molten zinc after welding	Excellent	Matte grey	Outdoor, coastal, long-term, heavy-duty
Painted	Epoxy primer + top coat after fabrication	Good	Custom colours	Branded systems, colour-coded height marking
Powder Coated	Electrostatic powder + oven curing	Very Good	Uniform matte	High-visibility, architectural, premium finish

Global Standards

H Frame Scaffolding by Region & Standard

SINO EAST manufactures H Frame scaffolding to meet regional construction regulations and customs worldwide.

🇮🇳

European Type

EN 12810 / EN 12811 compliant. 990mm, 730mm and 700mm width options. Italian arch, German and Spanish configurations. Hot dip galvanized standard.

🇺🇸

USA / Canada Type

OSHA & CSA compliant. 5' and 4' width options. OD48.3mm minimum tube. Painted finish common. Walk-through frames for high-rise masonry.

🇵🇱

Southeast Asia Type

Popular in PH, TH, ID, MY. 1219mm and 914mm widths. OD42.7mm standard. Pre-galvanized most common. Ladder frames for bricklaying and plastering.

🇲🇳

Middle East Type

Hot dip galvanized required. 1219mm width standard. OD48.3mm for high-rise. Complete scaffolding + shoring tower solutions.

🇧🇷

South America Type

Popular in BR, CL, PE, CO. 1200mm and 1000mm widths. OD42.7mm and OD48.3mm. Pre-galvanized or painted. Andamio configurations available.

🇬🇧

UK / Ireland Type

BS 1139 / EN 12810 compliant. 4' and 5' width options. OD48.3mm tubes. Hot dip galvanized. Full system with toe boards and guardrails.

Why Choose Us

6 Reasons to Choose SINO EAST H Frame Scaffolding

20+ years of H Frame manufacturing excellence. We understand what matters on your construction site.

🔧

Precision Jig Welding

ISO 3834 certified welding with automated jig fixtures. Every H Frame is dimensionally identical — no field fit issues.

📦

Complete System Supply

Frames, braces, jacks, decks, guardrails, ladders — all from one factory. Save on freight and simplify procurement.

🌎

Region-Specific Design

We manufacture to your country's exact standards and customs — European, American, Asian, Middle Eastern, South American.

🔬

Full OD Range: 42 to 89mm

From lightweight OD42.7mm mason frames to OD89mm heavy shoring. One manufacturer for your entire H Frame fleet.

🏷

OEM & Custom Branding

Emboss your company logo, colour code by height, add tracking codes. We build H Frames that carry your brand identity.

🚚

Door-to-Door Logistics

Full container loading optimization, customs documentation, freight forwarding and last-mile delivery to your warehouse or site.

How to Order

4 Simple Steps to Get Your H Frame Scaffolding

1

Send Requirements

Tell us your H Frame sizes, quantity, finish and destination country. Share drawings or BOQ if available.

2

Receive Quote & Drawings

We provide detailed quotation with technical drawings for approval. Free quantity calculation service.

3

Production & Inspection

After order confirmation, production starts with QC inspections at every stage. Third-party inspection available.

4

Delivery to Your Door

We handle container loading, shipping and delivery. Track your order from factory to your warehouse.

Certified Quality

Our H Frame scaffolding meets the highest international manufacturing and safety standards.

CE

EN 1090-1

Structural Steel

ISO

3834-2

Welding Quality

9001

ISO 9001

Quality Management

SGS

BV / SGS

Third-Party Tested

FAQ

H Frame Scaffolding — Frequently Asked Questions

What is the difference between a ladder frame and a walk-through H frame?

A ladder frame has built-in horizontal rungs for climbing, commonly used by masons and plasterers. A walk-through frame has an open centre section that allows workers and materials to pass through freely, making it ideal for high-traffic facade work and long wall runs.

Which tube diameter should I choose for my H Frame scaffolding?

OD42.7mm is the standard for light-duty masonry and general access (wall thickness 2.0–2.5mm). OD48.3mm is used for medium-duty applications and higher scaffolds. For heavy-duty concrete shoring, choose OD57mm, OD60.3mm, OD76.1mm or OD89mm depending on the calculated load. Our engineering team can help you select the right specification based on your project design.

Pre-galvanized or hot dip galvanized — which is better?

Hot dip galvanized (HDG) provides far superior corrosion protection because the entire welded frame is dipped in molten zinc, coating every surface including weld joints. It is recommended for outdoor use, coastal environments and long-term projects. Pre-galvanized is more economical and suitable for indoor use, dry climates and short-term projects.

Can I get H Frame scaffolding in custom sizes?

Yes. As a manufacturer with in-house engineering, we customize H Frame dimensions including height, width, tube diameter, wall thickness, lock pin type and spacing to match your country's standards and project requirements. Send us your drawings or specifications for a custom quote.

What is the minimum order quantity (MOQ) for H Frame scaffolding?

Our standard MOQ is one 20ft container (approximately 500–800 frames depending on size). For trial orders or samples, we can accommodate smaller quantities. Contact us with your requirements for a flexible arrangement.

Do you provide technical support for H Frame scaffolding layout and quantity calculation?

Absolutely. Our engineering team provides free quantity take-off and layout design services. Send us your building dimensions, working height and load requirements, and we will calculate the exact quantity of frames, braces, jacks, decks and accessories you need — at no cost.
