Multidirectional Scaffolding System
Multi-angle modular ringlock scaffolding with 360-degree connection flexibility for complex geometric structures, industrial tanks, shipyards, bridges and facade projects.
360° Modular Scaffolding for Complex Geometry
Sino East Steel Group manufactures multidirectional scaffolding (also called andamio multidireccional) at our ISO 9001 certified factory in Tianjin, China. The system uses a ring-type rosette with 8 holes, allowing ledgers, diagonal braces, and horizontal braces to connect at any angle. This makes it ideal for curved structures, industrial tanks, shipyards, bridges, auditoriums, and facades where standard right-angle scaffolding is not enough.
8-Direction Rosette Connection
Rosette ring with 8 precisely machined holes enables 360° connections at 0°, 45°, 90° and more for complex geometry.
Wedge-Lock Speed Assembly
Self-locking wedge heads fix ledgers and braces to standards with one hammer blow — no loose couplers or threaded fittings.
Hot-Dip Galvanized 80μm
All tubes and components are hot-dip galvanized for corrosion resistance and long service life in harsh environments.
Heavy-Duty Load Capacity
Q345 steel grade construction with high-strength rosette welding supports load classes 3-5 per EN12811.
Container-Optimized Packing
Components are bundled by type and length to maximize container utilization and reduce freight cost per ton.
Global Standards Compliance
Manufactured to EN12810, EN12811, BS1139, AS/NZS 1576, and OSHA. MTC and third-party inspection available.
Multidirectional Scaffolding Components
Multidirectional Scaffolding Specifications
System Specifications
| Property | Specification |
|---|---|
| Standard / Vertical | OD 48.3mm × WT 3.25mm, Q345 steel, 8-hole rosette welded at 500mm spacing |
| Ledger / Horizontal | OD 48.3mm × WT 2.5mm, Q235/Q345, forged wedge head with self-lock function |
| Diagonal Brace | OD 48.3mm × WT 2.5mm, Q235, hot-dip galvanized, pinned wedge ends |
| Connection Angles | 0°, 30°, 45°, 60°, 90° and any intermediate angle via adjustable accessories |
| Surface Finish | Hot-dip galvanized ≥ 80μm, average 85μm per ISO 1461 |
| Steel Grade | Verticals Q345; ledgers, braces, platforms Q235 (Q345 available on request) |
| Load Class | 3–5 per EN12811 (up to 6.0 kN/m² working load depending on configuration) |
| Standard Lengths | 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, 3.0m (custom lengths available) |
| Certification | ISO 9001:2015 factory; products to EN12810/EN12811/BS1139/AS/NZS 1576/OSHA |
Multidirectional Scaffolding Parts & Sizes

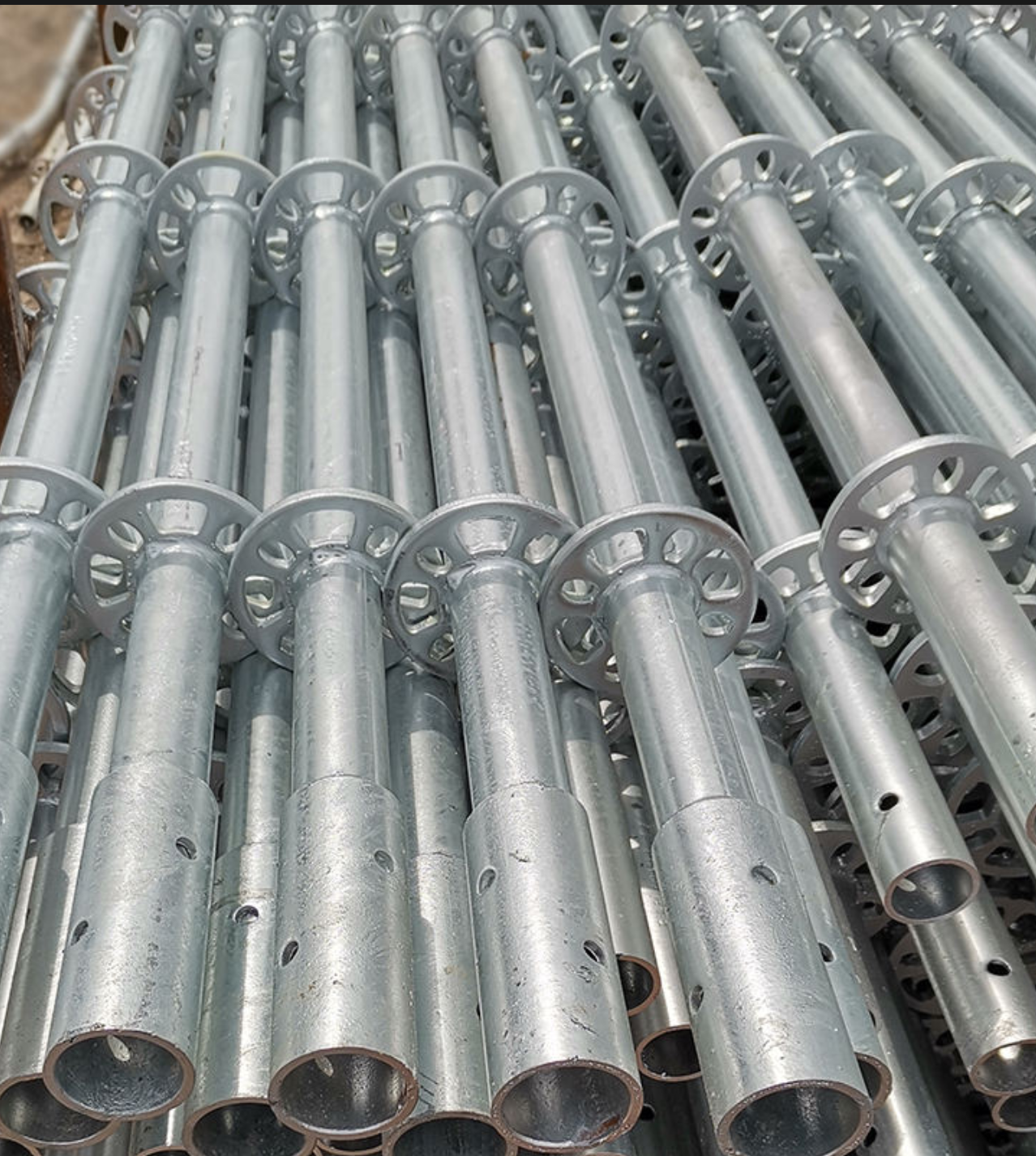

Verticals / Standards
| Code | Length | Weight |
|---|---|---|
| MDV-050 | 0.5 m | 3.2 kg |
| MDV-100 | 1.0 m | 5.4 kg |
| MDV-200 | 2.0 m | 9.6 kg |
| MDV-300 | 3.0 m | 14.3 kg |

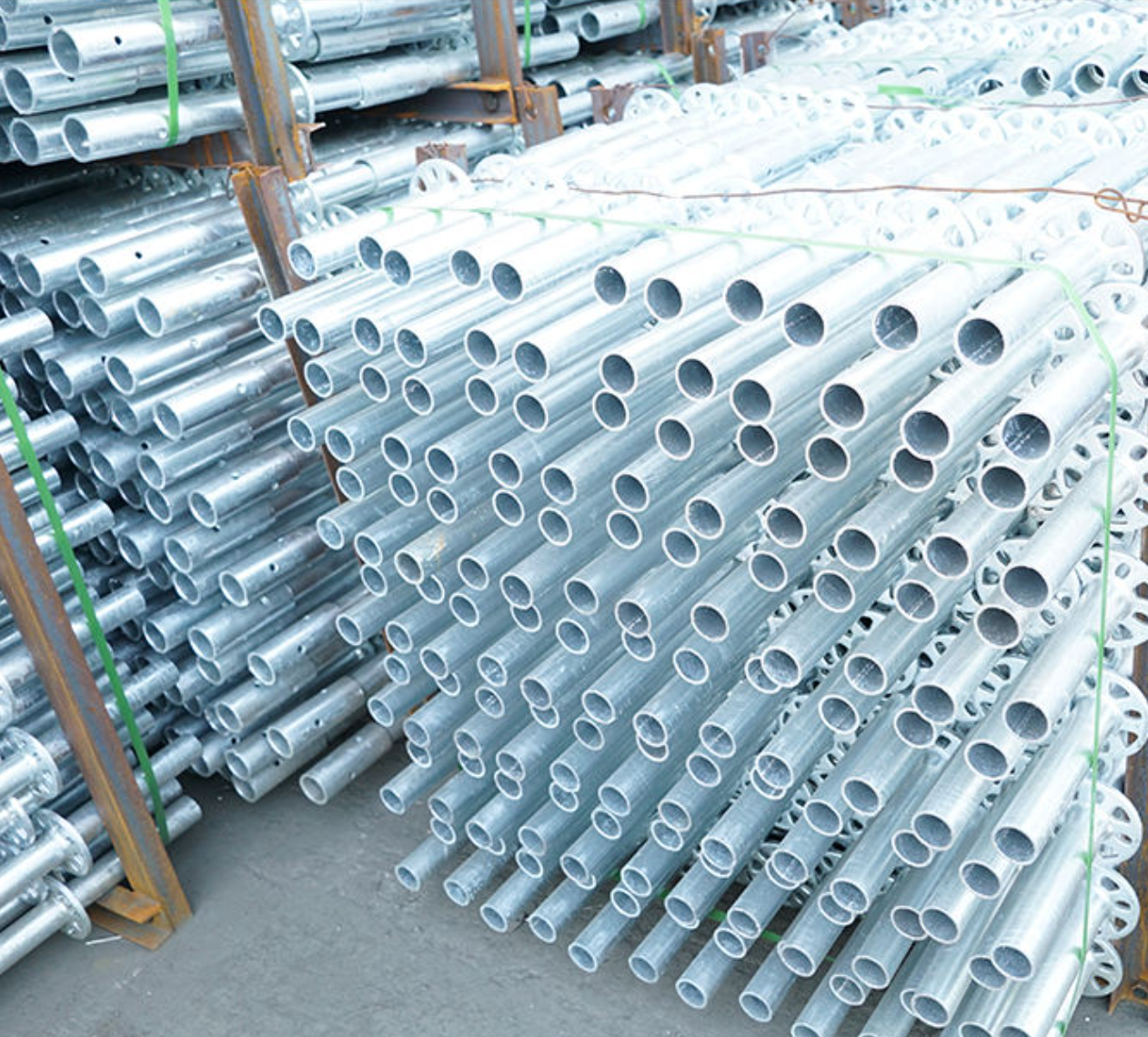

Ledgers / Horizontals
| Code | Length | Weight |
|---|---|---|
| MDL-070 | 0.7 m | 2.5 kg |
| MDL-100 | 1.0 m | 4.4 kg |
| MDL-150 | 1.5 m | 6.4 kg |
| MDL-200 | 2.0 m | 8.2 kg |
Diagonal Braces
| Code | V × H | Weight |
|---|---|---|
| MDB-070 | 1.5 × 0.7 m | 8.1 kg |
| MDB-100 | 1.5 × 1.0 m | 8.7 kg |
| MDB-150 | 2.0 × 1.5 m | 11.2 kg |
| MDB-200 | 2.0 × 2.0 m | 12.8 kg |
Accessories
| Item | Description |
|---|---|
| Base Jack | Adjustable screw jack, 0.5m / 0.6m, solid or hollow |
| Base Collar | 0.3m starter collar with first rosette |
| Steel Plank | 0.73m / 1.09m / 1.4m / 2.07m with hooks |

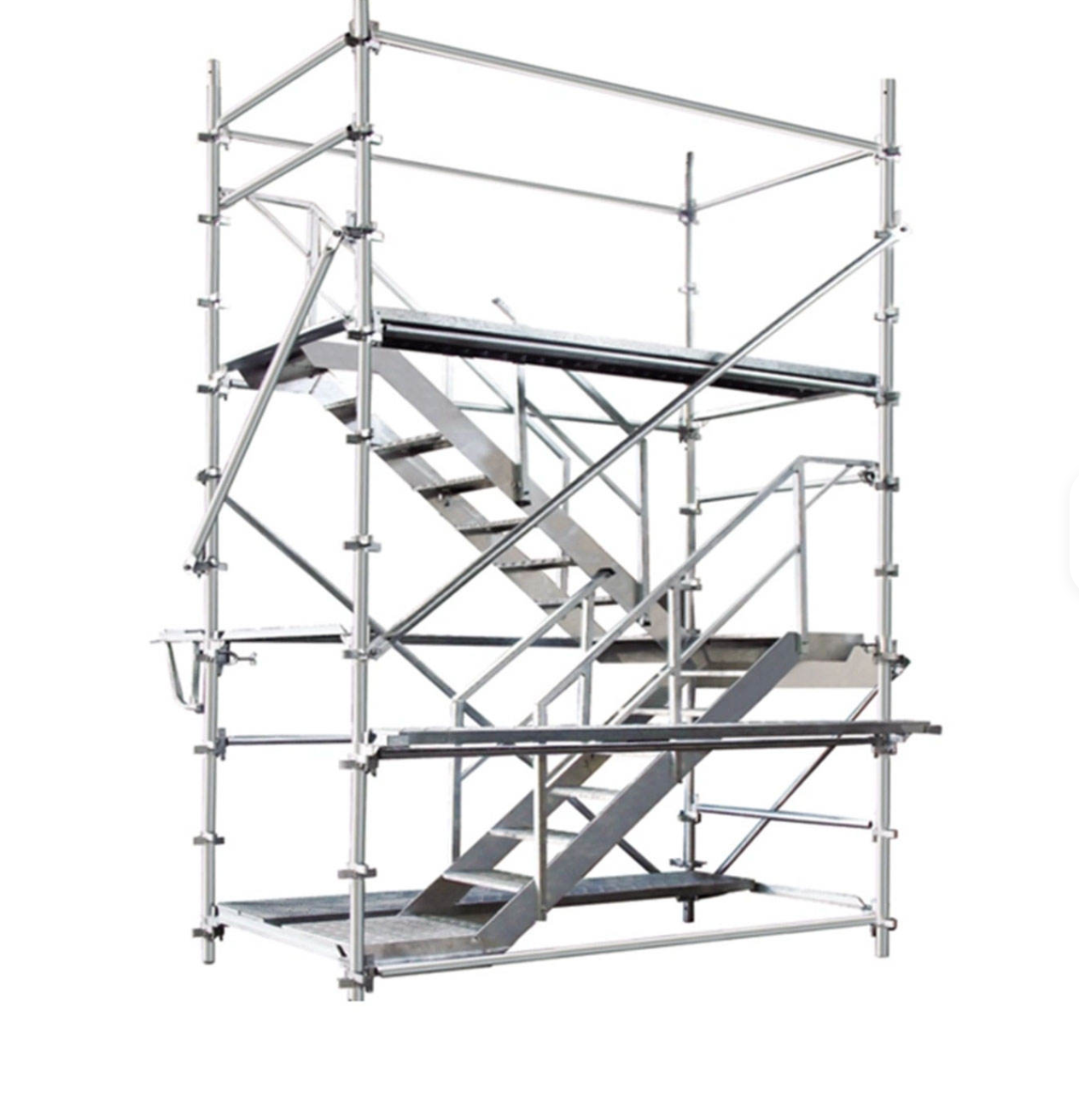

| Stair Tower | Integrated stair module with handrails |
Why Choose Sino East as Your Multidirectional Scaffolding Supplier
-
1
Certified Quality & Safety
ISO 9001, ISO 3834, EN1090, and CE certified factory. Every batch is tested in our in-house laboratory with load testing and weld inspection.
-
2
Factory-Direct Pricing
80,000 m² production facility and 50,000+ tons annual output eliminate middlemen and give you competitive ex-factory prices.
-
3
OEM & Custom Manufacturing
Custom rosette spacing, special lengths, embossed logos, and color-coded components. Send your drawings or specifications.
-
4
Global Logistics & Documentation
We handle FOB/CIF/DAP delivery, packing lists, mill test certificates, inspection reports, and customs documents.
-
5
Fast Response & Free Quotation
Our engineering team replies within 24 hours with a detailed material list, loading plan, and competitive quotation.
Quality Assurance You Can Trust
EN 1090 / EN 12810
European structural and access scaffolding standards
ISO 9001 & ISO 3834
Quality management and welding quality systems
BS 1139
British standard for tubes, fittings and couplers
Load Tested
In-house capacity verification and third-party inspection
Get Your Multidirectional Scaffolding Factory Price
Send us your project requirements, list of components, or drawings. Our engineers will prepare a tailored quotation with packing plan and delivery schedule within 24 hours.
