SINO EAST SCAFFOLDING GROUP manufactures adjustable screw jacks, base jacks, U-head jacks and hollow screw jacks for ringlock, cuplock, frame and formwork systems. Q235/Q345 steel, hot-dip galvanized, EN/BS compliant, factory-direct pricing with global delivery.
SINO EAST SCAFFOLDING GROUP is a leading scaffolding screw jack manufacturer and supplier based in Tianjin, China. We produce adjustable screw jacks, also known as scaffold leveling jacks, base jacks or jack bases, used to level and support scaffolding frames, ringlock systems, cuplock systems, steel props and formwork structures.
Our screw jacks are fabricated from high-quality Q235 or Q345 carbon steel. Each unit consists of a threaded solid or hollow spindle, a welded base plate, an adjusting nut and a handle, allowing precise height adjustment and stable load transfer to the ground. Surface finishes include hot-dip galvanizing, electro-galvanizing and painted coatings to suit different jobsite environments and corrosion-resistance requirements.
With a 50,000 m² production facility and in-house quality testing, we control every stage from raw material inspection to final packaging. We supply screw jacks to scaffolding rental companies, construction contractors, formwork wholesalers and distributors across Asia, Europe, the Middle East, Africa and the Americas.
European structural standards
Fusion welding quality
Full product coverage
Global logistics network
Browse our scaffolding screw jack product range. All photos are from our own factory and warehouse. Click any image to enlarge.

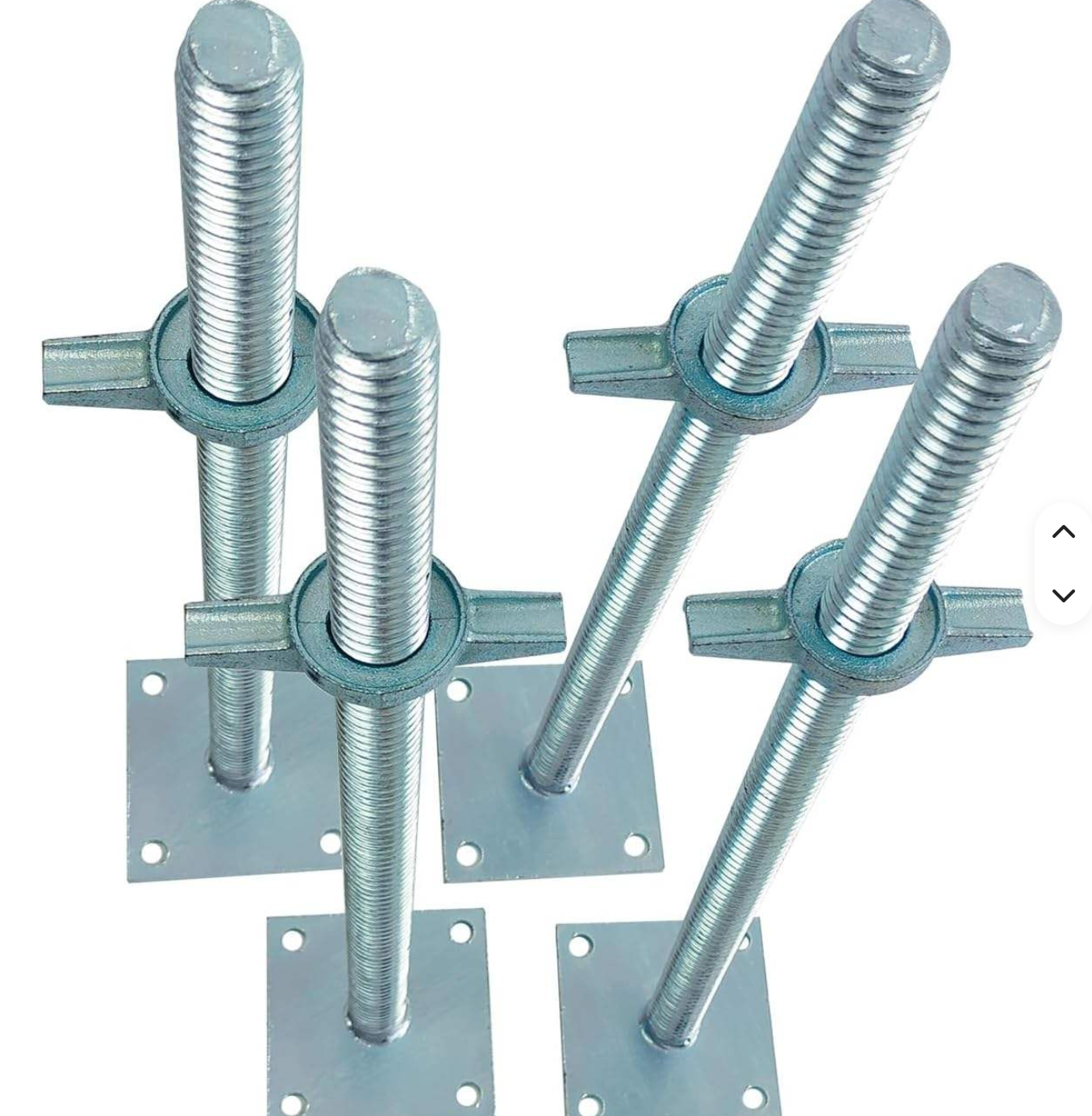

Solid spindle, square base plate

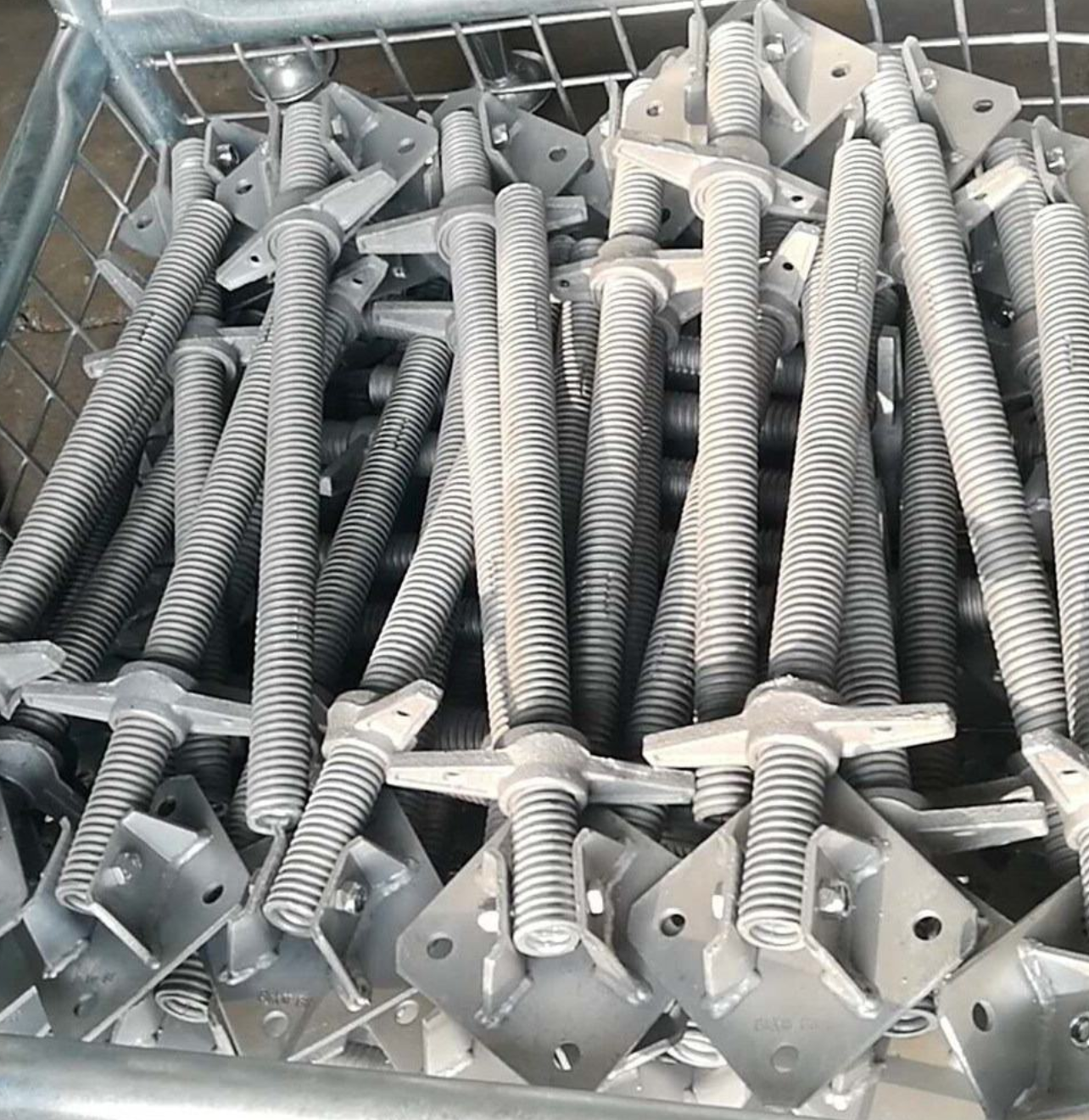

Bulk warehouse stock

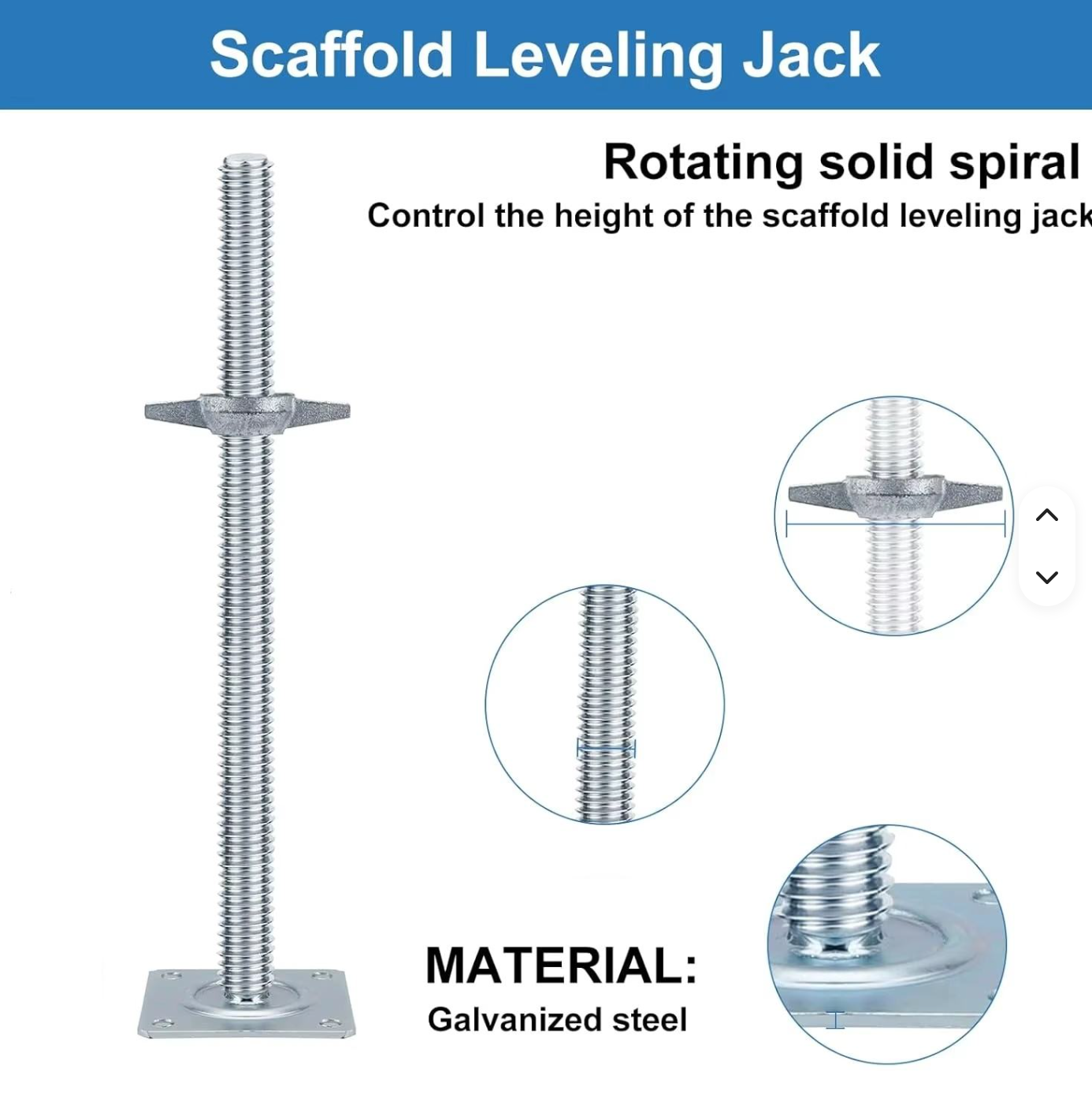

Corrosion-resistant finish

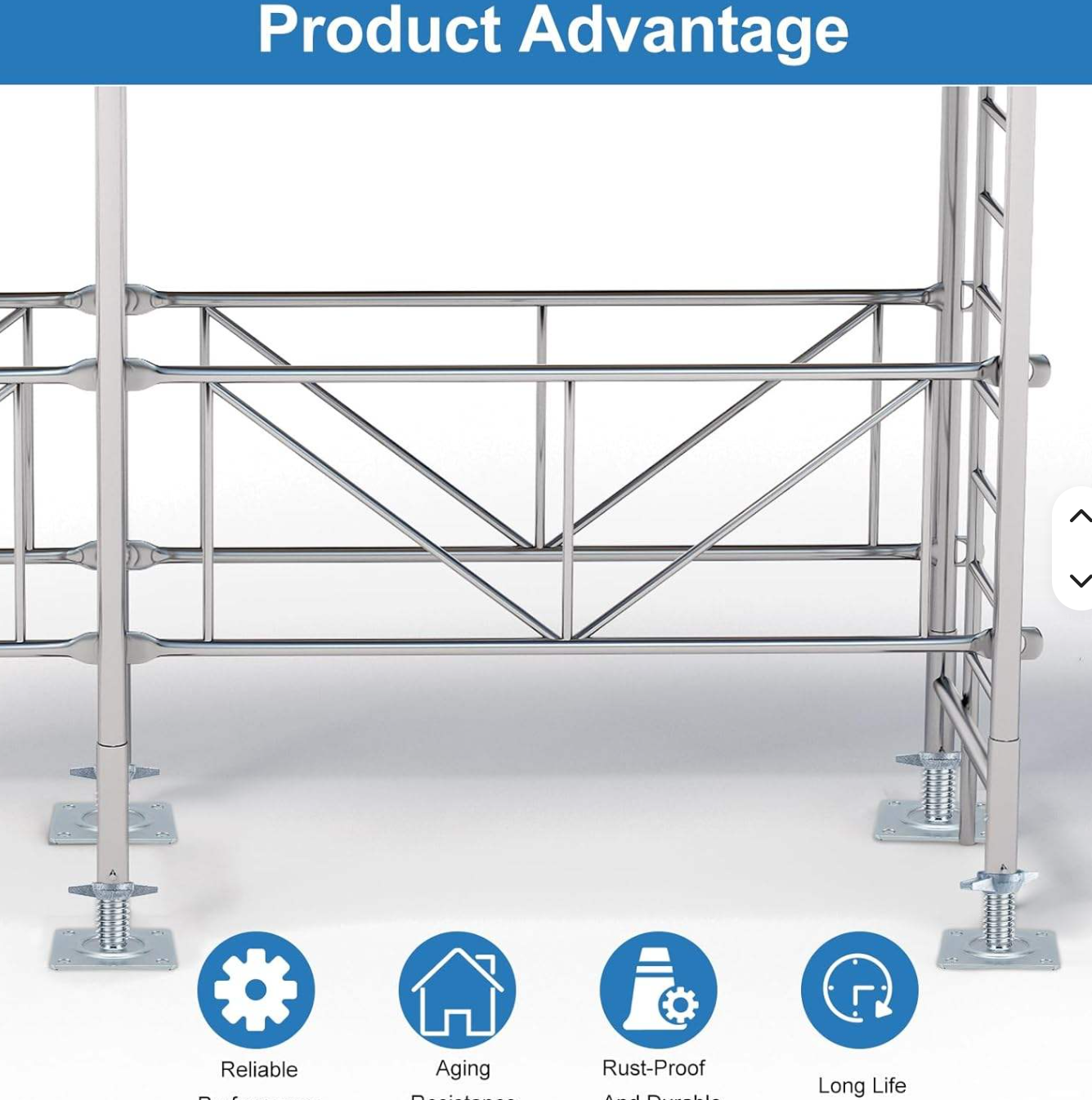

Frame support in use
Multi-site use cases
Standard sizes and load ratings for our screw jacks. Custom thread lengths, base plate sizes and finishes are available on request.
| Adjustable Screw Jack – Standard Range | |
|---|---|
| Material | Q235 / Q345 carbon steel |
| Spindle type | Solid or hollow threaded spindle |
| Spindle diameter | 34 mm, 38 mm, 40 mm (custom available) |
| Thread length | 150 mm, 200 mm, 250 mm, 300 mm, 400 mm, 600 mm |
| Base plate | 120×120 mm, 150×150 mm (square); round plate on request |
| Plate thickness | 5 mm, 6 mm, 8 mm |
| Adjusting nut | Cast iron or malleable iron handle/nut |
| Surface finish | Hot-dip galvanized / electro-galvanized / painted |
| Safe working load | Up to 35 kN (varies by spindle type and length) |
| Standards | EN 74, BS 1139, EN 1090, ISO 3834 |
| Packaging | Steel strapped bundles, packed by sea or container |
Choose the right screw jack type for your scaffolding system, load and adjustment requirements.
Heavy-duty solid threaded spindle for maximum strength and load capacity. Ideal for ringlock, cuplock and frame scaffolding base support.
Lighter-weight hollow threaded spindle for standard scaffolding applications. Cost-effective and easy to transport.
Square base plate with threaded spindle for leveling scaffolding on uneven ground. Distributes load evenly and prevents sinking.
U-shaped head at the top of the spindle to support beams, timber battens or steel props in formwork and shoring applications.
Articulated base plate or head that adjusts to sloped or angled surfaces. Maintains full contact and load distribution on uneven ground.
Hot-dip galvanized inside and outside for maximum corrosion protection. Suitable for outdoor, humid and coastal environments.
50,000 m² manufacturing facility in Tianjin with in-house threading, welding and galvanizing lines. No middlemen.
Production according to EN 74, BS 1139, EN 1090 and ISO 3834. Mill certificates and test reports available.
Customize thread length, spindle diameter, base plate size, head type, finish color and packaging with your logo.
15–25 day production lead time. Shipping from Tianjin port to construction sites worldwide by sea, rail or air.
Load testing, thread inspection, zinc coating measurement and dimensional checks before every shipment.
Our engineering team helps you select the right screw jack specification, quantity and load configuration for your project.
Base jacks for leveling and load distribution under rosette and cup joints.
U-head and base jacks supporting slabs, beams, columns and wall formwork.
Heavy-duty solid jacks for high-load temporary works and bridge decks.
Swivel and adjustable jacks for platforms, access towers and maintenance scaffolding.
Complete your scaffolding and formwork system with our related product ranges.
Solid screw jacks have a full threaded steel rod, providing higher load capacity and better resistance to bending. They are preferred for heavy-duty scaffolding and formwork. Hollow screw jacks use a threaded steel tube, making them lighter and more economical for standard-duty applications and rental fleets.
Load capacity depends on the spindle type, diameter, thread length and base plate size. Our solid screw jacks typically support up to 35 kN, while hollow screw jacks support 20–30 kN. Contact us for a detailed load table matched to your specification.
Yes. We can customize spindle diameter, thread length, base plate size and thickness, head type (U-head, flat head, swivel), material grade, surface finish and packaging. Send us your drawings or specifications and we will provide a quote and production schedule.
Hot-dip galvanizing is recommended for outdoor scaffolding, rental fleets and long-term projects because it provides the best corrosion resistance. Electro-galvanizing and painted finishes are cost-effective options for indoor or short-term use.
Standard sizes are available from one 20-foot container. Production time is usually 15–25 days after order confirmation, depending on quantity and finish. We ship from Tianjin port to destinations worldwide by sea, rail or air.
Yes. Our screw jacks are manufactured according to EN 74, BS 1139, EN 1090 and ISO 3834 welding quality requirements. We can provide test reports, mill certificates and third-party inspection certificates on request.
