Kwikstage Scaffolding System — Wedge-Lock Modular Scaffold

Fast, cost-effective wedge-lock scaffolding for residential, commercial and general construction. V-press standards with self-tightening wedge ledgers — assemble 50% faster than tube-and-coupler. EN12810/BS1139/AS1576 certified. Factory-direct from Tianjin, China.

EN12810 · BS1139 · AS1576 ISO 9001 Certified Hot-Dip Galvanized Q235 · Q345 Steel 20+ Years Factory
WhatsApp Inquiry Get a Quote
50+ CountriesExport Markets
50% Fastervs Tube & Coupler
Class 2–4EN12811 Load Rating

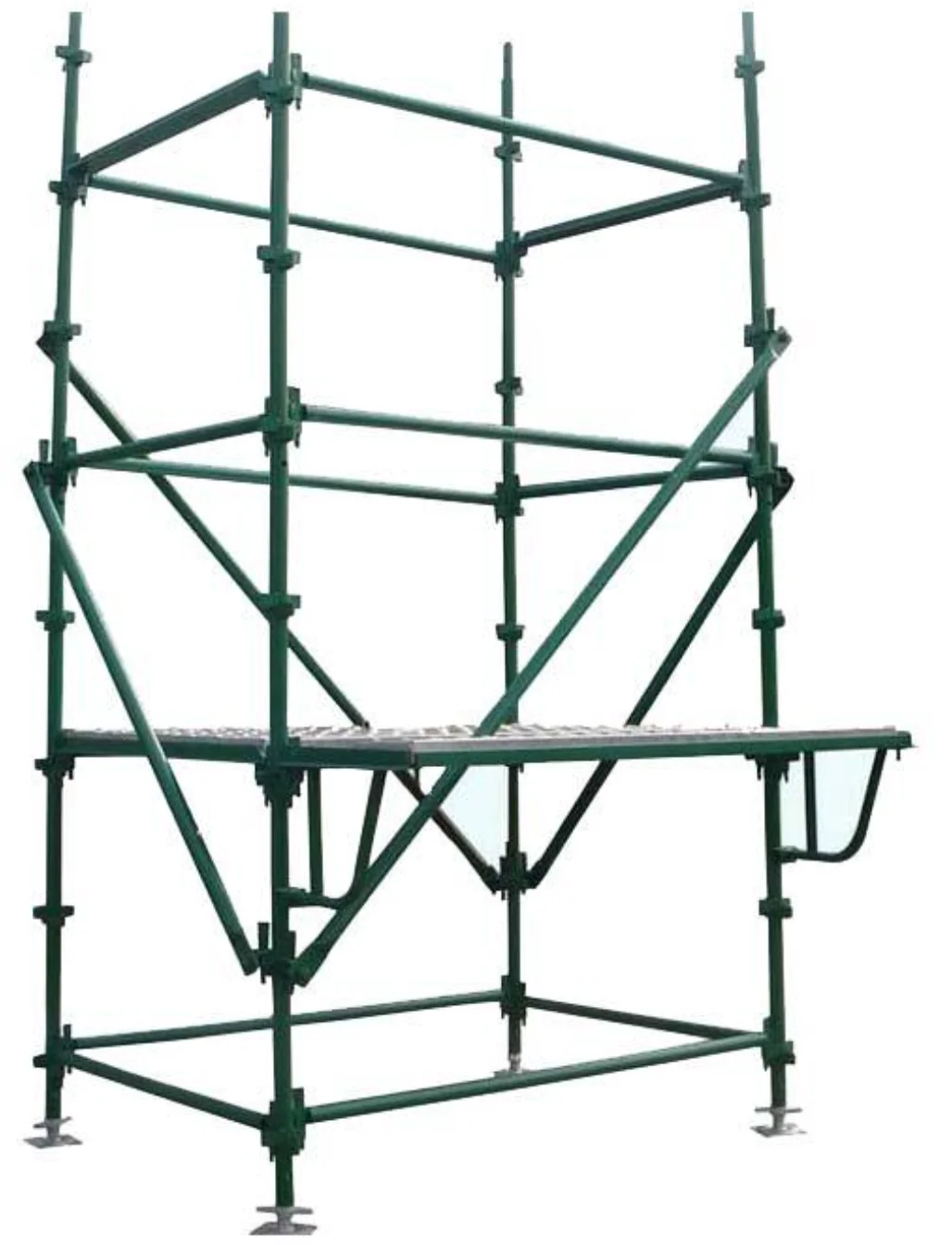

Kwikstage Scaffolding System - Wedge-lock modular scaffold tower with steel plank platform

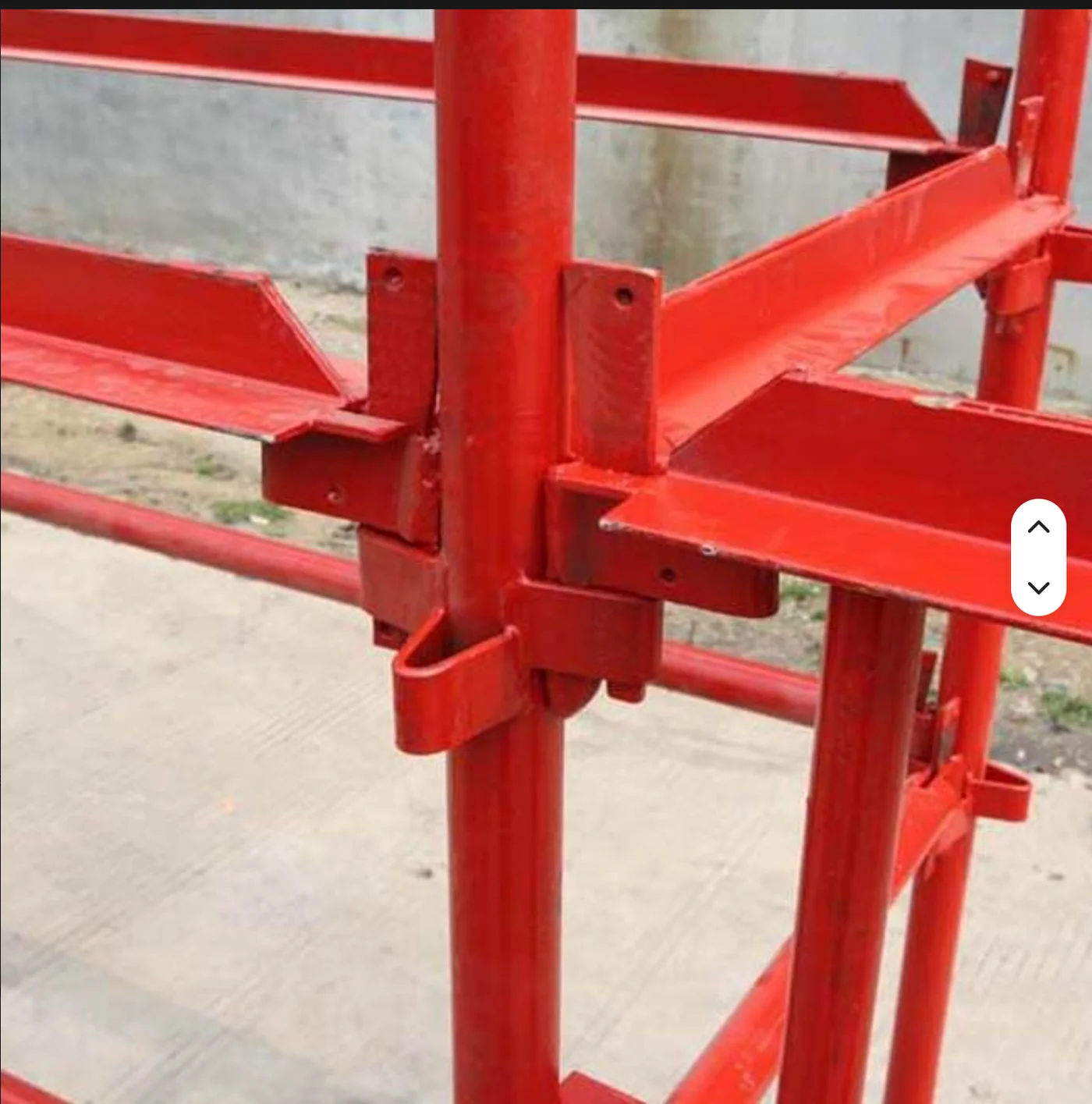

Kwikstage V-press wedge-lock connection detail
EN12810 Certified
🌏 Popular in:
AU Australia ZA South Africa NZ New Zealand UK United Kingdom UAE Dubai/UAE SG Singapore MY Malaysia NG Nigeria

What Is Kwikstage Wedge-Lock Scaffolding?

Kwikstage (also known as Quick Stage or Wedge-Lock Scaffold) is a modular scaffolding system that uses V-shaped pressings on vertical standards at 500mm intervals. Ledgers and transoms have forged wedge connectors that slide into these pressings — a single hammer strike locks the wedge in place. The heavier the load, the tighter the wedge grips.

This self-tightening wedge-lock mechanism makes Kwikstage 40–50% faster to assemble than traditional tube-and-coupler scaffolding — no loose fittings, no bolts, no specialized tools. It is the preferred choice for residential and commercial construction in Australia, South Africa, the UK, and Southeast Asia.

Sino East manufactures Kwikstage scaffolding from Q235 and Q345 structural steel with hot-dip galvanized (HDG) finish (minimum 80μm zinc coating). Every component is tested to EN12810, BS1139, and AS/NZS 1576 standards in our in-house laboratory.

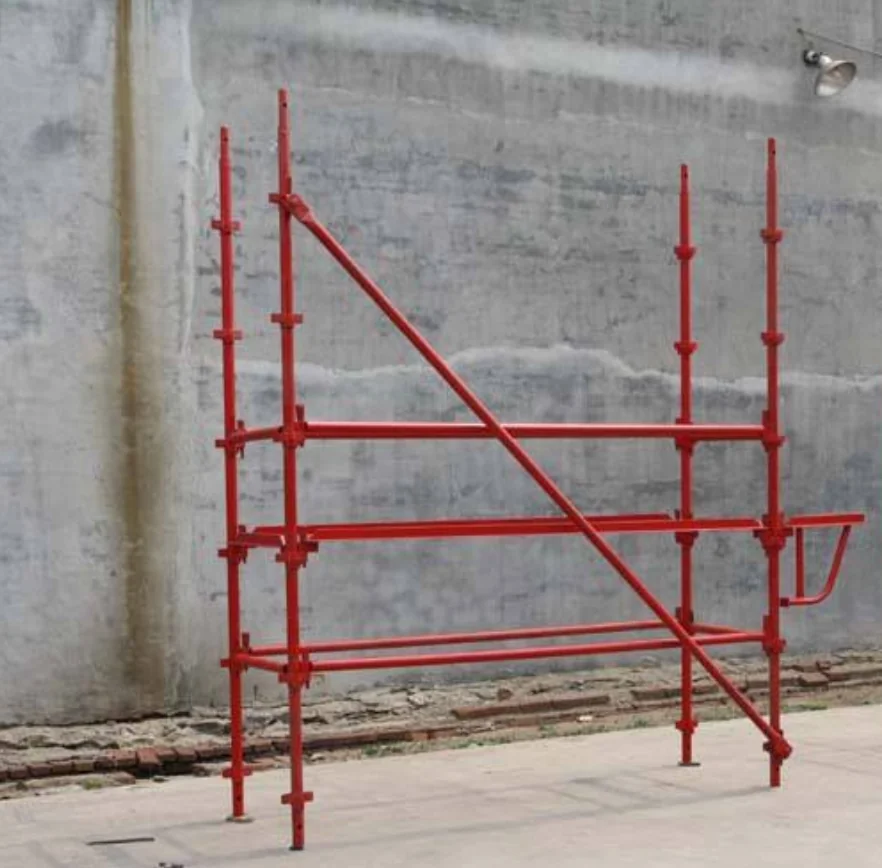

Kwikstage wedge-lock scaffolding frame with diagonal brace and hop-up bracket
Kwikstage Wedge-Lock Frame — Diagonal Brace & Hop-Up Bracket
System Comparison

Kwikstage vs Ringlock vs Cuplock

How does the Kwikstage wedge-lock system compare to other modular scaffolding types? Here is a side-by-side analysis.

FeatureKwikstageRinglockCuplock
Connection TypeV-Press Wedge-LockRosette Wedge-LockCup & Blade
Connections per Node4 directionsUp to 8 directions4 directions
Assembly SpeedVery Fast (50% faster)Fastest (50%+ faster)Fast (40% faster)
Cost$$ (Most Economical)$$$ (Highest)$$ (Moderate)
Steel GradeQ235 / Q345Q345 / S355Q235 / Q345
Load Class (EN12811)Class 2–4Class 3–6Class 2–4
Container LoadingExcellent (compact)GoodGood
Best ForResidential, Commercial, GeneralHeavy IndustrialFormwork Slab Support
Key MarketsAustralia, South Africa, UK, NZEurope, Middle East, AmericasMiddle East, India, Africa
Tool RequiredHammer onlyHammer onlyHammer only
Reusability100+ cycles100+ cycles80+ cycles
Why Kwikstage

Key Advantages of Our Wedge-Lock System

Designed for speed, safety, and cost-efficiency — here is why contractors worldwide choose Kwikstage.

Self-Tightening Wedge Lock

The wedge mechanically tightens under load — no loosening over time. A single hammer strike locks or releases each connection. No bolts, no nuts, no loose fittings.

50% Faster Assembly

Compared to tube-and-coupler scaffolding. No measuring, no wrenches — wedge-ledgers snap into V-pressings and lock with a hammer. Complete a standard bay in under 2 minutes.

EN12810 & BS1139 Certified

Full compliance with European, British, and Australian scaffolding standards. EN 10204 Type 3.1 material certificates with every shipment. SGS/BV/TUV inspection available.

Ideal for Residential & Commercial

Cost-optimized for projects that don't require ultra-heavy-duty load ratings. Standard components suit 90% of general construction access, rendering, and light masonry work.

Container-Optimized Shipping

Compact V-press design enables dense packing — typically 15–20% more components per container than ringlock. Lower freight cost per ton with mixed-component loading plans.

Multiple Regional Standards

We manufacture Australian (AS/NZS1576), South African, and UK/European Kwikstage variants. Each uses region-specific dimensions and steel grades — all from one factory.

System Components

Kwikstage Scaffolding Components

All components manufactured from Q235/Q345 steel with hot-dip galvanized finish. Each part is individually tested to EN12810 and BS1139 standards.

Standard (Vertical Post)

OD 48.3mm · WT 3.25mm

V-pressings at 500mm intervals. Lengths: 0.5m–3.0m. Available in Q235 and Q345 steel.

Ledger (Horizontal Rail)

OD 48.3mm · WT 3.2mm

Forged wedge end connectors. Lengths: 0.6m–3.0m. Self-locking under load.

Transom (Cross Beam)

50×50mm Angle · 0.56m–2.4m

L-section steel transoms support batten boards. Hot-dip galvanized for durability.

Diagonal Brace

OD 48.3mm · WT 3.2mm

Stabilizes structure against lateral loads. Lengths: 1.83m–3.66m. Clip-end connection.

Base Jack (Screw Jack)

OD 38mm · Adjustable Height

Threaded adjustment for uneven ground. 600–800mm range. Heavy-duty hexagonal nut.

Batten Board (Plank)

238×57mm · 0.74m–2.42m

Anti-slip steel boards with end hooks. Designed for rapid placement on transoms.

Tie Bar

30×30mm Square · 1.2m–2.4m

Connects scaffold frame to building structure for wind resistance and stability.

Stair Stringer

Aluminum Alloy · Custom Length

Lightweight aluminum stair system for multi-level access. Includes handrails and steps.

Technical Data

Detailed Specifications & Weight Tables

Precision-manufactured to EN12810 tolerances. All weights shown for Q235 steel with hot-dip galvanized finish.

Standards (Vertical Posts)

Size (OD × Length)Wall ThicknessWeight (KG)Weight (LBS)
OD 48.3mm × 0.5m3.25mm3.06.6
OD 48.3mm × 1.0m3.25mm6.213.7
OD 48.3mm × 1.5m3.25mm8.518.7
OD 48.3mm × 2.0m3.25mm11.725.8
OD 48.3mm × 2.5m3.25mm14.431.7
OD 48.3mm × 3.0m3.25mm17.237.9

Ledgers (Horizontal Rails)

Size (OD × WT × Length)Steel GradeWeight (KG)Weight (LBS)
OD 48.3×3.2mm × 0.76mQ2354.29.3
OD 48.3×3.2mm × 1.2mQ2355.612.3
OD 48.3×3.2mm × 1.5mQ2356.514.3
OD 48.3×3.2mm × 1.8mQ2357.015.4
OD 48.3×3.2mm × 2.4mQ2359.220.3
OD 48.3×3.2mm × 3.0mQ23510.823.8

Diagonal Braces

Size (OD × WT × Length)TypeWeight (KG)Weight (LBS)
OD 48.3×3.2mm × 1.83m (6')Standard Bay8.6519.1
OD 48.3×3.2mm × 2.75m (9')Wide Bay12.327.1
OD 48.3×3.2mm × 3.53m (11'6")Extra Wide15.333.7
OD 48.3×3.2mm × 3.66m (12')Maximum Bay15.834.8

Batten Boards (Planks)

Size (Profile × Length)MaterialWeight (KG)Weight (LBS)
238×57mm × 0.76m (2'6")Steel Q2356.213.7
238×57mm × 1.2m (4')Steel Q2359.120.1
238×57mm × 1.8m (6')Steel Q23513.529.8
238×57mm × 2.4m (8')Steel Q23517.137.7

Transoms & Additional Components

ComponentSizeWeight (KG)Weight (LBS)
Standard Transom50×50mm × 0.6m (2')3.37.3
Standard Transom50×50mm × 0.8m (2'8")5.011.0
Standard Transom50×50mm × 1.2m (4')9.721.4
Standard Transom50×50mm × 1.8m (6')13.128.9
Return Transom50×50mm × 0.8m (2'8")8.518.7
Return Transom50×50mm × 1.27m (4'2")13.128.9
Loading Bay Transom50×50mm × 2.44m (8')33.072.8
Ladder Access Transom50×50mm × 1.27m (4'2")10.022.0
Internal Corner Frame530mm13.730.2
Toe Board ClipStandard0.81.8
End Toe Board BracketStandard1.32.9
Tie Bar30×30mm × 1.2m (4')3.88.4
Tie Bar30×30mm × 1.8m (6')5.411.9
Tie Bar30×30mm × 2.4m (8')7.215.9
1-Board Hop-Up BracketStandard2.35.1
2-Board Hop-Up BracketStandard6.414.1
3-Board Hop-Up BracketStandard9.120.1
Regional Standards

Australian, South African & UK Kwikstage Variants

Sino East manufactures all major regional Kwikstage standards. Each variant is tailored to local market requirements.

🇦🇺

Australian Kwikstage (AS/NZS1576)

Thumb-wedge pin mechanism with OD 48.3×3.2mm or 4.0mm wall thickness. Standard bay spacing: 0.56m, 0.73m, 1.27m, 1.83m, 2.44m. Manufactured in S235/S355 steel with hot-dip galvanized finish. Compliant with WorkSafe Australia requirements. All welded connections fully tested.

AS/NZS1576 S235/S355 WorkSafe Thumb Wedge
🇿🇦

South African Kwikstage (SANS 10085)

Wedge-C pressing mechanism with OD 48.3×3.35mm wall thickness. Standard spacing: 0.6m, 0.9m, 1.294m, 1.5m, 2.0m, 2.5m. Manufactured in S355 structural steel. Heavy-duty variant for African construction conditions. Surface treatment available in HDG or paint finish.

SANS 10085 S355 Wedge-C 3.35mm WT
🇬🇧

UK/European Kwikstage (EN12810/BS1139)

Standard V-press wedge-lock with OD 48.3×3.25mm wall thickness. Lengths: 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, 3.0m. Manufactured from Q235 steel — upgrade to Q345 for high-rise projects. Full EN10204 Type 3.1 material certification. CE marked under EN1090-1.

EN12810 BS1139 EN1090 CE Q235/Q345
🇮🇩

Southeast Asian Kwikstage

Top-cup sleeve connector variant with OD 48.3×4.0mm heavy-wall tube in S355 steel. Spacing: 0.61m, 0.915m, 1.219m, 1.524m, 1.829m, 2.44m. Extra corrosion protection for tropical climates. Popular in Indonesia, Malaysia, Thailand, and Philippines markets.

S355 Steel 4.0mm WT Tropical Grade Top-Cup
Assembly Guide

How to Assemble Kwikstage Scaffolding

Simple 11-step process — no specialized tools required. Standard crew of 2–3 workers.

1

Set Out Base Jacks

Place base jacks at grid intersections on level ground. Adjust to rough height.

2

Install Starter Standards

Insert the first row of standards onto base jacks. Ensure V-pressings face the correct direction.

3

Connect Ledgers

Slot wedge-ledgers into V-pressings at working height. Hammer-wedge until tight.

4

Place Transoms

Position transoms between ledgers at plank-support intervals. Hook ends onto ledger tubes.

5

Lay Batten Boards

Drop batten boards onto transoms. End hooks lock boards in place automatically.

6

Level the Bay

Adjust base jack heights until ledgers and transoms are level. Use a spirit level.

7

Install Diagonal Braces

Attach diagonal braces to stabilize the structure against lateral movement.

8

Add Second Lift

Insert upper standards, connect ledgers and transoms for the next working level.

9

Place Upper Planks

Lay second-level batten boards and install guardrails and mid-rails.

10

Install Toe Boards

Fit toe boards around all working platforms for falling-object protection.

11

Tie to Structure

Install tie bars every 4m vertically and 6m horizontally. Continue upward.

Applications

Where Kwikstage Scaffolding Excels

From single-family home renovations to multi-story commercial builds, Kwikstage adapts to diverse project requirements.

Residential Construction

Single-family homes, townhouses, low-rise apartments. Quick setup and teardown between sites.

Commercial Facade Access

Office buildings, retail centers, hotel renovations. Cantilever and hop-up bracket options for complex facades.

Concrete Slab Support

Deck beam and infill beam configuration for formwork support. U-head jacks for precise soffit level adjustment.

Mobile Scaffold Towers

Up to 7.5m height with casters. Lightweight aluminum stair and platform options for maintenance crews.

Loading Bay Platforms

8'×8' loading platforms with heavy-duty transoms. 33KG loading bay transoms for material handling.

Stair Access Towers

Aluminum stair stringer and step kits. Safe multi-level access for workers and light materials.

Load Test Data

Verified Load-Bearing Capacity

All load tests conducted in our ISO-certified in-house laboratory. Test reports available upon request.

Destructive Load Testing — EN12811 Standard

Test ItemUltimate LoadWorking Load LimitSafety Factor
Batten Board (238×57mm)17.38 KN5.5 KN3.16:1
Base Jack (OD 38mm)124–133.2 KN40 KN3.1:1
Single Leg (3m Standard)67.49 KN20 KN3.37:1
Single Tower (4-leg Bay)367 KN110 KN3.34:1
Ledger Wedge Connection28.5 KN9.3 KN3.06:1
Diagonal Brace Clip18.2 KN6.0 KN3.03:1

Maximum Structure Heights (per EN12811)

ConfigurationMaximum HeightTie Spacing (V×H)Notes
Double-Row Independent50m4m × 6mStandard access scaffold
Birdcage (Full Area)36mN/AFormwork & slab support
Mobile Tower (Casters)7.5mN/AOutdoor: 2.5× min base; Indoor: 3.5× min base
Loading Platform20m4m × 4mDesignated load-rated bays
Quality Assurance

Certifications & Standards Compliance

Every component is manufactured and tested to international scaffolding standards.

EN

EN12810

Facade scaffolds — structural design

EN

EN12811

Equipment for temporary works

BS

BS1139

British scaffolding standard

AS

AS/NZS1576

Australian scaffolding code

SA

SANS 10085

South African scaffolding

CE

EN1090-1

Steel structures — CE marking

ISO

ISO 9001

Quality management system

ISO

ISO 3834-2

Fusion welding quality

3.1

EN10204 3.1

Material test certificates

SGS

SGS / BV / TUV

Third-party inspection

HDG

80μm HDG

Hot-dip galvanized to EN1461

QA

Load Tested

In-house lab verified

FAQ

Kwikstage Scaffolding — Frequently Asked Questions

Answers from our engineering and sales teams. Need more detail? Contact us directly.

What is Kwikstage scaffolding and how does the wedge-lock mechanism work?
Kwikstage is a modular wedge-lock scaffolding system where standards (vertical tubes) have V-shaped pressings at 500mm intervals. Ledgers and transoms have forged wedge connectors that slide into these V-pressings and lock by hammering the wedge down. This creates a self-tightening mechanical connection — the heavier the load, the tighter the wedge locks. Assembly is 40–50% faster than traditional tube-and-coupler scaffolding, requiring only a hammer for installation.
What is the minimum order quantity (MOQ) for Kwikstage scaffolding?
Standard MOQ is one 20ft container (22–28 tons depending on component mix). We also support LCL (less than container load) trial orders starting from 1 ton. Mixed container quotations can be provided to optimize shipping costs — combining standards, ledgers, transoms, braces, and accessories in a single container. Contact our sales team with your project requirements for a customized loading plan.
What finishes are available — hot-dip galvanized or painted? Which is better?
We offer three finish options: (1) Hot-dip galvanized (HDG) with minimum 80μm zinc coating — 20+ years outdoor service life, no touch-ups needed, the standard for export markets. (2) Pre-galvanized — thinner zinc layer, suitable for indoor and light-duty use. (3) Painted finish — lower upfront cost, 2–10 year lifespan, requires periodic touch-up every 3–6 months. For Australian, UK, and Middle East markets, HDG is strongly recommended and is our standard export finish. The long-term economics favor HDG — it eliminates repainting costs and extends service life by 3–5× compared to painted finish.
How does Kwikstage compare to Ringlock and Cuplock scaffolding systems?
The three systems serve different niches: Kwikstage uses 4-direction V-press wedge-lock — simple, cost-effective, ideal for residential and commercial construction. Lowest purchase cost per ton. Ringlock uses 8-direction rosette connections — most versatile, highest load capacity (Class 3–6), best for heavy industrial and complex geometry. Highest cost. Cuplock uses cup-and-blade mechanism — excellent for formwork slab support and general construction. Mid-range cost. For most general construction projects, Kwikstage offers the optimal balance of speed, cost, and simplicity.
What is the typical delivery time for a Kwikstage scaffolding order?
Typical production time is 15–30 days after deposit confirmation, depending on order volume and current production queue. Ocean freight takes 20–45 days depending on the destination port. Door-to-port delivery typically completes within 6–10 weeks total. Expedited production (10–15 days) is available for urgent projects at a surcharge. Air freight is available for small trial orders.
Can you manufacture Kwikstage to Australian (AS/NZS1576) or South African specifications?
Yes — we manufacture all three major regional variants: Australian (AS/NZS1576 with thumb-wedge pin and 3.2mm/4.0mm wall thickness), South African (SANS 10085 with wedge-C mechanism and 3.35mm wall thickness), and UK/European (EN12810/BS1139 with standard V-press and 3.25mm wall thickness). Each variant uses region-specific steel grades, dimensions, and wedge designs. Simply specify the target market when requesting a quote, and we will manufacture to that standard.
