Steel Scaffolding Planks & Walk Boards

Steel Scaffolding Plank Manufacturer & Supplier in China

Sino East Steel Group manufactures a complete range of steel scaffolding planks for frame, ringlock, cuplock, and kwikstage systems. Hook-on planks, walk-through boards, and galvanized catwalk planks with anti-slip surfaces. BS1139, EN12811 & AS1577 compliant. Factory-direct pricing, global delivery to 50+ countries.

15+Plank Specifications
BS1139 / EN12811Certified Standards
65,000 m²Factory Facility
50+Export Countries

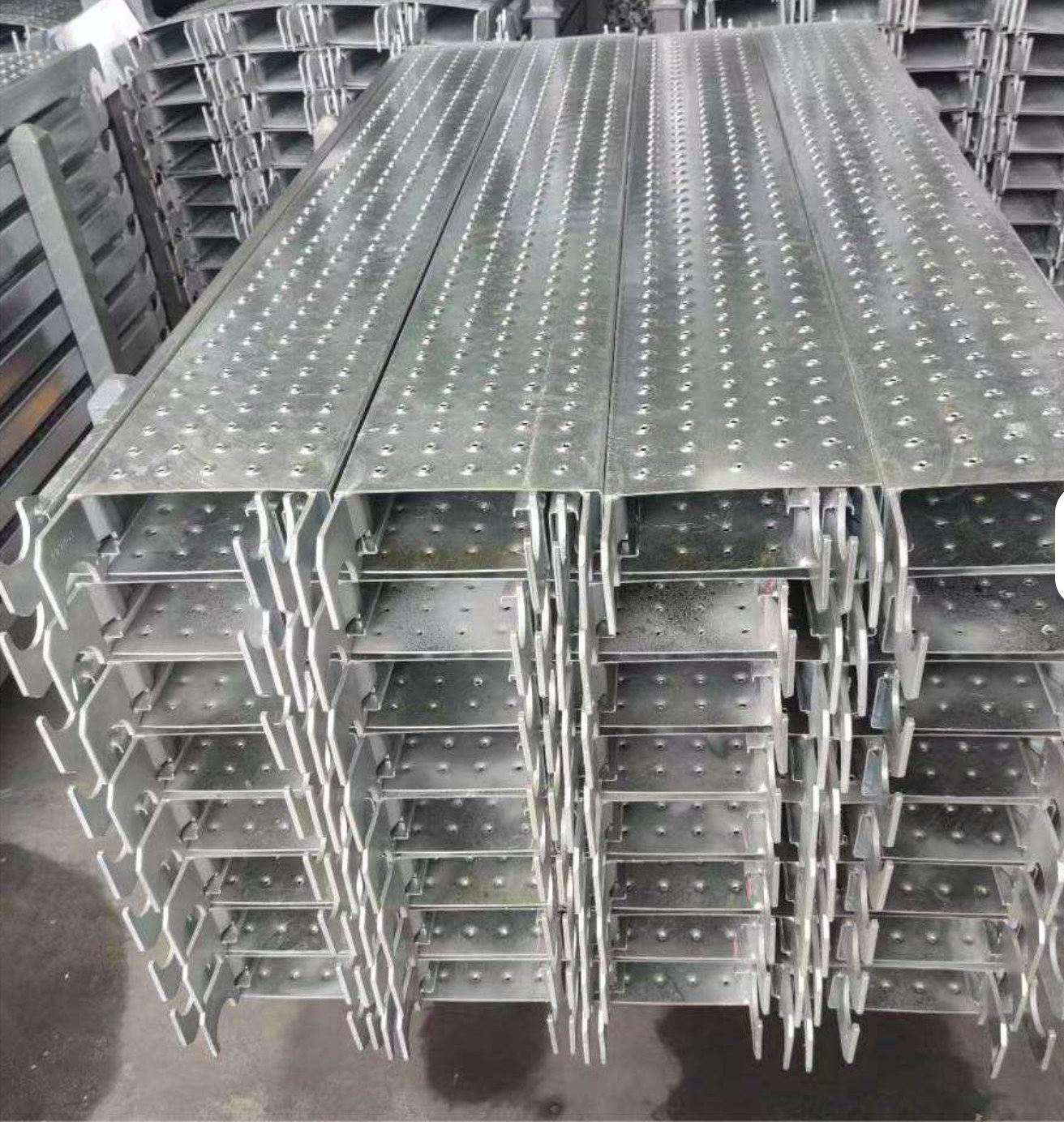

Hook-On Steel Scaffolding Plank - Sino East Manufacturer
Hook-on steel plank view
Hook-On Steel Plank

Hook-On Steel Scaffolding Plank

Welded Hooks · Anti-Slip Surface · 1.8–4.0m

The hook-on steel plank is the most widely used scaffolding plank for frame and system scaffolding. Precision-welded steel hooks at both ends drop directly onto the ledger or transom, allowing tool-free installation and removal. The formed steel deck features an embossed anti-slip pattern that provides secure footing for workers in all weather conditions, making it the preferred working platform on construction sites worldwide.

  • Welded end hooks for fast, tool-free installation on frame & system scaffolding
  • Embossed anti-slip surface pattern for safe footing in wet and oily conditions
  • Formed from high-strength Q235/Q345 steel plate (1.5mm–3.0mm thickness)
  • Hot-dip galvanized or pre-galvanized finish for long-term corrosion resistance
  • Available in widths 210mm–500mm and lengths 1.0m–4.0m
Ask A Price → WhatsApp Us
Steel Plank Board - Galvanized Scaffolding Plank Deck
Steel plank board view
Steel Plank Board

Galvanized Steel Plank Board

Flat Deck · Heavy Gauge · Multi-System Compatible

Our galvanized steel plank board provides a solid, flat working surface for scaffolding platforms where maximum deck coverage and load distribution are required. Manufactured from heavy-gauge steel with reinforced edge flanges, these boards resist deflection under load and are compatible with frame, cuplock, and ringlock systems. The galvanized finish ensures years of service even in corrosive environments.

  • Heavy-gauge steel construction for minimal deflection under load
  • Reinforced edge flanges for structural rigidity and safe edge profile
  • Hot-dip galvanized to EN ISO 1461 for maximum corrosion protection
  • Compatible with frame, cuplock, ringlock, and kwikstage scaffolding
  • Engineered to EN12811 load classes for reliable working platforms
Ask A Price → WhatsApp Us

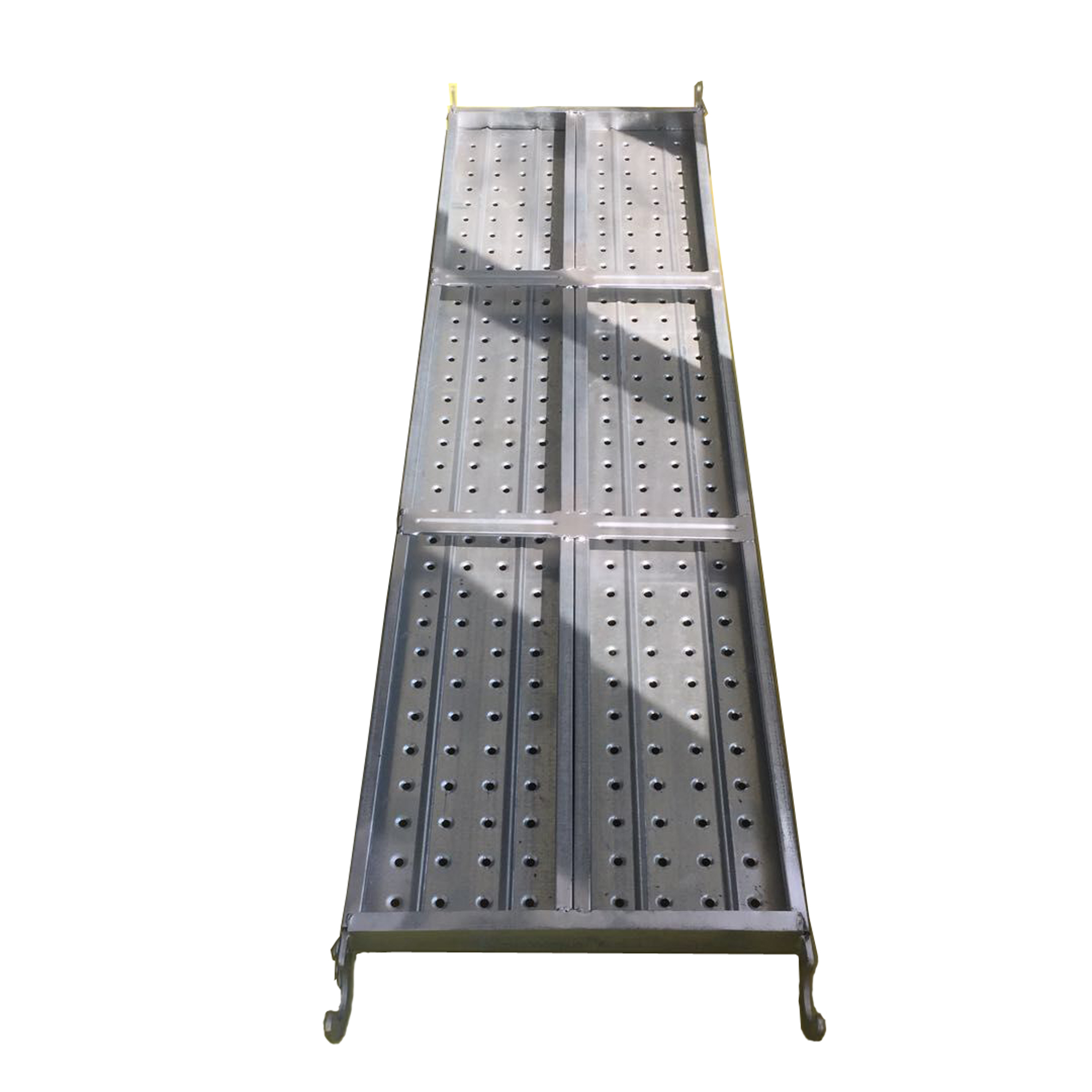

Galvanized Scaffolding Plank - Anti-Slip Steel Plank
Galvanized scaffolding plank view
Galvanized Scaffolding Plank

Galvanized Scaffolding Plank with Hooks

Pre-Galvanized · Lightweight · Rental Fleet Grade

This galvanized scaffolding plank combines a lightweight design with the durability needed for rental fleet service. Pre-galvanized steel construction provides consistent corrosion protection at an economical price point, while the formed anti-slip deck and welded hooks deliver reliable performance across repeated rental cycles. An excellent choice for scaffolding rental companies and contractors seeking long service life at controlled cost.

  • Pre-galvanized steel for economical corrosion protection
  • Lightweight design reduces handling effort and shipping cost
  • Welded hooks fit standard frame and system scaffold ledgers
  • Anti-slip embossed surface for worker safety
  • Engineered for repeated assembly cycles in rental applications
Ask A Price → WhatsApp Us

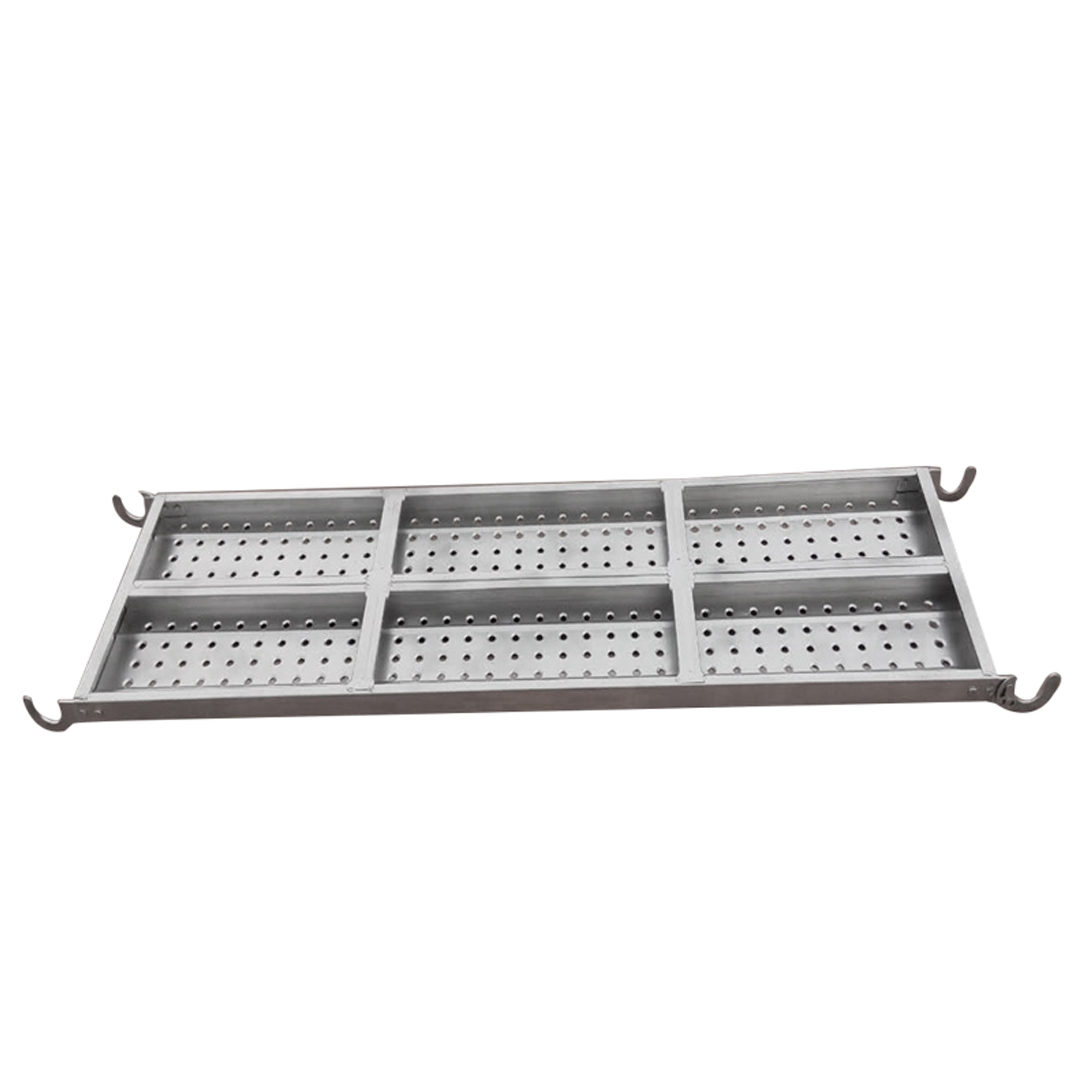

Scaffolding Walking Board - Catwalk Steel Plank
Walking board view 1 Walking board view 2
Scaffolding Walking Board

Scaffolding Walking Board / Catwalk Plank

Full-Bay Span · Anti-Slip Deck · Wide Platform

The scaffolding walking board (catwalk plank) is designed to span the full bay width, creating a continuous, secure walking platform for workers and material movement. The wider deck profile and enhanced anti-slip surface provide sure footing even when carrying materials. These boards are the ideal solution for creating safe access walkways and main working levels on large scaffolding structures.

  • Full-bay span creates continuous walkway without gaps
  • Wider deck profile for comfortable worker and material passage
  • Enhanced anti-slip surface for safe movement in all conditions
  • Reinforced underside ribs minimize deflection under point loads
  • Available in hook-on and flat-end configurations to suit your system
Ask A Price → WhatsApp Us
Technical Specifications

Steel Scaffolding Plank Specifications

Standard specifications for our most-requested plank types. Custom widths, lengths, thicknesses, and hook configurations are available on request — contact our engineering team with your requirements.

Plank Type Width Length Thickness Material Finish Standard
Hook-On Steel Plank 240 mm 2000–3000 mm 1.8 mm Q235 Steel Pre-Galvanized BS1139 / EN12811
Hook-On Steel Plank (HD) 320 mm 2000–3000 mm 2.0 mm Q345 Steel Hot-Dip Galvanized BS1139 / EN12811
Steel Plank Board 450 mm 2000–4000 mm 2.5 mm Q235 Steel Hot-Dip Galvanized EN12811
Galvanized Plank (Light) 210 mm 1000–3000 mm 1.5 mm Q235 Steel Pre-Galvanized EN12811
Walking Board / Catwalk 500 mm 2000–3000 mm 2.0 mm Q345 Steel Hot-Dip Galvanized BS1139 / EN12811
Ringlock System Plank 320 mm 1090–3090 mm 2.0 mm Q235 Steel Hot-Dip Galvanized EN12811
Cuplock System Plank 320 mm 1000–3000 mm 2.0 mm Q235 Steel Pre-Galvanized EN12811
Kwikstage System Plank 240 mm 1300–2600 mm 1.8 mm Q235 Steel Pre-Galvanized AS1577

* Specifications are indicative. Custom dimensions, materials, and finishes available. Contact us for a detailed datasheet.

Why Choose Sino East Steel Planks

Advantages of Our Steel Scaffolding Planks

Every plank leaving our factory is built to perform under real job-site conditions. Here is what sets Sino East steel planks apart from the rest.

⚔

High-Strength Steel

Formed from Q235 and Q345 structural steel plate, our planks deliver high load capacity with minimal deflection, ensuring stable working platforms under heavy foot traffic and material loads.

🛡

Standards Compliant

Manufactured and tested to BS1139, EN12811, and AS1577. Each batch undergoes deflection, slip resistance, and ultimate load testing in our in-house laboratory.

👣

Anti-Slip Surface

Embossed and perforated surface patterns provide reliable traction in wet, oily, and icy conditions, reducing slip hazards and improving worker safety on the platform.

🔧

Tool-Free Installation

Welded end hooks drop directly onto ledgers and transoms, enabling fast installation and dismantling without bolts or tools — saving labor time on every project.

🏭

Factory-Direct Value

Buying direct from our 65,000 m² Tianjin factory eliminates middleman markups. Competitive unit pricing on bulk and container orders.

🌍

Global Delivery

Experience exporting to 50+ countries across Europe, North America, the Middle East, and Southeast Asia. Full export documentation and door-to-door logistics.

Applications

Where Steel Scaffolding Planks Are Used

Our steel planks create safe working platforms across diverse construction and industrial applications worldwide.

🏗

Building Construction

Working platforms on facade, masonry, and painting scaffolding for residential and commercial buildings.

🌁

Industrial Plants

Maintenance and turnaround access platforms for refineries, power plants, and chemical facilities.

🚨

Bridge & Infrastructure

Access and formwork support platforms for bridges, viaducts, and civil engineering works.

🚧

Shipyards & Offshore

Galvanized planks for shipbuilding, dock maintenance, and offshore platform access scaffolding.

Manufacturing Process

How We Manufacture Steel Scaffolding Planks

From raw steel coil to certified finished plank — a controlled four-stage process ensures consistent quality on every batch.

Cutting & Forming

Steel plate is cut to length and cold-formed into the plank profile with reinforced edge flanges and anti-slip embossing using precision roll-forming equipment.

Welding Hooks

End hooks are precision jig-welded to the plank body by certified welders, ensuring consistent hook spacing and alignment for reliable ledger engagement.

Galvanizing

Planks are hot-dip galvanized to EN ISO 1461 or pre-galvanized, providing a uniform zinc coating that protects against corrosion for years of service.

Testing & Packing

Each batch undergoes deflection and load testing to EN12811. Approved planks are inspected, bundled, and palletized for export shipment.

FAQ

Steel Scaffolding Plank Frequently Asked Questions

Answers to the most common questions about our steel scaffolding planks, standards, and ordering process.

What standards do Sino East steel scaffolding planks comply with? +

Our steel scaffolding planks are manufactured and tested in compliance with BS1139 (British standard for metal scaffolding), EN12811 (European temporary works equipment standard), and AS1577 (Australian scaffold plank standard). Each batch undergoes deflection, slip resistance, and ultimate load testing in our in-house laboratory.

What is the difference between hook-on planks and walk-through planks? +

Hook-on planks feature welded steel hooks at both ends that drop directly onto the transom or ledger of frame and system scaffolding, allowing tool-free installation. Walk-through planks (also called catwalk planks) are designed to span the full bay width to create a continuous working platform, and may use hooks or flat ends depending on the scaffold system. Both types provide safe anti-slip working surfaces.

What widths and lengths are available for steel scaffolding planks? +

Standard widths range from 210mm to 500mm, with 240mm, 320mm, and 450mm being the most common. Standard lengths range from 1000mm to 4000mm, with 2000mm, 2500mm, and 3000mm popular for most frame scaffolding bays. Custom dimensions are available on request to match your specific scaffold system spacing.

What surface finish and anti-slip features do your planks have? +

Our planks feature an embossed or perforated anti-slip surface pattern for safe footing in wet and oily conditions. Surface finishes include hot-dip galvanized (best corrosion resistance for outdoor and marine use), electro-galvanized (economical for indoor or temporary use), and painted. Hot-dip galvanizing to EN ISO 1461 is recommended for long service life.

What is the load capacity of your steel scaffolding planks? +

Load capacity depends on plank width, length, and thickness. Our standard 320mm wide planks at 3.0mm thickness typically support a uniformly distributed load of 300kg per bay (Class 2 to EN12811) at 2.0m span. Heavy-duty planks can be engineered for Class 3 (600kg) or higher. Contact our engineering team with your loading requirements for a precise specification.

What is the minimum order quantity and lead time for steel planks? +

Minimum order quantity is typically 500 pieces per plank specification. Lead time is 20-30 days depending on order volume, finish requirements, and production schedule. For stock items, shipment can be arranged within 10 days. Contact us for a precise quote and delivery schedule based on your project requirements.

Get a Quote on Steel Scaffolding Planks Today

Tell us your plank types, dimensions, quantities, and finish requirements — our team provides a detailed quote with factory-direct pricing within 24 hours.

Request A Quote →

Steel Scaffolding Plank Specifications

SpecificationDetail
Widths240 mm, 320 mm, 400 mm, 500 mm (standard)
Lengths1.5 m, 2.0 m, 2.5 m, 3.0 m
Steel thickness2.0 – 3.0 mm galvanized steel plate
SurfaceAnti-slip embossed/diamond pattern, bent-up edges for strength
End hooksSpring lock or wedge lock, fully welded, for frame/cuplock/ringlock systems
MaterialQ235/Q345 steel, hot-dip galvanized EN ISO 1461
StandardsBS 1139, EN 12811 compliant
Working loadDesigned for 2 – 6 kN/m² per EN 12811 duty classes

Steel Scaffolding Plank FAQ

Why choose steel planks instead of timber scaffold boards?

Steel planks last 15-25 years versus 2-4 years for timber, are fireproof, rot-proof and splinter-free, and provide a consistent anti-slip surface. They are lighter to maintain, easier to clean, and meet stricter site safety requirements — which is why rental fleets and large contractors are switching from timber boards.

Which scaffold systems are these planks compatible with?

Our steel planks fit frame scaffolding, cuplock, ringlock and kwikstage systems — choose spring-lock or wedge-lock end hooks to match your system. If you are unsure which hook suits your scaffold, send us a photo or drawing and our engineers will confirm compatibility.

How much weight can a steel scaffold plank support?

Standard 320 mm wide planks spanning 1.5–2.0 m support working loads of 2–4 kN/m² in light and medium duty classes per EN 12811, with heavy-duty configurations engineered to 6 kN/m². Always follow the load table for your specific span and support spacing.

Are the planks hot-dip galvanized?

Yes — hot-dip galvanized to EN ISO 1461 (55+ microns), giving 15-25 years of corrosion protection inland and 10-15 years in coastal environments. The anti-slip surface remains effective for the full service life.

Why Choose Sino East Steel Group

Sino East Steel Group (Tianjin, China) is a CE EN1090 & ISO 3834-2 certified steel plank manufacturer with a 65,000 m² factory, exporting to 50+ countries across Europe, the Middle East, Australia and Africa. Every order ships with mill test certificates and batch traceability. For a quotation with your dimensions, hook type and quantity, email [email protected] or WhatsApp +86 186 2208 8833.
