Scaffolding Couplers

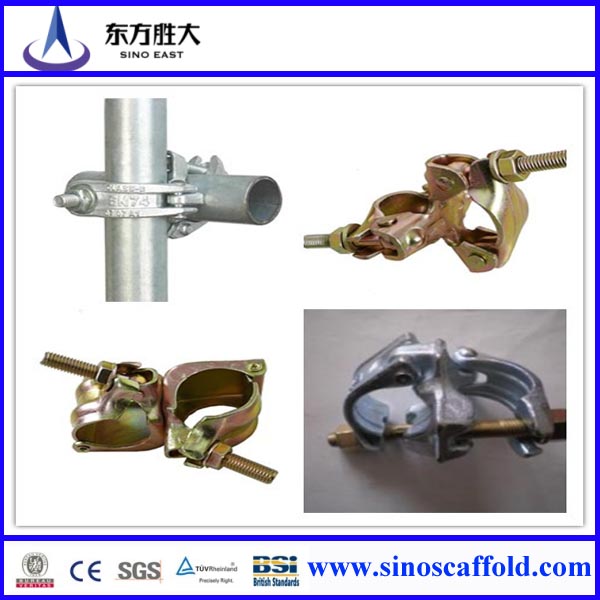

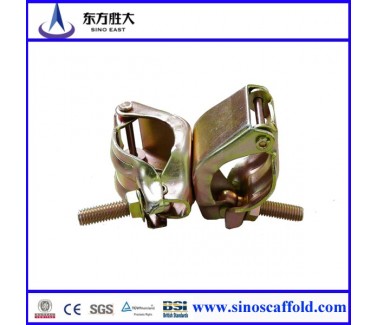

48.3mm Galvanized Scaffolding Double Coupler | EN74 Drop Forged & Pressed Steel
48.3mm × 48.3mm Galvanized Scaffolding Double Coupler | EN74 Right Angle Clamp
Our 48.3mm galvanized double coupler (right-angle clamp) is the most commonly used fitting in tube-and-coupler scaffolding. It creates a rigid 90° load-bearing connection between two 48.3mm OD scaffolding tubes — typically connecting ledgers to standards in the main scaffold frame.
Manufactured from Q235 steel, available in both drop forged (heavy duty) and pressed steel (economy) versions. Hot-dip galvanized finish ensures 20+ years corrosion resistance in outdoor environments. Fully compliant with EN74 Class B and BS1139 standards.
Technical Specifications
| Property | Drop Forged | Pressed Steel |
|---|---|---|
| Material | Q235 Forged Steel | Q235 Pressed Steel Plate |
| Tube Size | OD 48.3mm × 48.3mm | OD 48.3mm × 48.3mm |
| Weight | 1.00–1.10 kg | 0.58–0.65 kg |
| Working Slip Load | ≥ 9.0 kN | ≥ 6.1 kN |
| Standards | EN74 Class B / BS1139 | EN74 Class A / BS1139 |
| Surface Finish | HDG / Electro-Galv / Painted | HDG / Electro-Galv / Painted |
| T-Bolt | 1/2" × 88mm, Nut 21mm | M12 × 75mm |
| Best Application | Heavy duty, high-rise, industrial | Standard construction, residential |
Frequently Asked Questions About 48.3mm Galvanized Scaffolding Double Coupler | EN74 Drop Forged & Pressed Steel
Q: What is the minimum order quantity for 48.3mm Galvanized Scaffolding Double ...?
A: Standard MOQ is one 20ft container (approximately 25-28 tons). For trial orders, we can arrange LCL shipments starting from 1 ton with a small logistics premium. Contact us with your required specifications for a precise quotation.
Q: How long does delivery take for 48.3mm Galvanized Scaffolding Double ...?
A: Production lead time is 15-25 days after deposit confirmation for standard orders. Large quantity orders (10+ containers): 25-35 days. Sea freight transit time varies by destination port — typically 20-45 days. Contact us with your destination for an estimated delivery schedule.
Q: Can I get samples of 48.3mm Galvanized Scaffolding Double ... before placing a bulk order?
A: Yes. We provide free samples for existing stock items (you cover freight cost). For custom specifications, a sample fee applies which is fully deducted from your bulk order. Typical sample delivery: 3-5 working days after confirmation.
